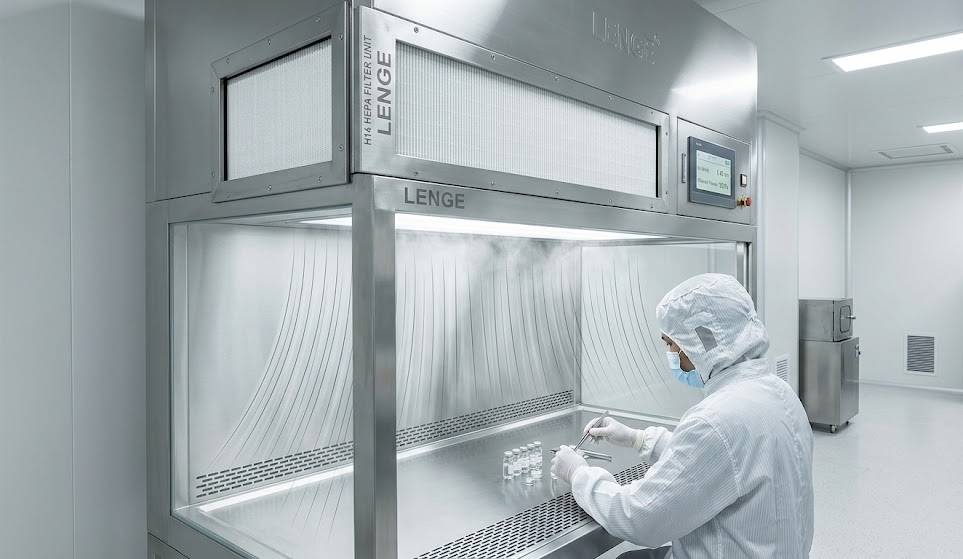

An air flow chamber is an essential equipment in cleanroom environments, designed to protect sterile products and sensitive processes from airborne contamination. LENGE Clean Room offers a comprehensive range of laminar airflow systems, trolleys, and work benches made from SUS304/316L stainless steel to meet Class A cleanliness requirements.
Air flow chambers create controlled unidirectional airflow that removes particles and microorganisms from work areas. They are widely used in pharmaceutical, biotechnology, and research laboratories. With features like HEPA gel-sealed filters, adjustable fan speeds, and built-in LED lights, these systems maintain sterile conditions while supporting operator safety and workflow efficiency.
This article explores the types, features, applications, and benefits of air flow chambers and laminar systems. It also includes technical specifications, design diagrams, and maintenance guidance to provide a complete understanding of these cleanroom solutions.
Introduction to Air Flow Chambers
Air flow chambers are enclosed or semi-enclosed clean air environments designed to control particle contamination. Their main function is to provide HEPA-filtered, unidirectional airflow over sensitive products and work areas.
Key aspects include:
- Preventing cross-contamination in sterile environments
- Supporting pharmaceutical, biotech, and medical device processes
- Protecting operators and products simultaneously
- Providing stable airflow with minimal turbulence
LENGE laminar airflow units ensure compliance with cLAF Class A cleanliness, making them suitable for high-precision sterile operations.
Types of Laminar Air Flow Systems
LENGE Clean Room provides several types of air flow chambers:
- Laminar Airflow System (Fixed) – Ceiling-mounted, offers Class A airflow over a work surface.
- Laminar Airflow Trolley (Mobile) – Portable, provides controlled airflow during product transfer.
- Laminar Airflow Work Bench – Bench-type unit for research and compounding applications.
|
Type |
Airflow |
Mobility |
Applications |
|
Fixed LAF |
Horizontal/Vertical |
Fixed |
Sterile compounding, pharma production |
|
LAF Trolley |
Horizontal/Vertical |
Portable |
Transfer between sterile areas |
|
LAF Work Bench |
Horizontal/Vertical |
Stationary |
R&D, testing, compounding |
Each system is designed with HEPA filters, stainless steel construction, and quiet operation for consistent cleanroom performance.
Laminar Airflow System Features
LENGE laminar airflow systems provide:
- SUS304/316L stainless steel construction for corrosion resistance
- HEPA gel-sealed filters to ensure maximum particle removal
- Adjustable fan speed for precise airflow control
- Built-in LED lighting for clear visibility of work areas
- Differential pressure gauges to monitor filter condition
- Side or ceiling air return options to suit installation requirements
Rated airflow velocity is typically 0.45 m/s ±20%, meeting strict Class A cleanroom standards.
Laminar Airflow Trolleys
Laminar airflow trolleys are mobile chambers designed to transfer sterile products between clean areas. Features include:
- Independent power supply for continuous airflow
- HEPA gel-sealed filters for Class A cleanliness
- Pivoting castors with brakes for mobility and safety
- DOP test port for filter integrity checks
|
Model |
Work Size (L×W×H mm) |
Air Velocity (m/s) |
Clean Class |
Power (kW) |
|
LUFT8-072058 |
720×580×750 |
0.45±20% |
Class A |
0.4 |
|
LUFT10-092058 |
920×580×750 |
0.40 |
Class A |
0.4 |
|
LUFT14-112068 |
1120×680×750 |
0.50 |
Class A |
0.5 |
Trolleys maintain sterile airflow during transport, reducing contamination risks.
Laminar Airflow Work Benches
Work benches offer a dedicated sterile workspace. Key features:
- Single or double-sided vertical/horizontal airflow
- Built-in LED lights for clarity
- Prefilter extends HEPA filter life
- Optional UV disinfection for surface sterilization
- Low noise and low-vibration fan/filter modules
|
Model |
Inner Size (W×D×H mm) |
Air Velocity (m/s) |
Cleanliness |
HEPA Filter |
|
LVCW09-081070 |
810×700×550 |
0.45±20% |
Class A |
720×610×93×1 |
|
LVCW15-130070 |
1300×700×550 |
0.45±20% |
Class A |
590×610×93×2 |
|
LVCW06-082048 |
820×480×600 |
0.45±20% |
Class A |
650×540×93×1 |
Benches support R&D, compounding pharmacies, and inspection workflows.
Advantages of Air Flow Chambers
Air flow chambers offer multiple benefits:
- Sterile environment protection – prevents particle contamination
- Controlled unidirectional airflow – shields products from airborne hazards
- Compliance with cleanroom standards – supports ISO 14644-1 and GMP
- Flexible design – fixed or portable solutions for diverse applications
- Energy efficiency – adjustable fan speeds and reduced flow modes
These features make air flow chambers indispensable in pharmaceutical and research applications.
Airflow Distribution and Control
Proper airflow is critical for cleanroom efficiency:
- Unidirectional airflow minimizes turbulence and contamination
- Movable uniform membrane ensures evenly distributed wind speed
- Differential pressure monitoring ensures filter efficiency
- Side or ceiling returns allow customization for space requirements
These controls maintain consistent Class A air quality for sensitive operations.
Material and Construction
LENGE air flow chambers are constructed from SUS304/316L stainless steel:
- Corrosion-resistant and durable
- Smooth surfaces reduce microbial growth
- Welded seams minimize particle trapping
- Optional UV light for sterilization
- Quiet operation for better work focus
Robust construction ensures longevity and maintains sterile standards.
Applications in Pharmaceutical Industry
Air flow chambers are widely used in:
- Aseptic processing – sterile drug preparation
- Compounding pharmacies – personalized medicine production
- Research labs – biotechnology and nanotechnology studies
- Sterile filling lines – pharmaceuticals and vaccines
- Electronics and food – dust-sensitive production processes
Their precise airflow safeguards product integrity and regulatory compliance.
Maintenance Guidelines
To maintain peak performance:
- Replace prefilters and HEPA filters regularly
- Clean stainless steel surfaces frequently
- Check fan speed and airflow uniformity
- Inspect UV disinfection systems (if installed)
- Perform differential pressure monitoring
Regular maintenance ensures long-term sterility and equipment efficiency.
Real-World Case Studies
LENGE air flow chambers have been successfully deployed in:
- Vaccine manufacturing facilities
- Biotech research laboratories
- Pharmaceutical packaging and inspection lines
- Hospitals and sterile compounding centers
Case studies show reduced contamination risk, improved product safety, and efficient workflows.
Conclusion
Air flow chambers and laminar airflow systems are essential for cleanroom operations. LENGE Clean Room provides fixed, portable trolleys, and work benches with HEPA filtration, stainless steel construction, and precise airflow control.
These systems protect sterile products, maintain regulatory compliance, and enhance operational efficiency in pharmaceutical, biotech, and research environments.
Frequently Asked Questions
What is an air flow chamber?
An air flow chamber is a cleanroom unit designed to provide HEPA-filtered, unidirectional airflow. It protects sterile products and sensitive processes from airborne contamination. LENGE Clean Room air flow chambers support Class A cleanliness and ensure both operator safety and product integrity.
How does laminar airflow work?
Laminar airflow delivers uniform, unidirectional air over work surfaces. This continuous airflow sweeps away particles and microorganisms, preventing contamination. HEPA filters and precise fan control ensure consistent Class A cleanroom conditions for pharmaceutical, biotech, and research operations.
Can air flow trolleys maintain sterile conditions?
Yes, LENGE laminar airflow trolleys are mobile units with independent HEPA filtration. They maintain Class A airflow during transport between clean areas. This prevents contamination while ensuring safe handling of sterile products.
What materials are used in laminar airflow units?
LENGE air flow chambers use SUS304 or SUS316L stainless steel. These materials are corrosion-resistant, durable, and easy to clean. Smooth welded surfaces reduce microbial growth and ensure GMP-compliant sterilization.
How often should HEPA filters be replaced?
HEPA filters should be replaced based on differential pressure readings and airflow performance. Regular maintenance ensures contamination-free conditions. LENGE recommends scheduled monitoring to maintain Class A cleanroom standards and consistent airflow efficiency.
What industries use air flow chambers?
Air flow chambers are used in pharmaceutical manufacturing, biotechnology labs, R&D facilities, compounding pharmacies, electronics production, and food processing. Any industry requiring sterile, particle-free environments benefits from laminar airflow systems. .
What are the benefits of laminar airflow work benches?
Laminar airflow work benches provide HEPA-filtered sterile airflow over work surfaces. They reduce contamination risk, improve operator efficiency, and support GMP compliance. Built-in LED lighting, adjustable fan speeds, and optional UV sterilization enhance safety and productivity in cleanroom environments.
