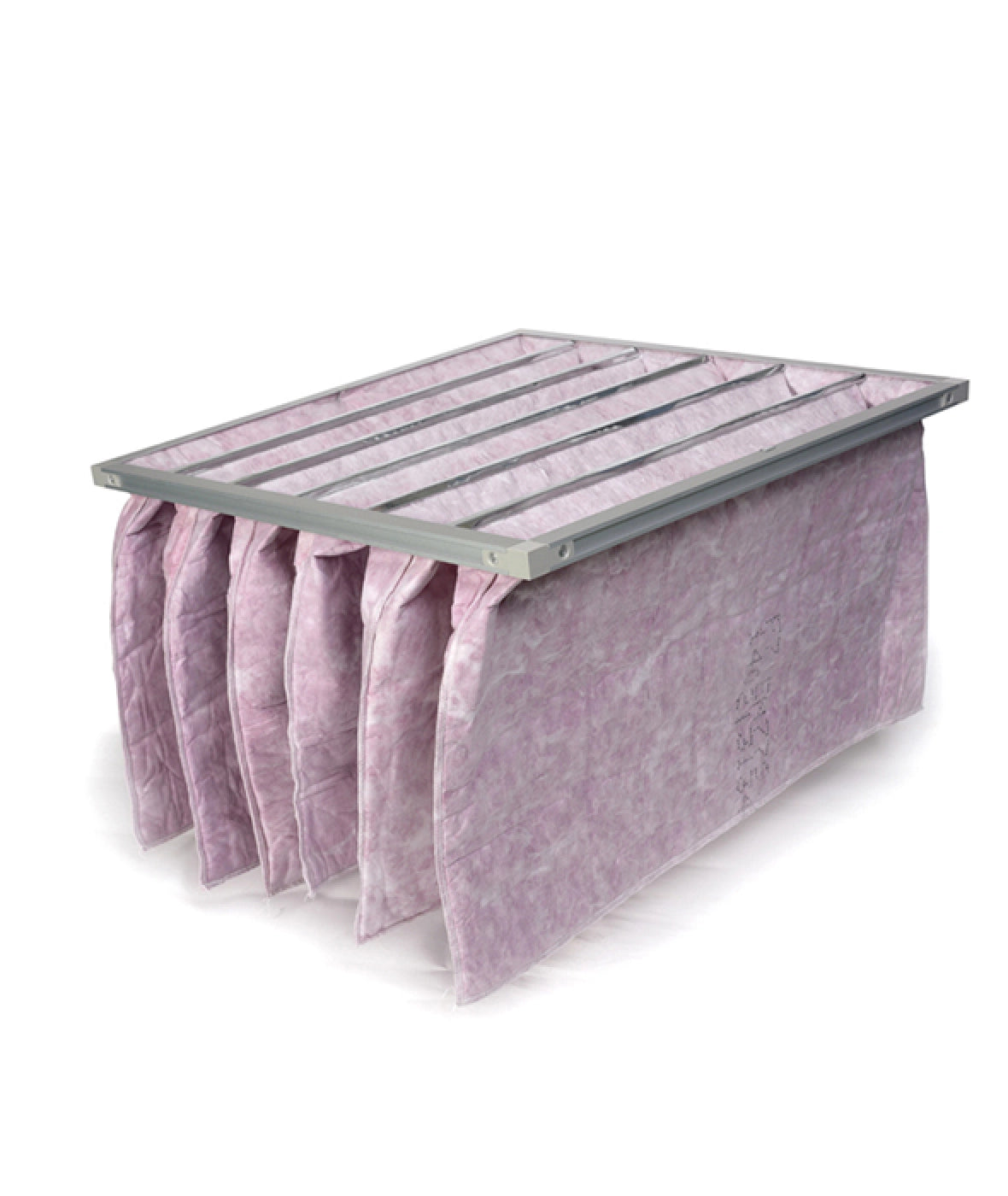

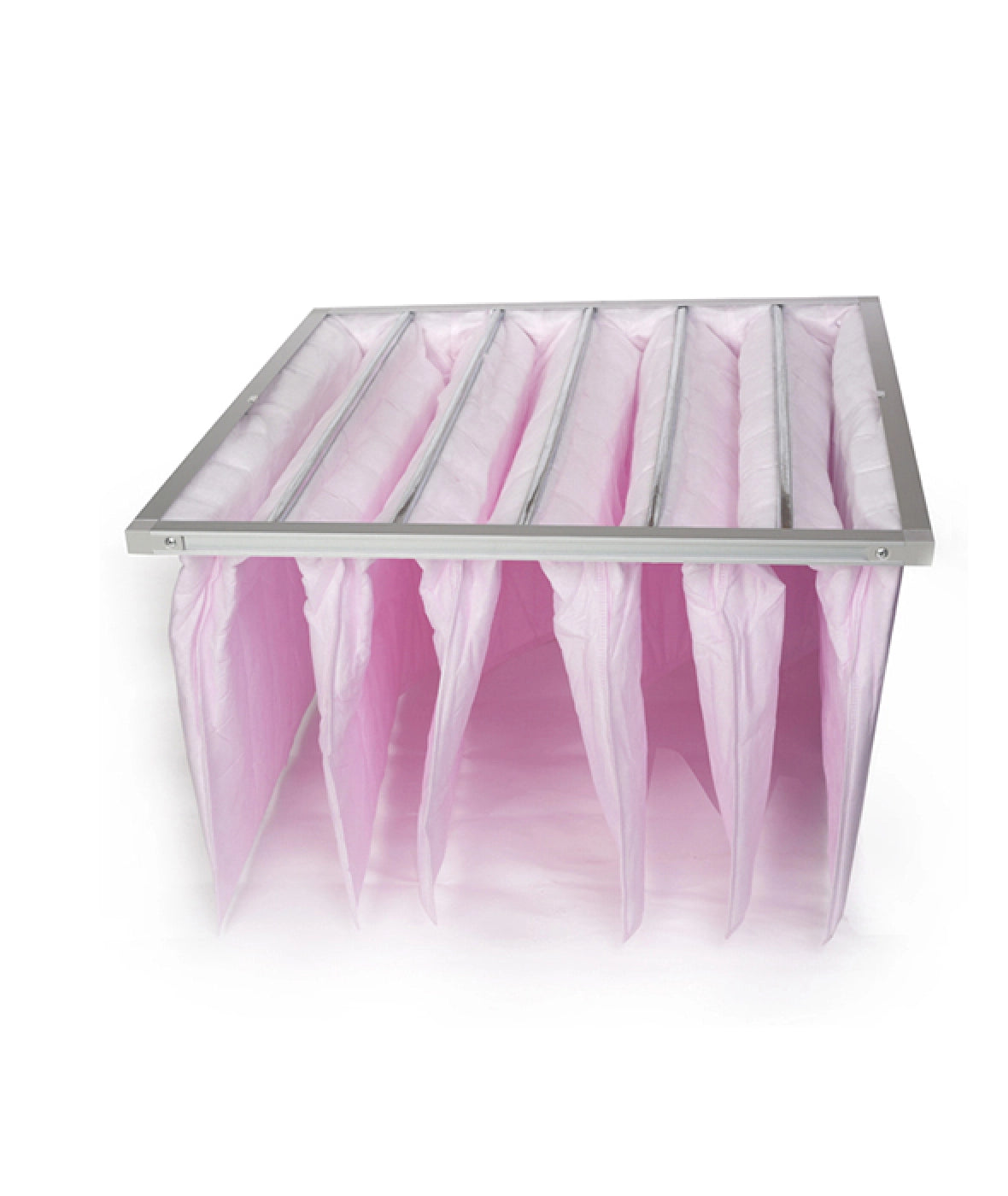

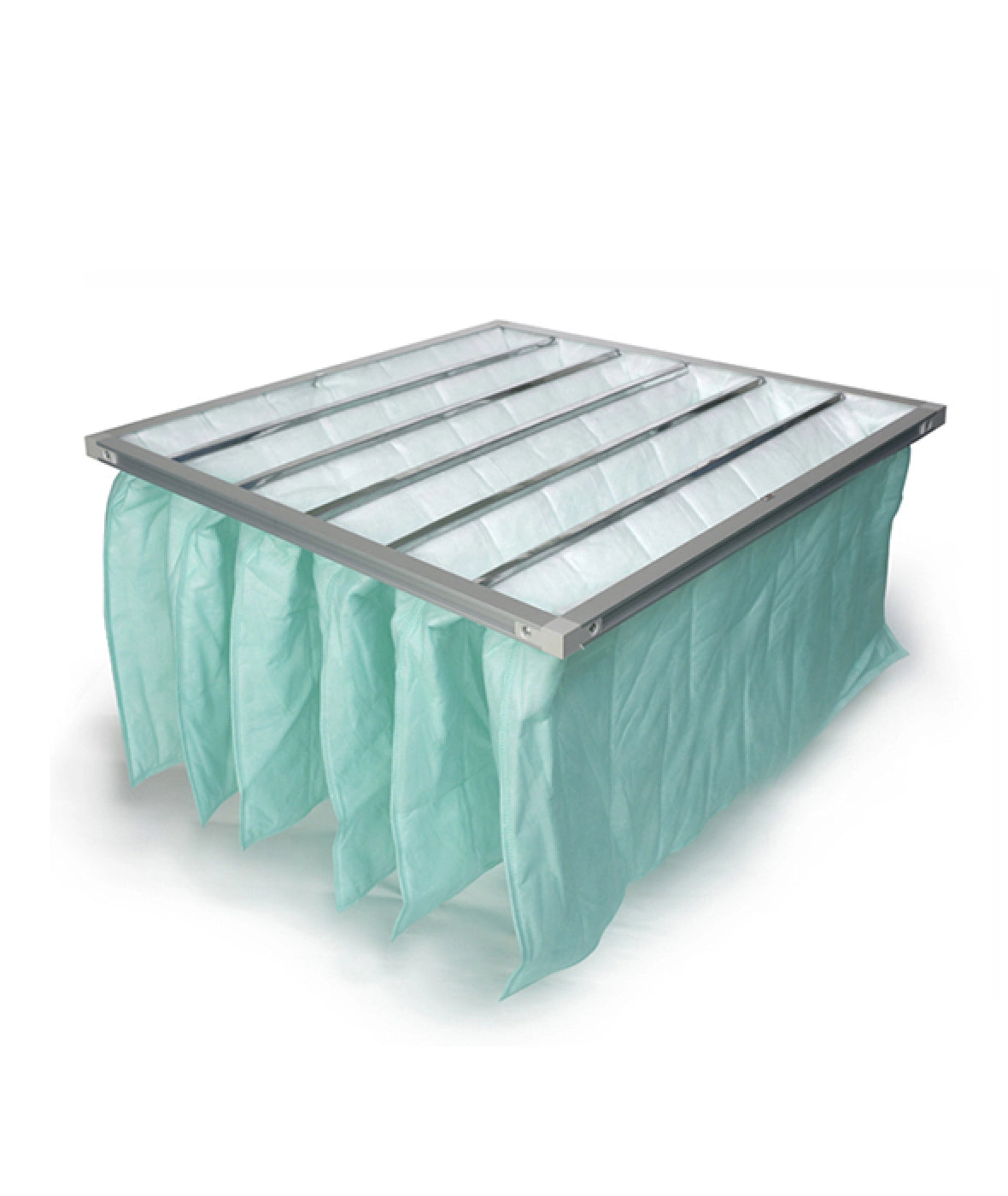

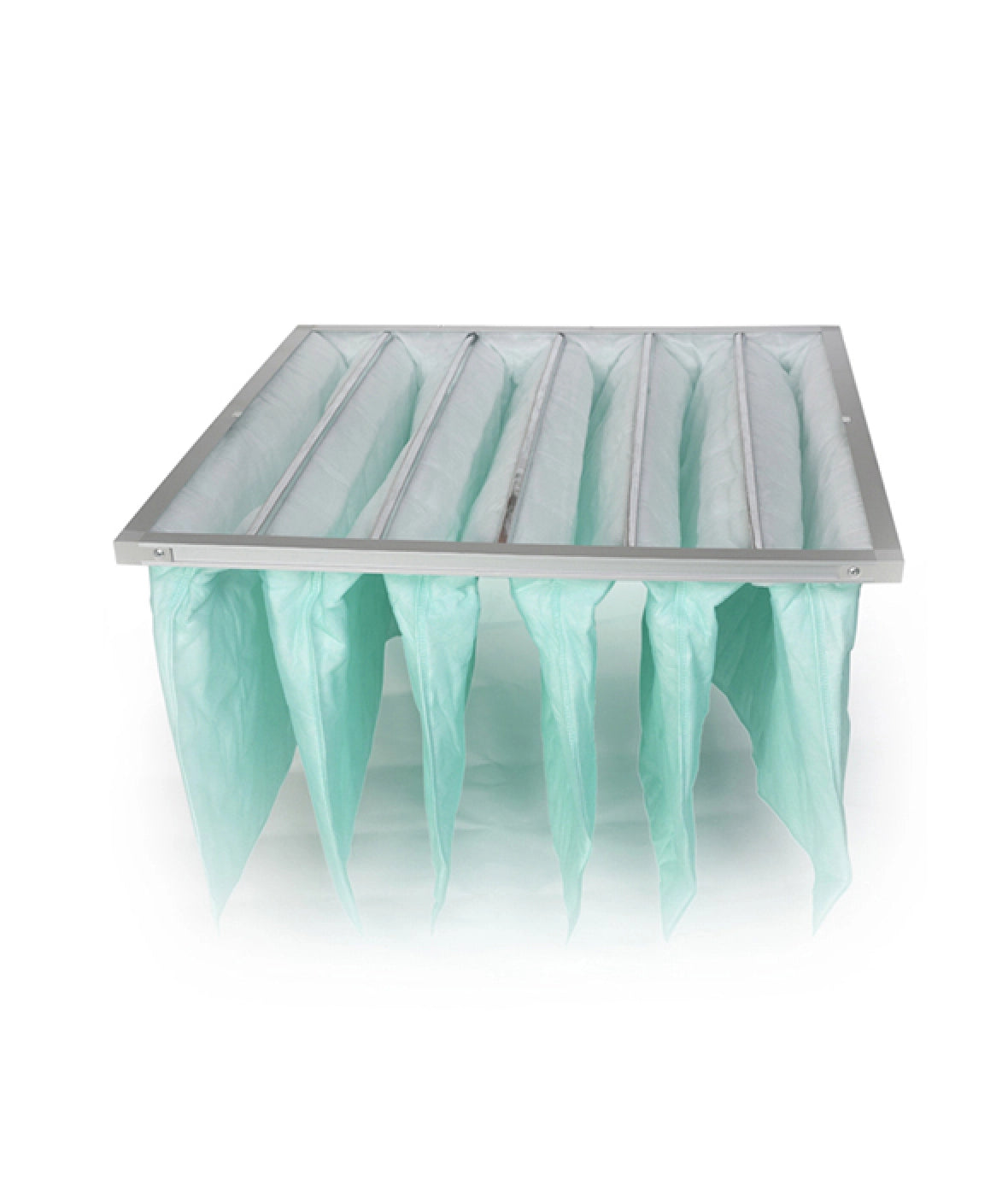

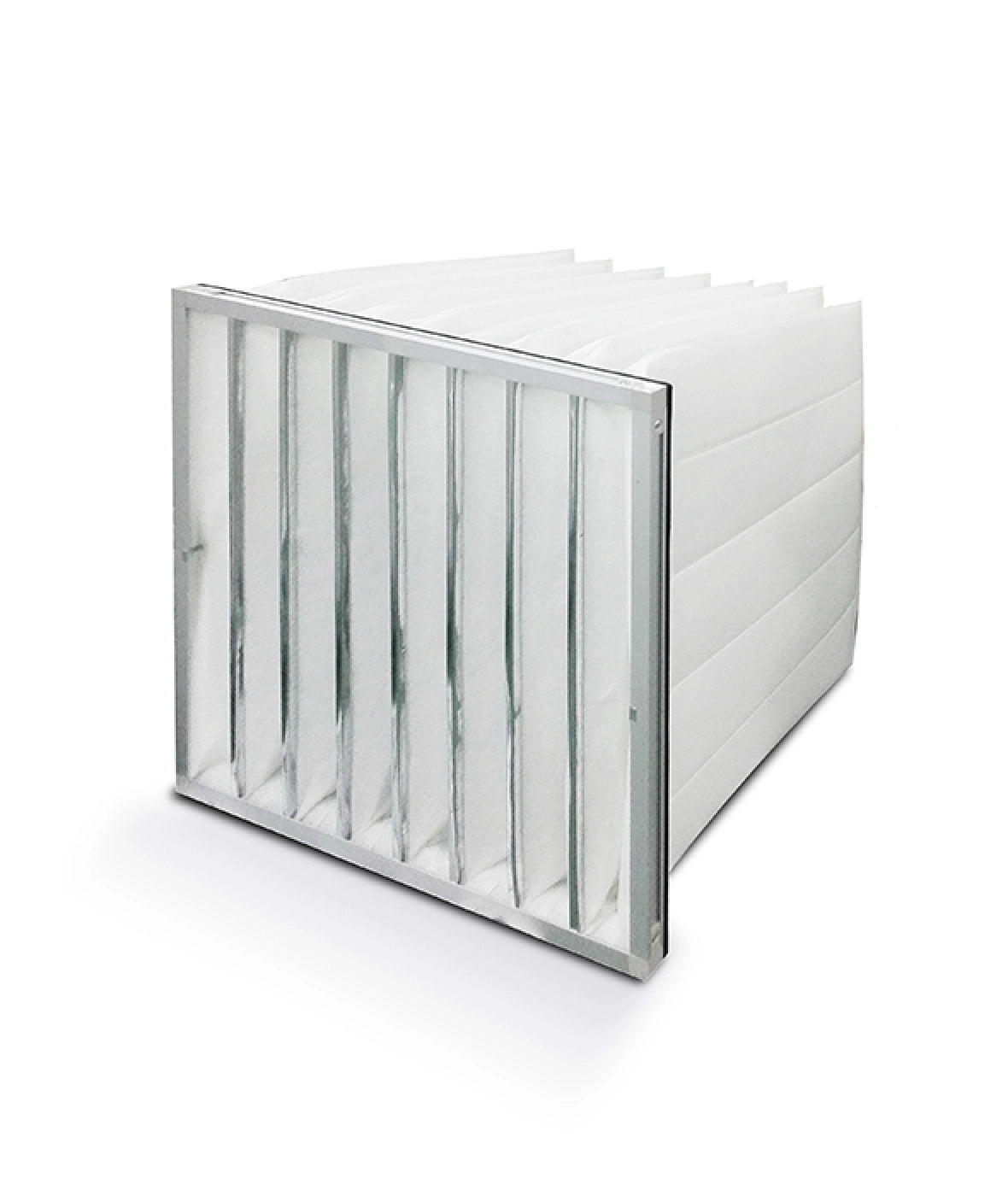

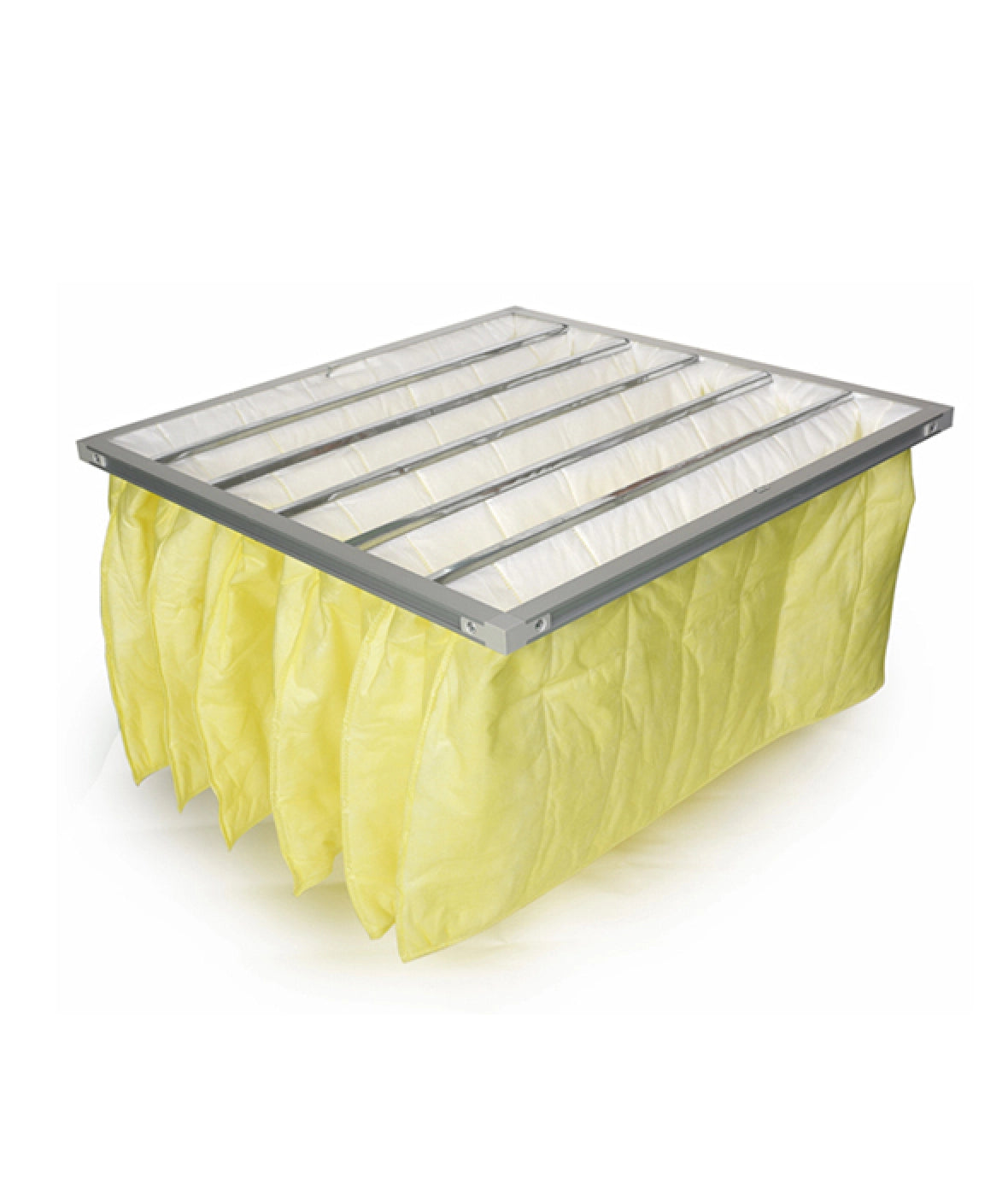

Bag Filter

¥0.00 Sold out
Frame:
Galvanized steel/ Aluminum
Filter Media:
PP/PET complex fibre
Operation Condition:
Max 100%RH, 60 ℃
Filter Class:
G4/M5/M6/F7/F8/F9/EN779

· Bag structure to increase the filter area.
· German ultrasonic filter bag production line, a variety of welding procedures to meet the welding requirements of different filter materials.

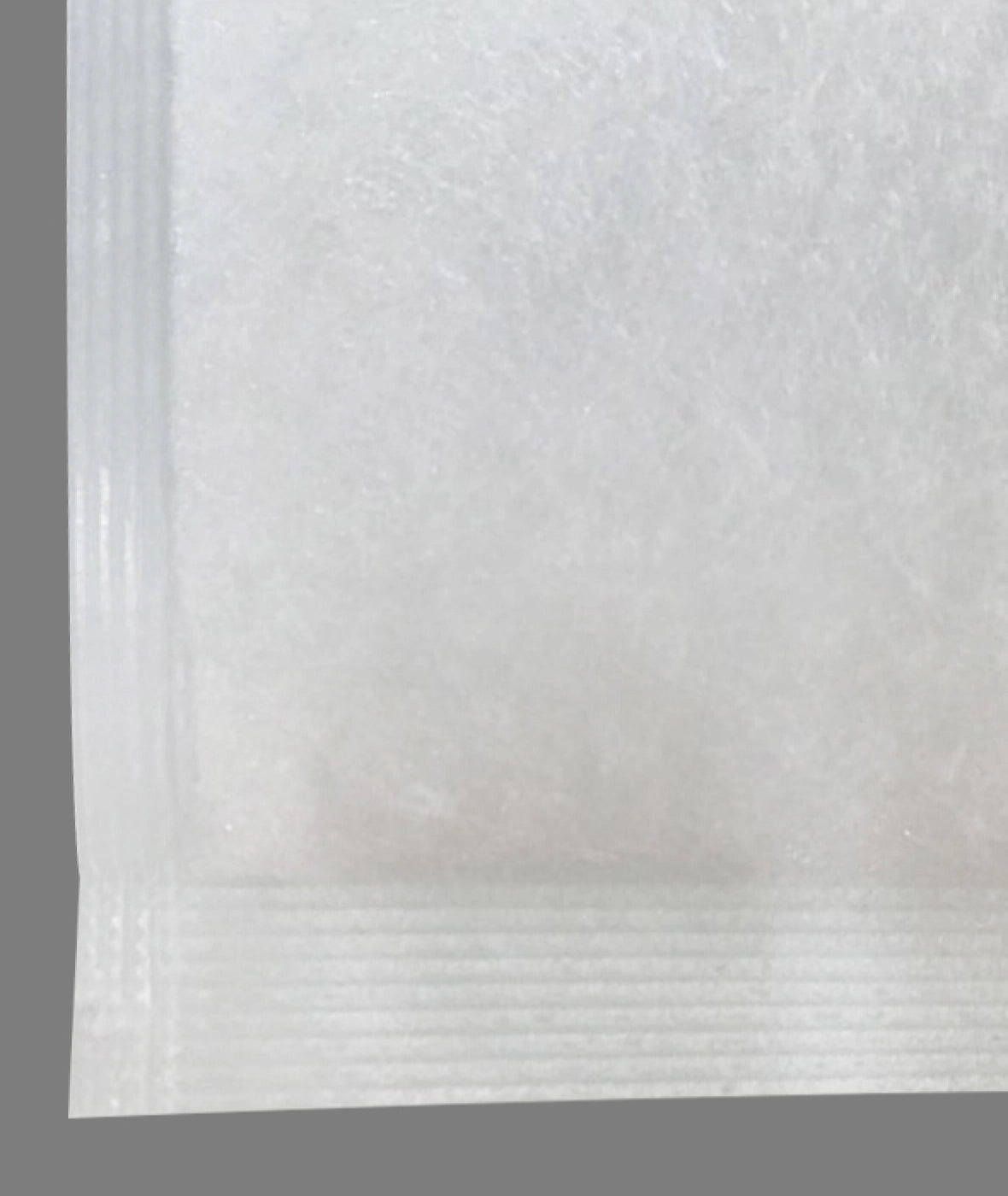

· Filter bag linear welding, high strength, prevent leakage risk.
· High consistency of filter bag parameters toimprove product stability.

Get a Free Quote

Standard Size And Parameter：

Model Overall size L×W×D Rated Airflow（m³/h） Initial pressure drop（Pa）
/ / / Arrestance（G4） 90%≤A Efficiency（M6） 60%≤E<80% Efficiency（F7） 85%≤E<90% Efficiency（F8） 90%≤E<95% Efficiency（F9） 95%≤E
6DAI592.592-380 592×592×380×6 2400 40 60 100 120 140
DAI592.592-380 287×592×380×3 1200
6DAI592.592-480 592×592×480×6 3000
DAI592.592-480 287×592×480×3 1500
6DAI592.592-560 592×592×560×6 3400
DAI592.592-560 287×592×560×3 1700
8DAI592.592-560 592×592×560×8 4500
DAI278.592-560 287×592×560×4 2250
8DAI592.592-760 592×592×760×8 5000
DAI592.592-940 592×592×940×8 6000
6DAI492.492-560 492×492×560×6 2500
Note:We can also produce non-standard filters of 150≤W≤1184，150≤H≤600，300≤D≤940.
