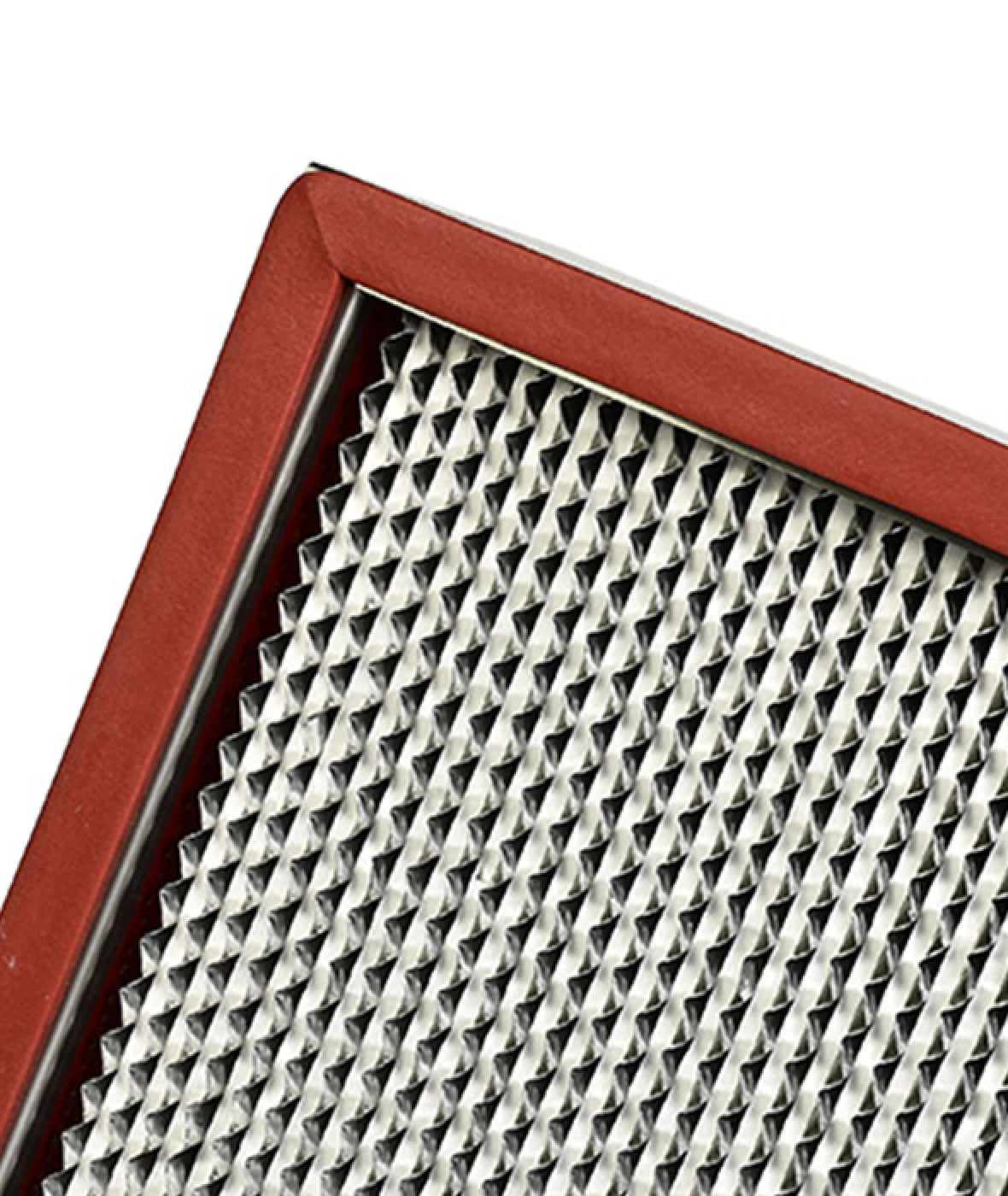

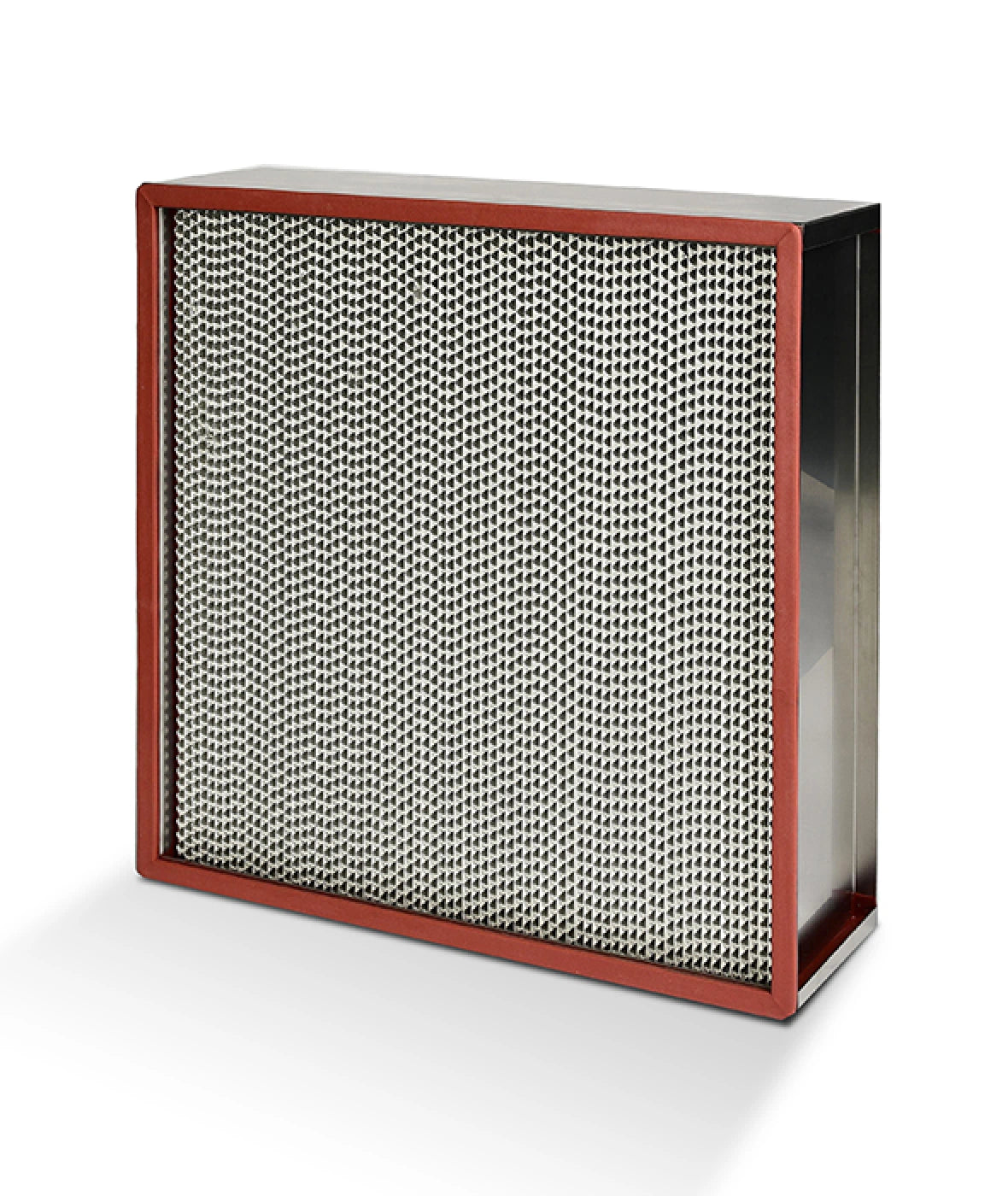

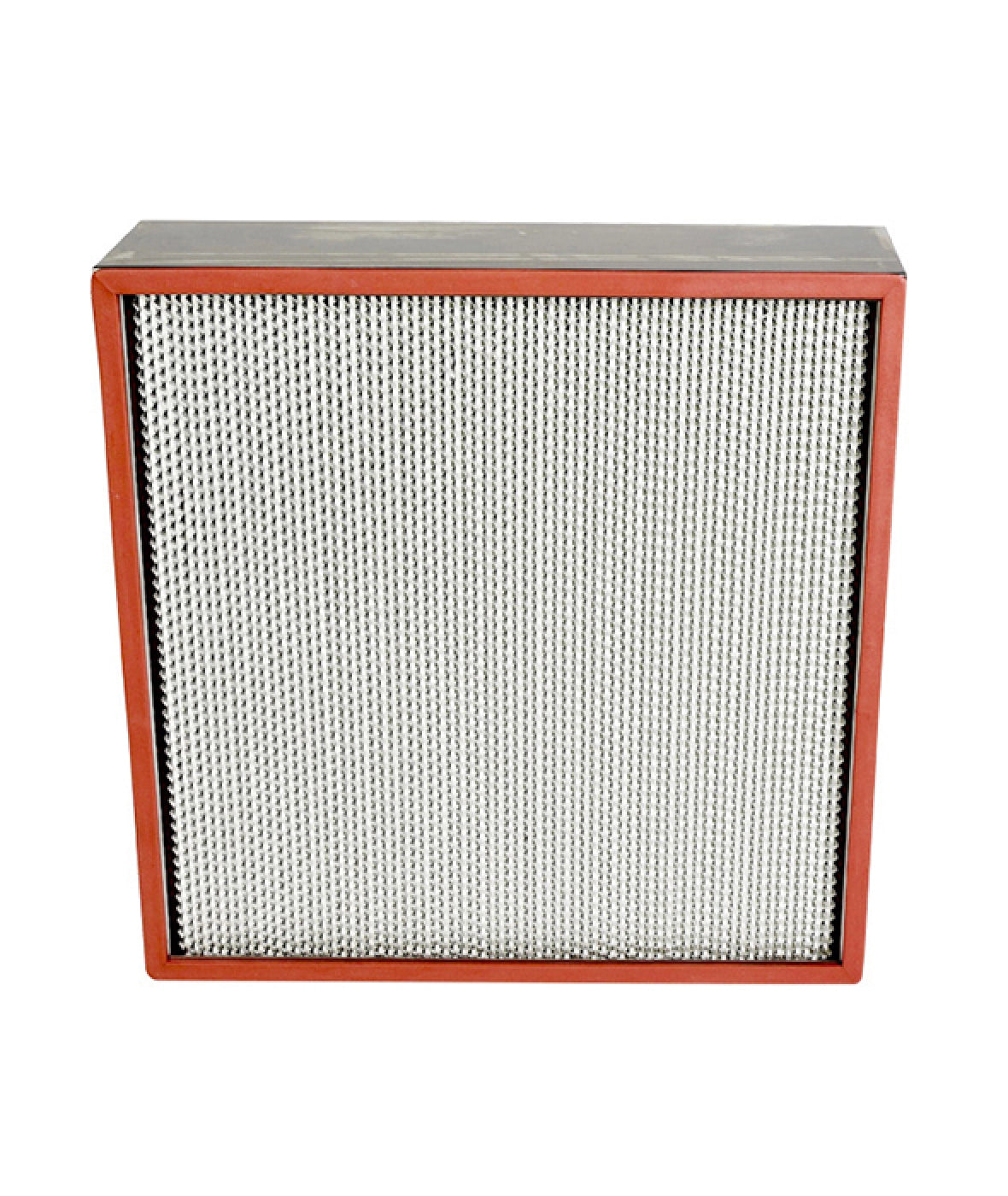

High Temperature Separator HEPA Filter

¥0.00 Sold out
FRAME:
Stainless steel
SPACERS:
Aluminum foil
FILTER MEDIA:
Glass fibre
GASKET:
High-temp resistant silica seal strip
OPERATION CONDITIONS:
Max 80%RH
FILTER CLASS:
H14/EN1822

·Ambient air supply over 100℃ and 250℃, 280℃ are optional.
·Ultra-clean oven, tunnel sterilization and other purification equipment.
High temperature filter paper, high temperature does not fall off the fiber, does not decompose.
·Aluminum foil spacing, silicone rubber seal, stainless steel frame, meet the temperature requirements.
·The reflexive border is equipped with stiffeners to meet the strength requirements.

Get a Free Quote

Standard Size And Parameter：

Model Overall size
L×W×D		 Rated airflow
（m3/h）		 Initial Resistance
（Pa）		 Final Resistance
（Pa）		 Efficiency
@MPPS
NGB484.484-150H14 484×484×150 600 220 450 99.995%≤E<99.9995%
NGB610.610-150H14 610×610×150 1000
NGB610.610-180H14 610×610×180 1200
NGB484.484-220H14 484×484×220 1000
NGB610.610-220H14 610×610×220 1500
NGB610.610-292H14 610×610×292 2000
Note:We can also produce non-standard filters of 150≤L≤1260，150≤W≤740，70≤D≤292.

Characteristics & Features:

Sterilization Applications

A01

Ultra-clean oven, tunnel sterilization and other purification equipment.

Heat-resistance

A02

High temperature filter paper, high temperature does not fall off the fiber, does not decompose.

Thermal-Grade Materials

A03

Aluminum foil spacing, silicone rubber seal, stainless steel frame, meet the temperature requirements.

Reinforced Edges

A04

The reflexive border is equipped with stiffeners to meet the strength requirements.
