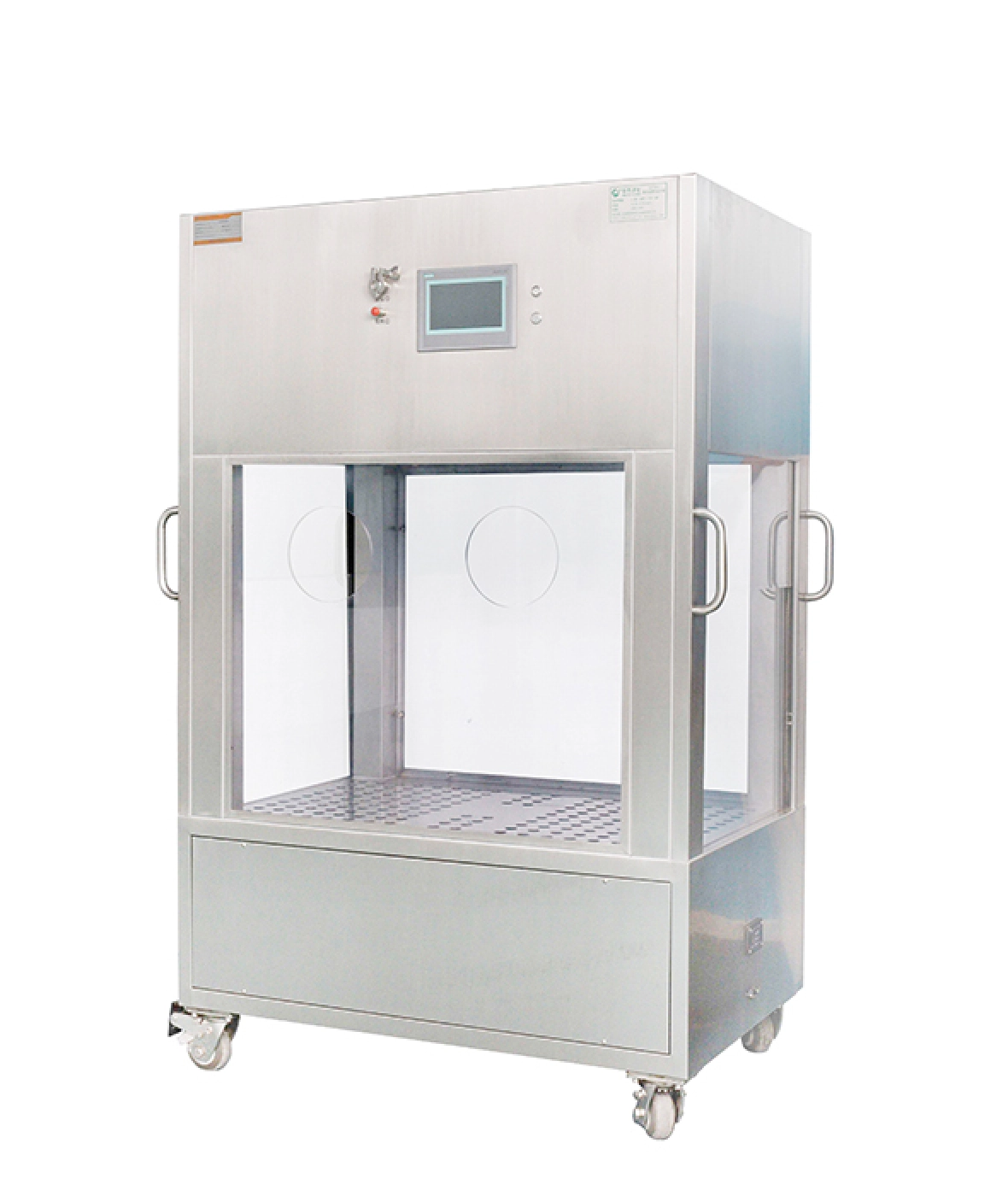

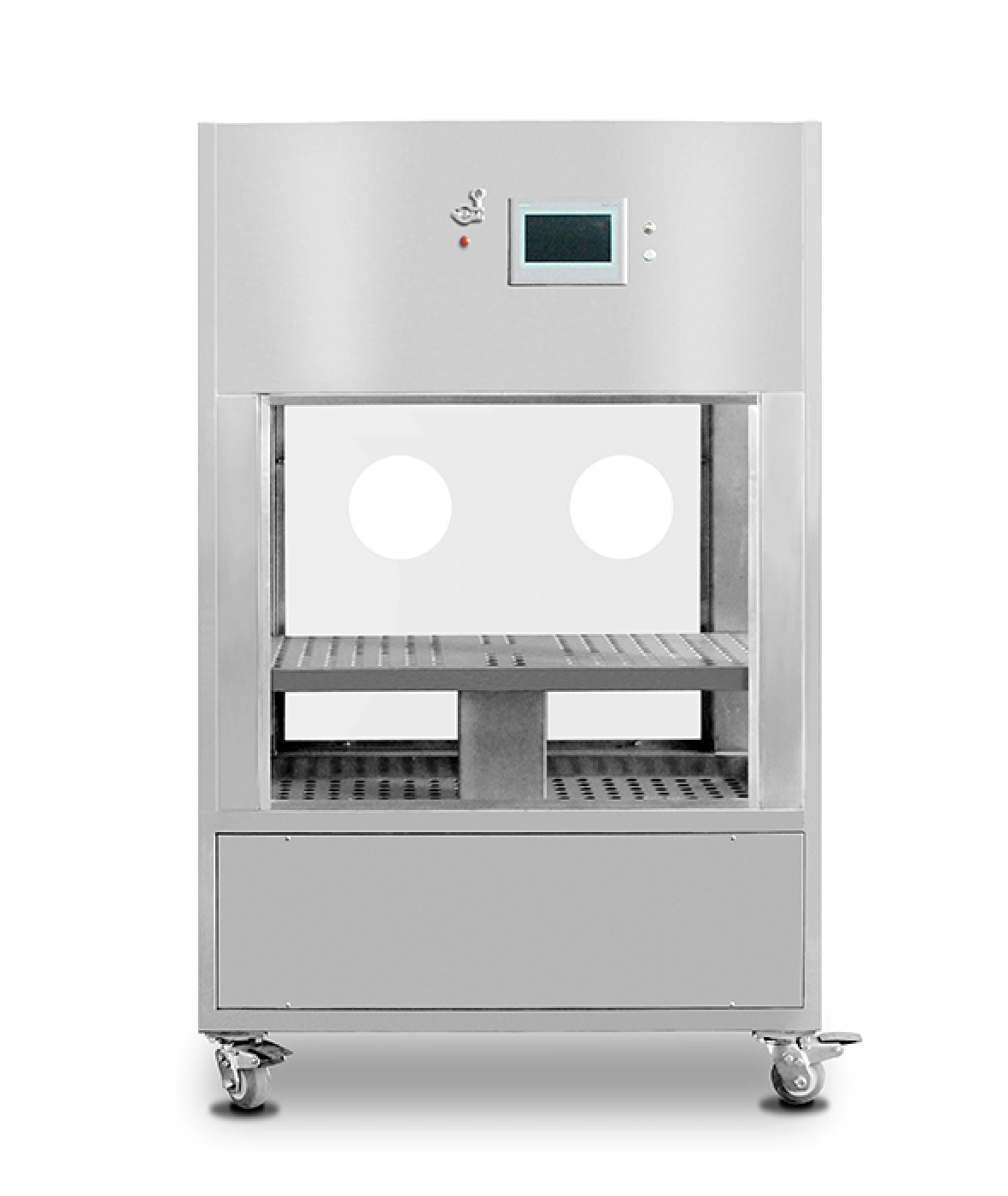

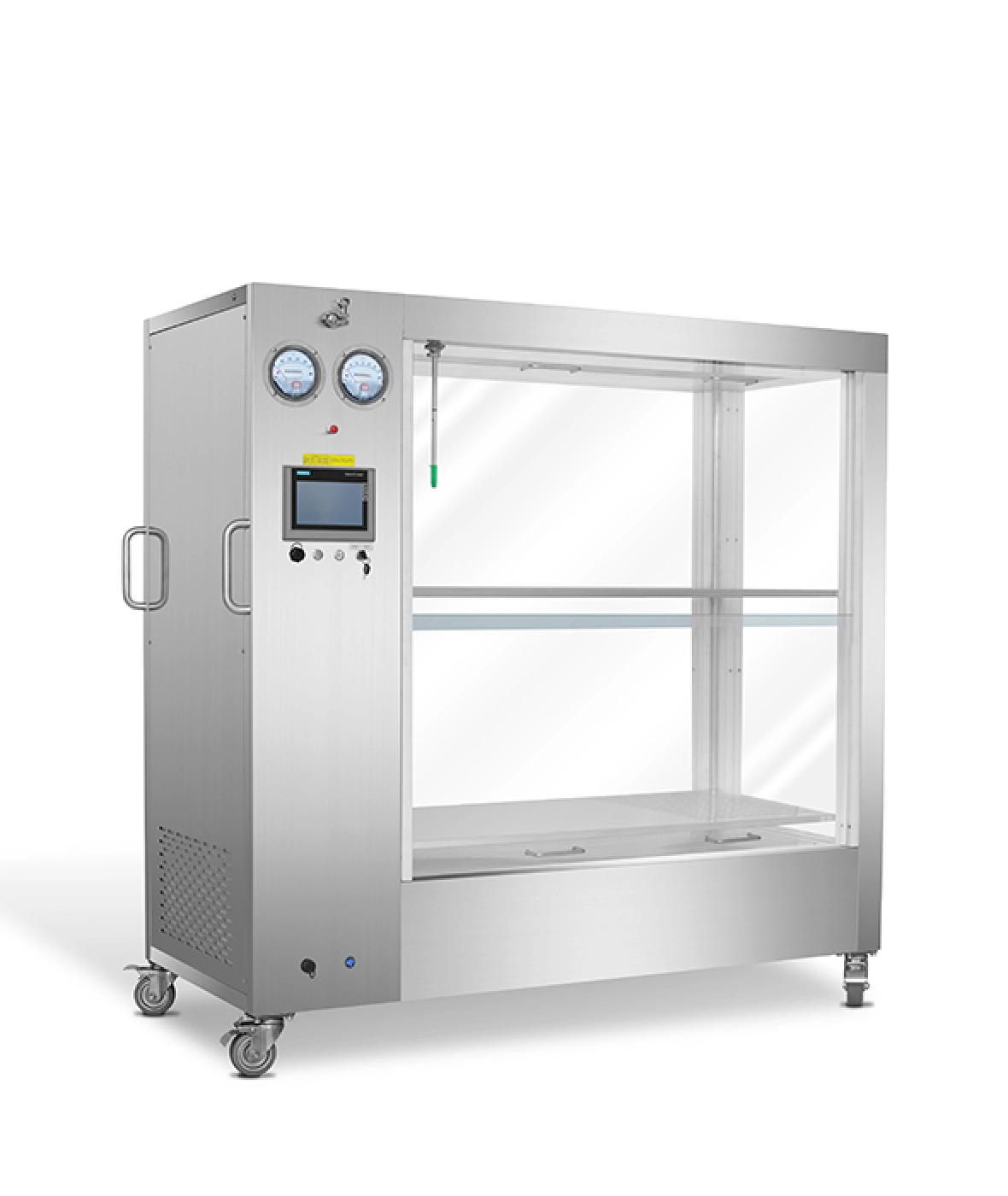

Laminar Airflow Trolley

¥0.00 Sold out
Material:
SUS 304/316 stainless steel
Cleanliness CLASS:
Class A
Noise:
65~75 dB
Filter Module:
Panel filter,Gel HEPA filter
Power Supply:
220V,50Hz
Certification:
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018

Laminar Flow Horizontal or Vertical Trolleys are used for the storage and the transfer of products that are sensitive to contamination, between two classified areas, generally separated by autoclaves. The trolleys are fitted with an independent power supply which keeps the laminar flow constant at any time.

Get a Free Quote

Standard Size and Parameters:

Model Outer Size Inner Size Pstream Rated air velocity Working area clean class Power
/ W×D×H W×D×H (m/s) / （kw）
LUFT8-072058 800×600×1800 720×580×750 0.45±20% Class A 0.4
LUFT10-092058 1000×600×1800 920×580×750 0.4
LUFT14-112068 1200×700×1800 1120×680×750 0.5
Note: specifications listed in below table are only for customers' reference. It is mostly designed and manufactured according to customers' URS.
01

Product Schematic Diagram:

Airflow Direction
Drawing of Structure

Technical Specification:

A01

Housing: Body Structure Fully Made In Stainless Steel SUS304 Press-Bent Metal Sheets.

A02

Filter: G4 Pre-Filter And H14 Hepa Filter

A03

Ventilation provided by energy efficiency low power consumption motor blower.

A04

Power Supply: Dry Battery UPS Recovery Pack With Theoretical Battery Duration Of 2-4 Hours Starting From Full Charge Status.

A05

DOP Test Port At Upstream Of Hepa Filter To Personnel For Carrying Out The Hepa Filter Integrity Test.

A06

Mobility: Pivoting (360°) Castors With Brakes.

Characteristics & Features:

Aseptic Transfer

A01

Product transfers under aseptic conditions.

Unidirectional Airflow

A02

Unidirectional flow; vertical or horizontal.

HEPA Gel Seal

A03

HEPA gel sealed design.

Laminar Airflow Trolley

Safeguarding Pharmaceutical Processes and Products

Pharmaceutical manufacturing hinges on sterility. Laminar Airflow Systems (LAF) are game-changers, providing controlled airflow to eliminate airborne contaminants and ensure drug safety and efficacy.

Protecting Sterile Products

For aseptic processing, LAF are vital. Their unidirectional airflow acts as a shield, repelling airborne contaminants and safeguarding the sterility of pharmaceuticals and medical devices.

Compounding Pharmacies

LAF are a pharmacist's secret weapon in compounding. The clean airflow prevents mix-ups and contamination, guaranteeing safe, personalized medications.

Research and Development

LAF are research partners in pharma, ensuring pristine conditions for experiments. Their controlled airflow safeguards results by eliminating microscopic contaminants, especially crucial in biotechnology and nanotechnology.

Pharmaceutical Manufacturing

From raw materials to final packaging, LAF are guardians in pharma manufacturing. Their controlled airflow ensures purity and consistency by preventing contamination between batches.
