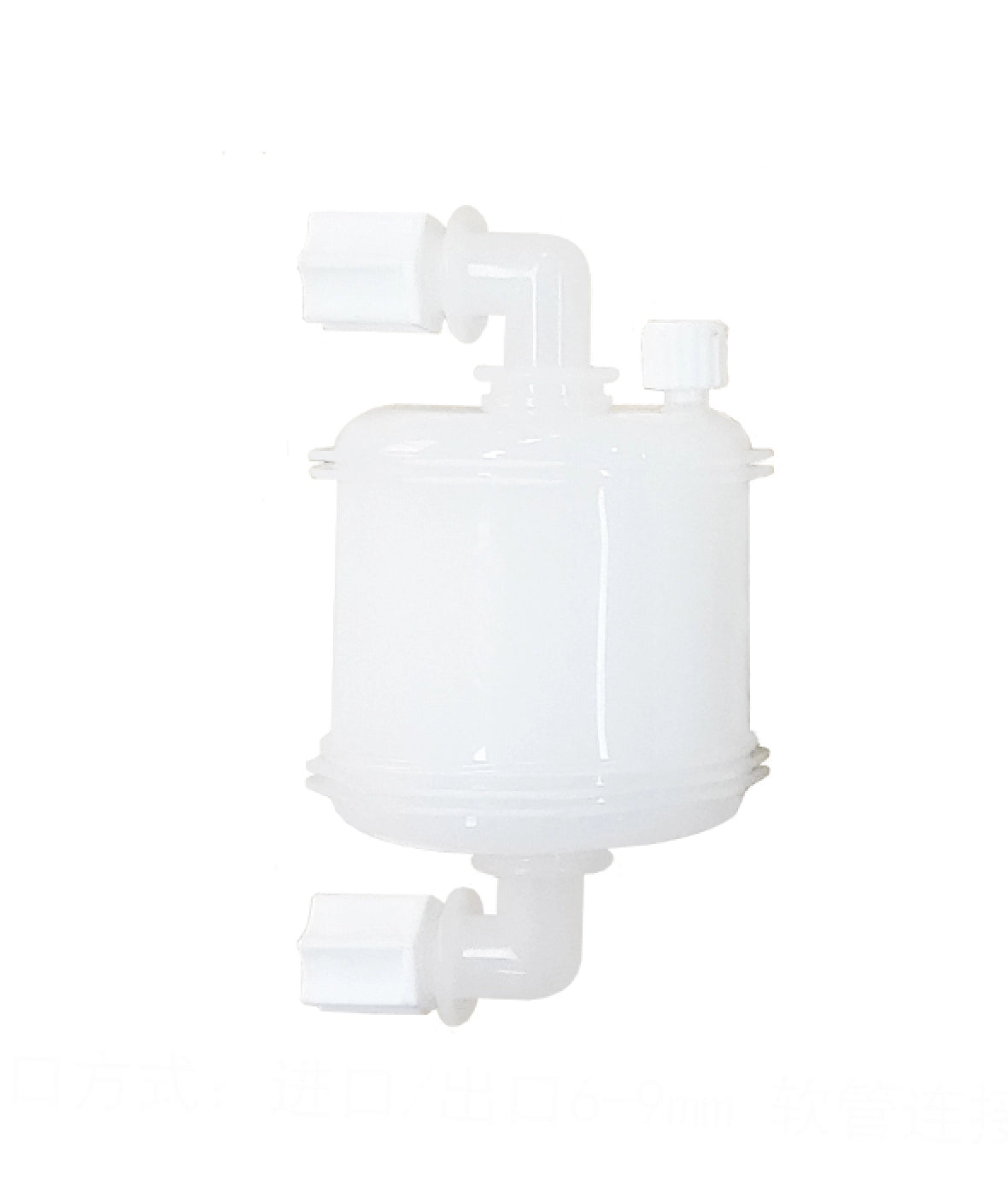

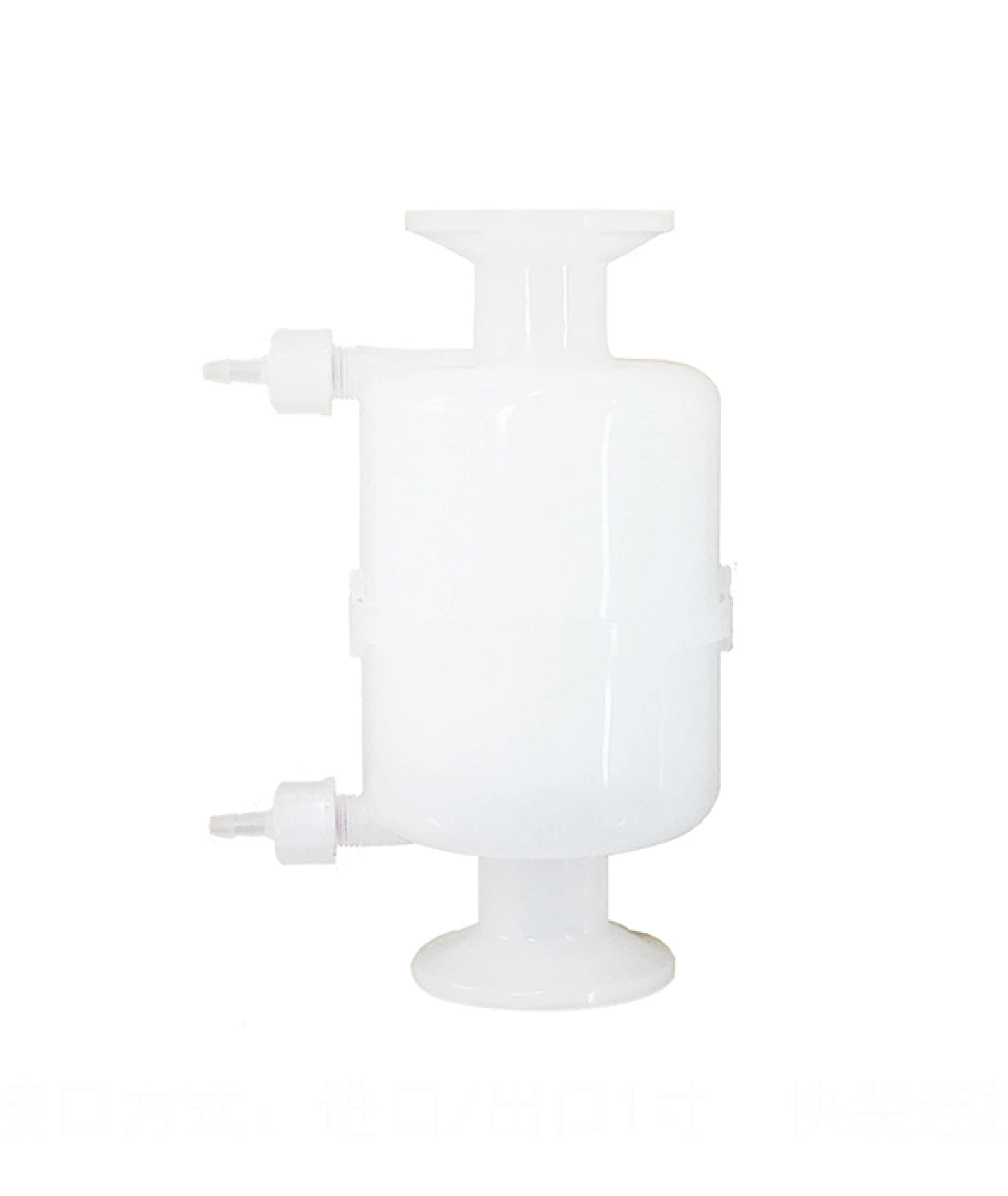

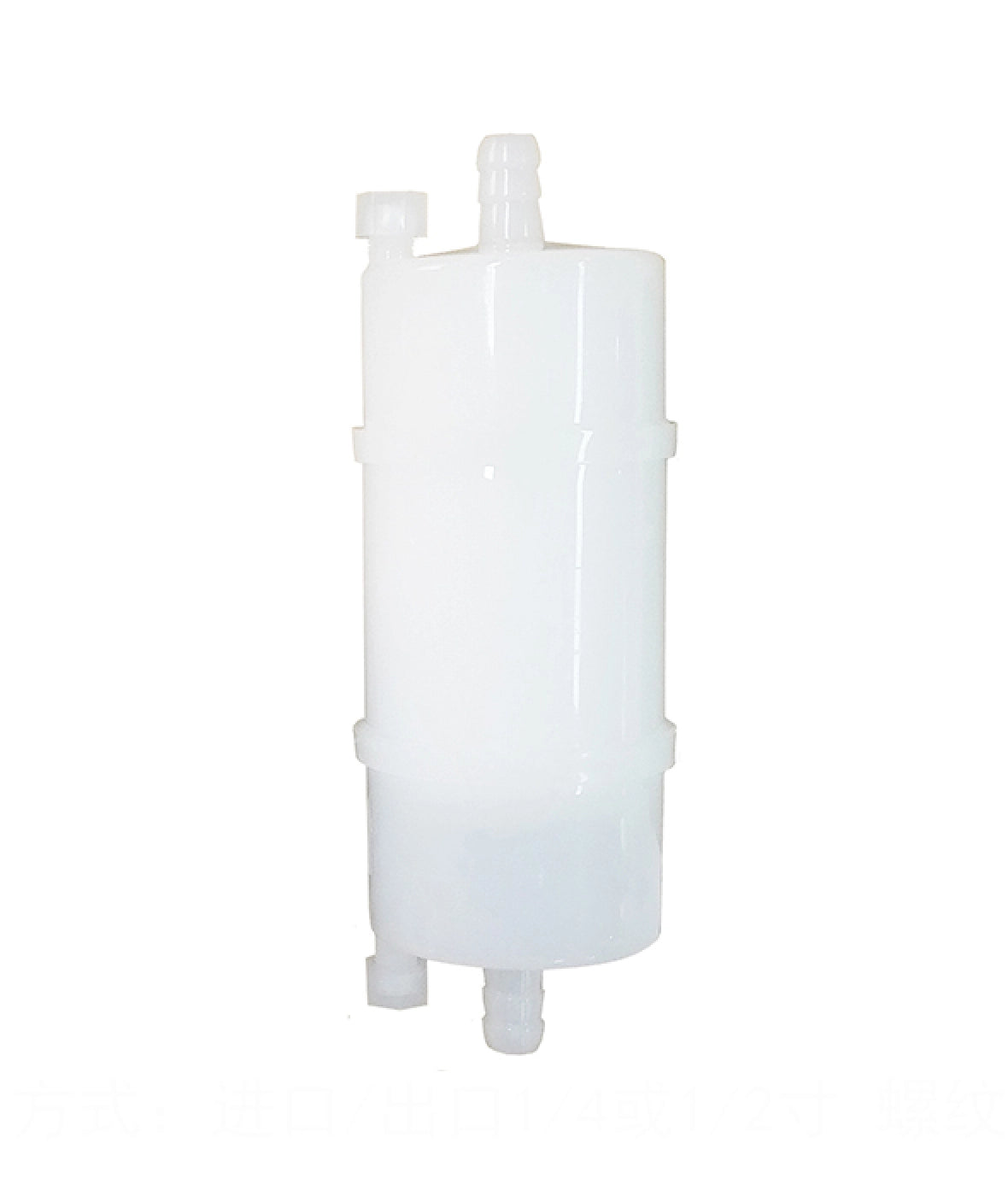

Capsule Filter

¥0.00 Sold out
CERTIFICATION:
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018

NK/NPT/BT Series Capsule Filters are compact capsule assemblies with integrated compact structure design, which can reduce residue and material waste. It is equipped with a housing to save costs. The disposable use requires no cleaning, is simple to install, and can be used directly. Different sizes meet the requirements of big or small volume liquid or gas filtration.

Request A Quote

Material & Size:

Filter Media End Caps/Core/Housing/Support&Drainage/Cage Inlet/Outlet Vent/Drain Length Outside Diameter

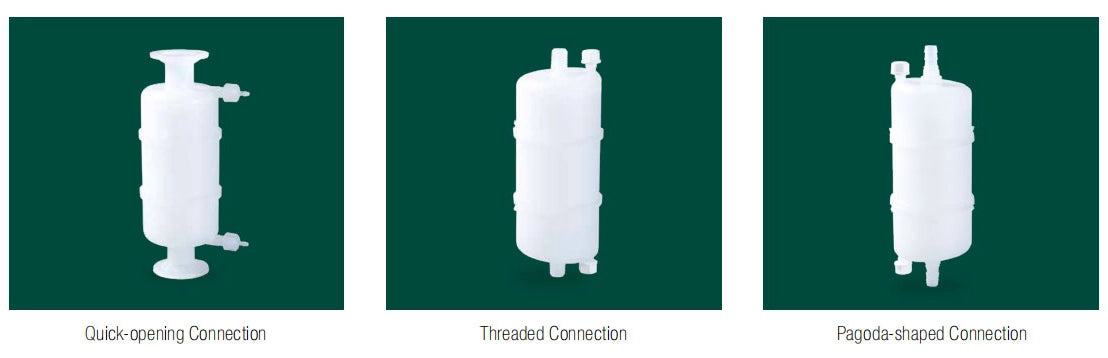

PES/Nylon/Hydrophobic PTFE /Hydrophilic PTFE/Hydrophobic PVDF/PP/Glass Fiber PP NK: 50.5MM BT: 3/8" NPT: 1/4" CNE:1/8"MNPT CSE:1/4"SWG CNE-D:1/4"MNPT NK: 2.5", 5",10" NPT:2.5", 5" BT:2.5", 5" 68mm(2.67 in)

Performance Characteristics:

Removal Ratings (µm) Maximum Operating Temperature Maximum Forward Differential Pressure
PP: 0.1, 0.22, 0.45...50, 100 60℃ (140℉) Liquid: 5 bar@23℃ (50.8 psid@73.4 ℉)
Air&Gas: 3.0 bar@23℃ (43.5 psid@73.4 ℉)
PES: 0.04, 0.1, 0.22, 0.45, 0.65, 0.85, 1, 5
PTFFE: 0.1, 0.22, 0.45...10
PVDF: 0.1, 0.22, 0.45
NL: 0.1, 0.22, 0.45, 0.65, 1
GF: 0.1, 0.3, 0.5, 1

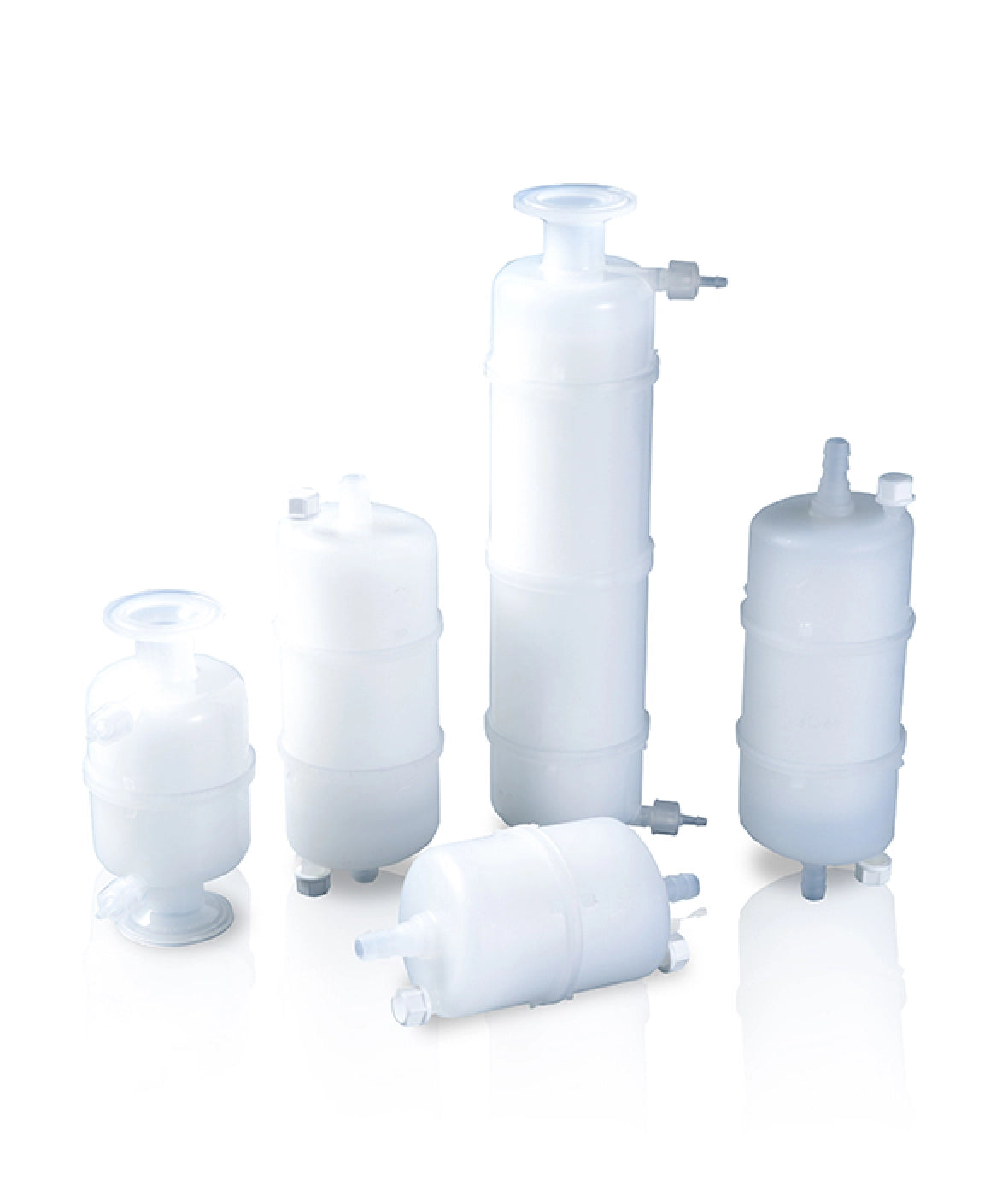

NK/NPT/BT Series Capsule Filter

Features and Benefits:

Compactness

Compact and rigid construction

Sealing

Good sealing performance

Durability

High-pressure resistance

Efficiency

Disposable design, easy change-out

Replaceability

Disposable design, easy change-out

Typical application:

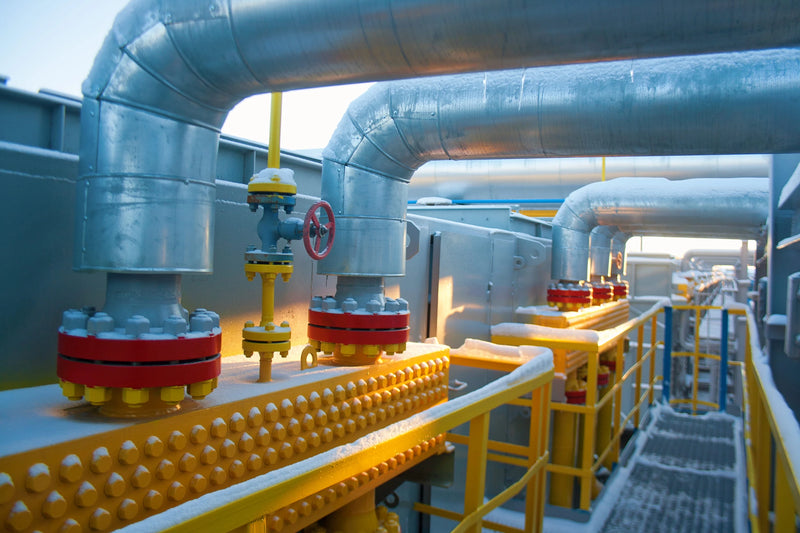

Chemical Industry

Filtration For Ink, Photoresist, Developer, Optical Resin Filtration, Etc.

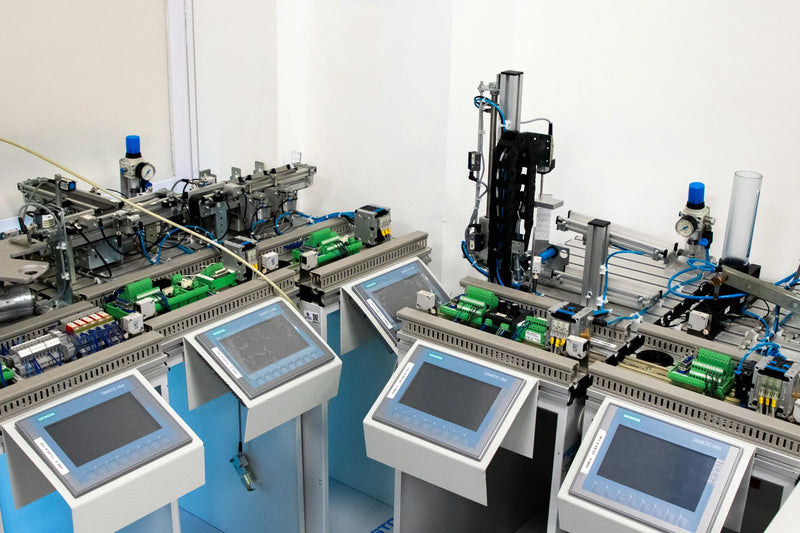

Electronics Industry

Filtration For Deionized Water, Ultrapure Water Filtration, Etc.

Food Industry

Filtration For Beverage, Mineral Water Filtration, Etc.

Pharmaceutical Industry

Filtration For Injection, Vaccine, Culture Solution, Eye Drops, Etc.
