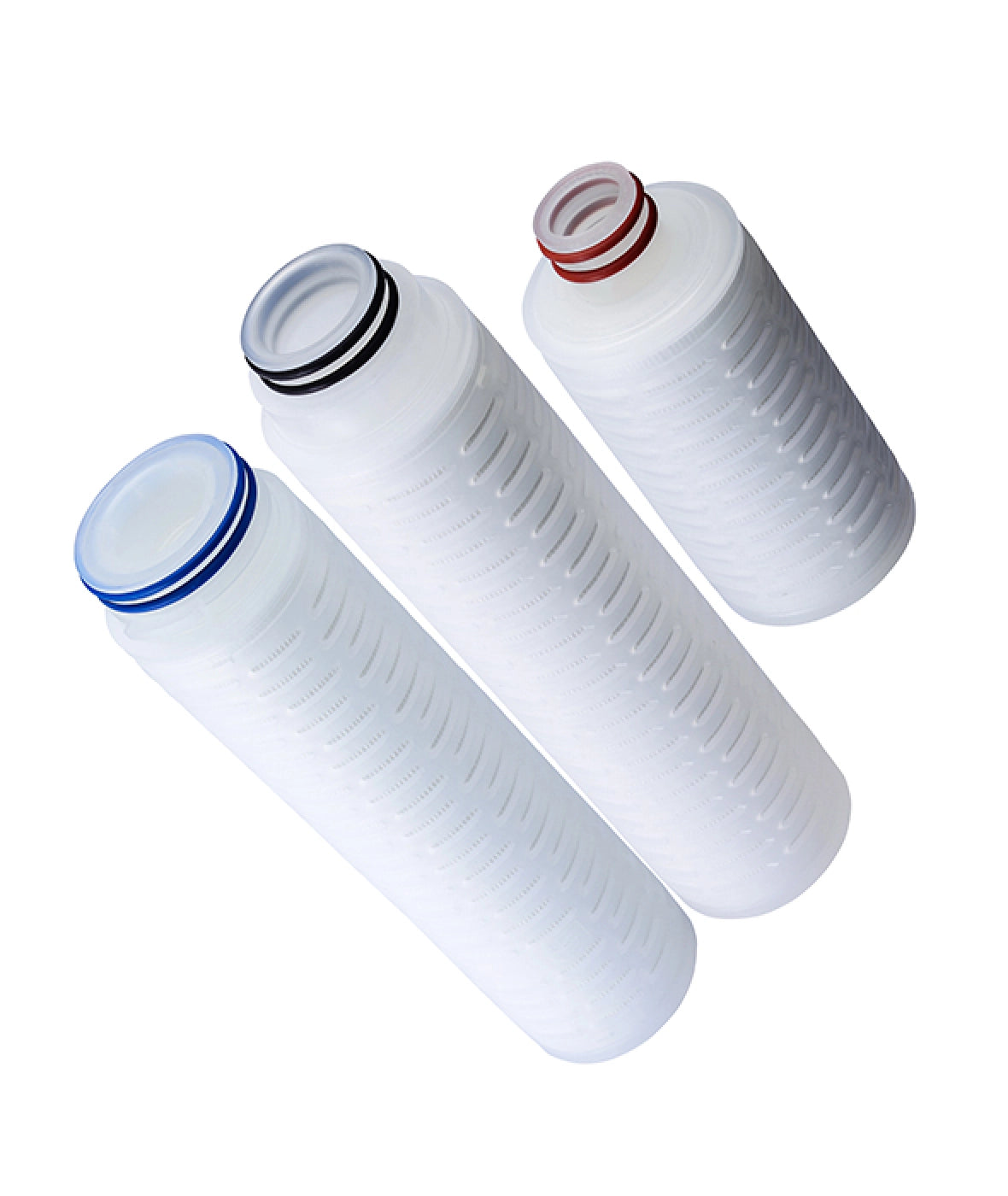

GF Pleated Filter Cartridge is made by high porosity glass fiber (GF) flat filter material and PP components through advanced hot melt sealing technology under Class100 environment and without any adhesives or surfactants.
Pharmaceutical grade for bio-pharmaceutical&food and beverage industry
Standard Specification Default
Spear+222adapter with encapsulated reinforcing stainless steel ring
Flat+222
Flat+222adapter with encapsulated reinforcing stainless steel ring
Spear+226
Spear+226adapter with encapsulated reinforcing stainless steel ring
Flat+Flat
Flat+226
Flat+226adapter with encapsulated reinforcing stainless steel ring
Flat+215
Spear+3 Flange Bayonet adapter
Characteristics & Features:
A01
All Polypropylene Structural Materials, Professional Hot-Melt Sealing Technology, No Adhesive, No Secondary Pollution.
A02
Excellent High-Temp Resistance And Extensive Chemical Compatibility.
A03
It Is Manufactured Under ISO 9001 And ISO 14001 Systems.
A04
Large Porosity Of The Filter Material, Sufficient Interception Space,Large Flow Rate ,Low Pressure Difference And Long Service Life .
A05
Pharmaceutical Grade (P-Grade) Filter Element Is Used In The Biopharmaceutical Industry, And All The Constituent Materials Conform To The Biological Test Characteristics Of USP Class Vi 121 ℃ Plastic Products; Conform To The Food Contact Materials Listed In The Relevant Provisions Of Chapter 21 Of The U.S. Federal Regulations (CFR); And Conform To The Requirements Of China's "Code For Health And Safety Evaluation Of Drinking Water Transmission And Distribution Equipment And Protective Materials" (2001) For Drinking Water Transmission And Distribution Equipment Requirements.
High-Performance Filter Cartridge with Advanced Filtration Technology
This filter cartridge boasts a sophisticated design that incorporates premium materials and innovative sealing technology to deliver exceptional filtration performance and long-lasting durability.
Hydrophilic PES Membrane for Enhanced Filtration
At the heart of this filter cartridge lies a cutting-edge hydrophilic PES (polyethersulfone) membrane. This advanced membrane boasts superior hydrophilicity, enabling it to effectively capture and retain even the most microscopic airborne contaminants, including dust, pollen, bacteria, and viruses.

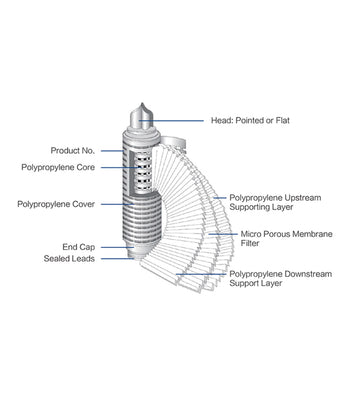

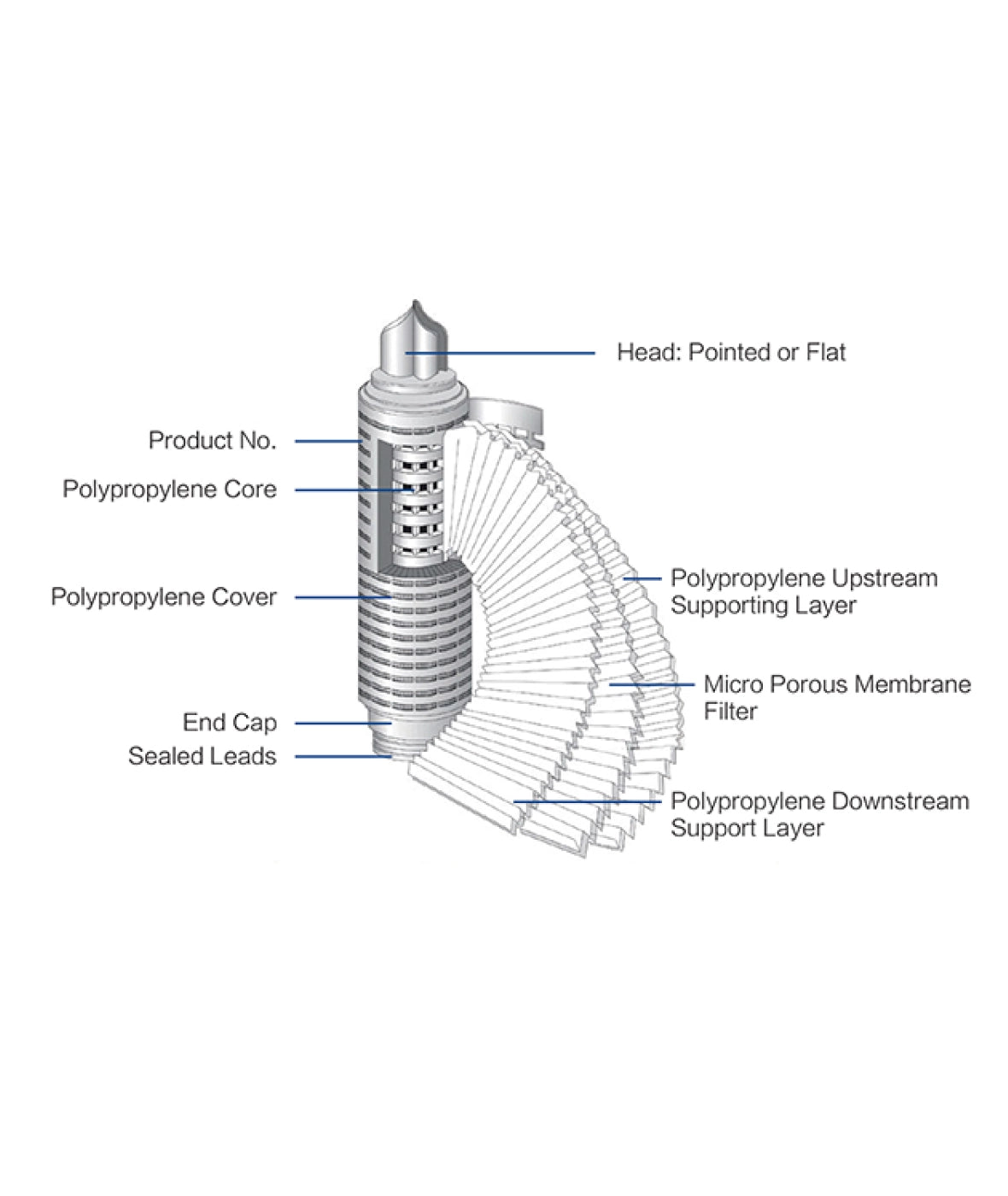

Polypropylene Support and Drainage Structure
Providing robust support and drainage capabilities is a robust polypropylene (PP) support and drainage structure. This structure ensures optimal airflow distribution and efficient drainage of captured contaminants, preventing premature clogging and maintaining peak filtration performance.
Polypropylene Core, Cover, End Caps, and End Caps
Enhancing the overall strength and durability of the air filter element is a construction featuring a polypropylene (PP) core, cover, end caps, and end caps. These PP components provide exceptional resistance to wear and tear, ensuring the filter element can withstand the rigors of even the most demanding environments.
Sealed Leads and Fins with Stainless Steel Reinforcement
For enhanced structural integrity and electrical conductivity, the sealed leads and fins are constructed from polypropylene (PP) reinforced with stainless steel. This combination of materials provides superior strength, corrosion resistance, and heat dissipation, ensuring reliable performance even in harsh conditions.
Typical Application:
A01
Prefilter As Terminal Sterilizing Filter.
A02
Prefiltration Of Compressed Air, Nitrogen And Other Gases For Particle Removal.
