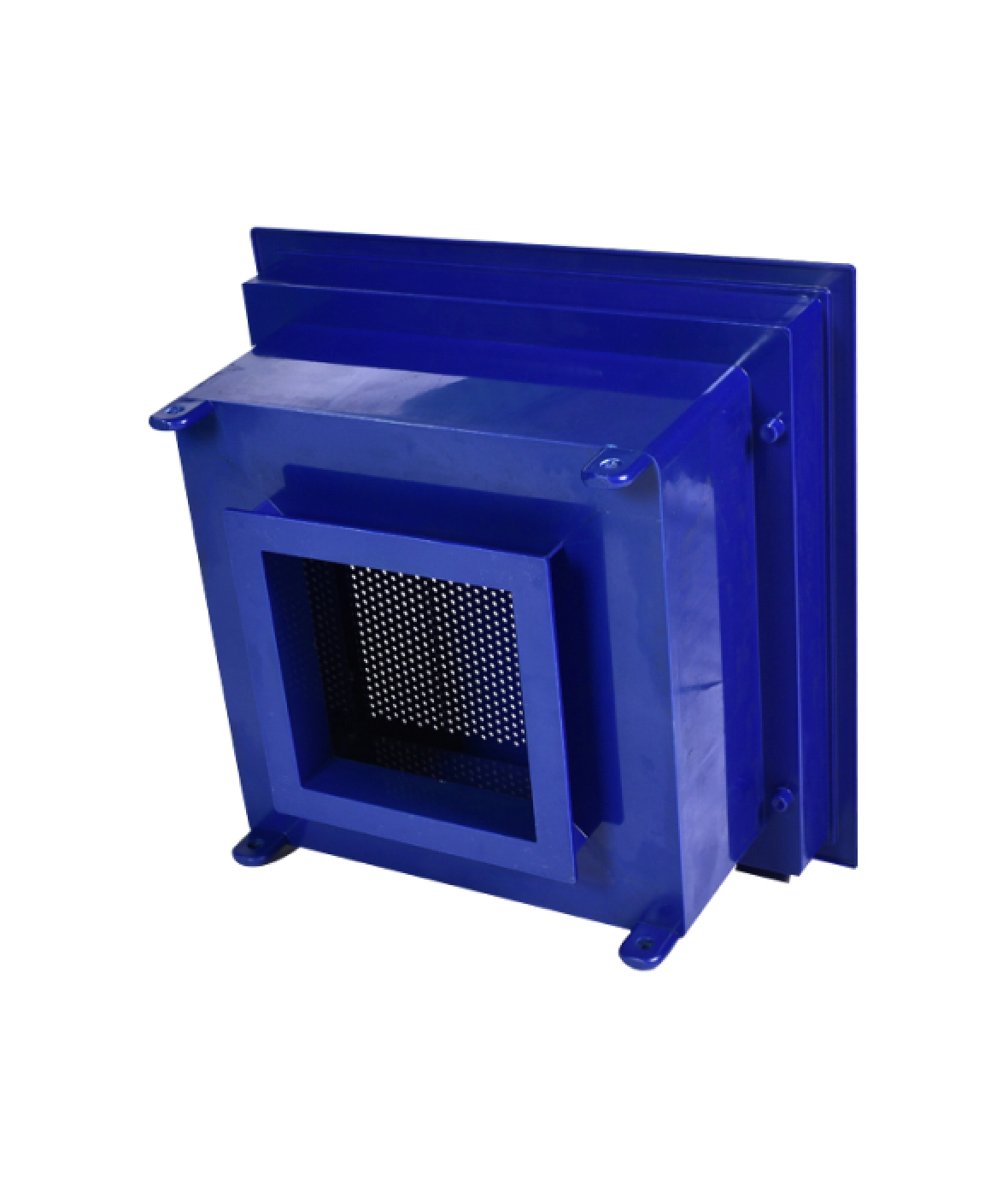

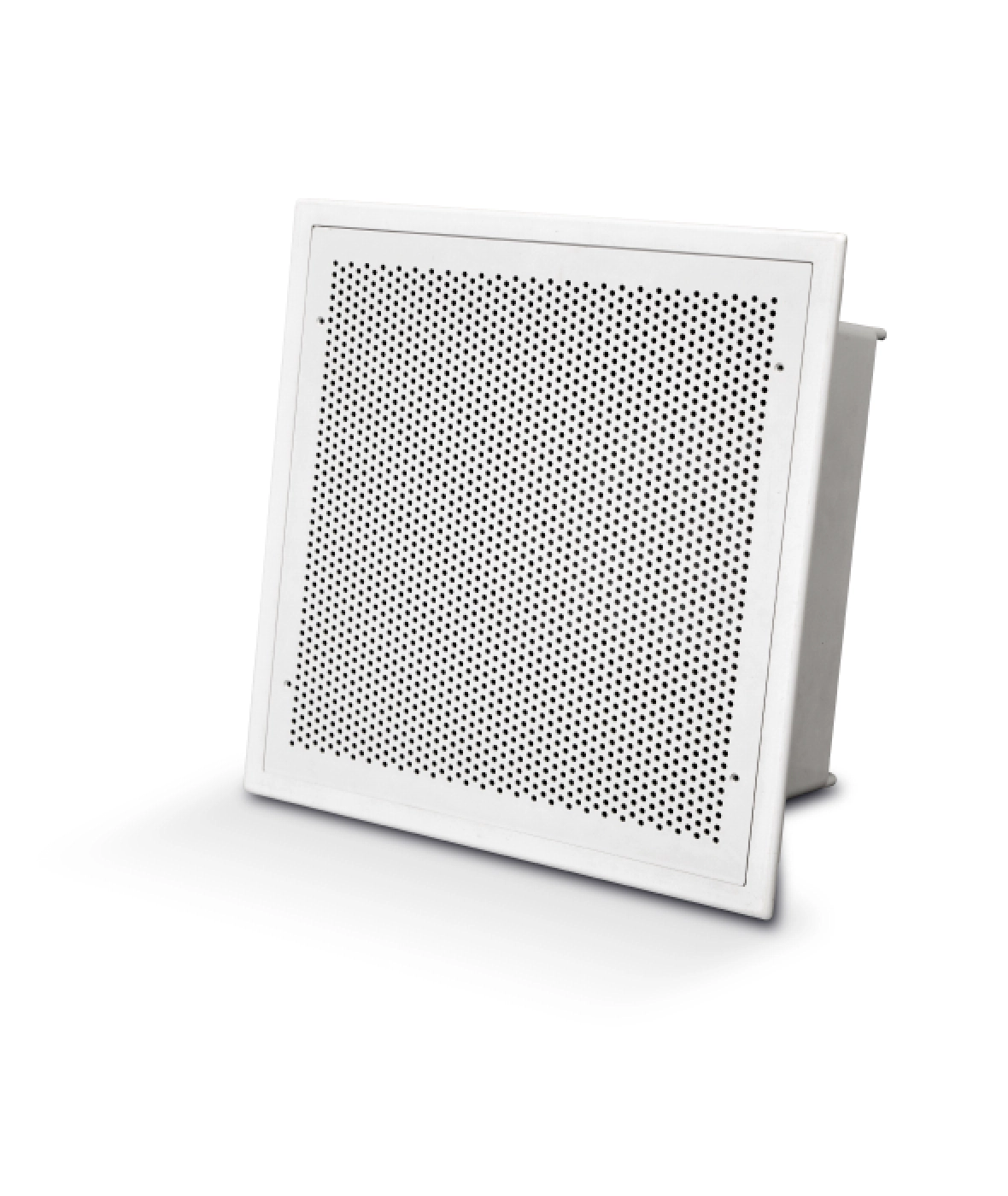

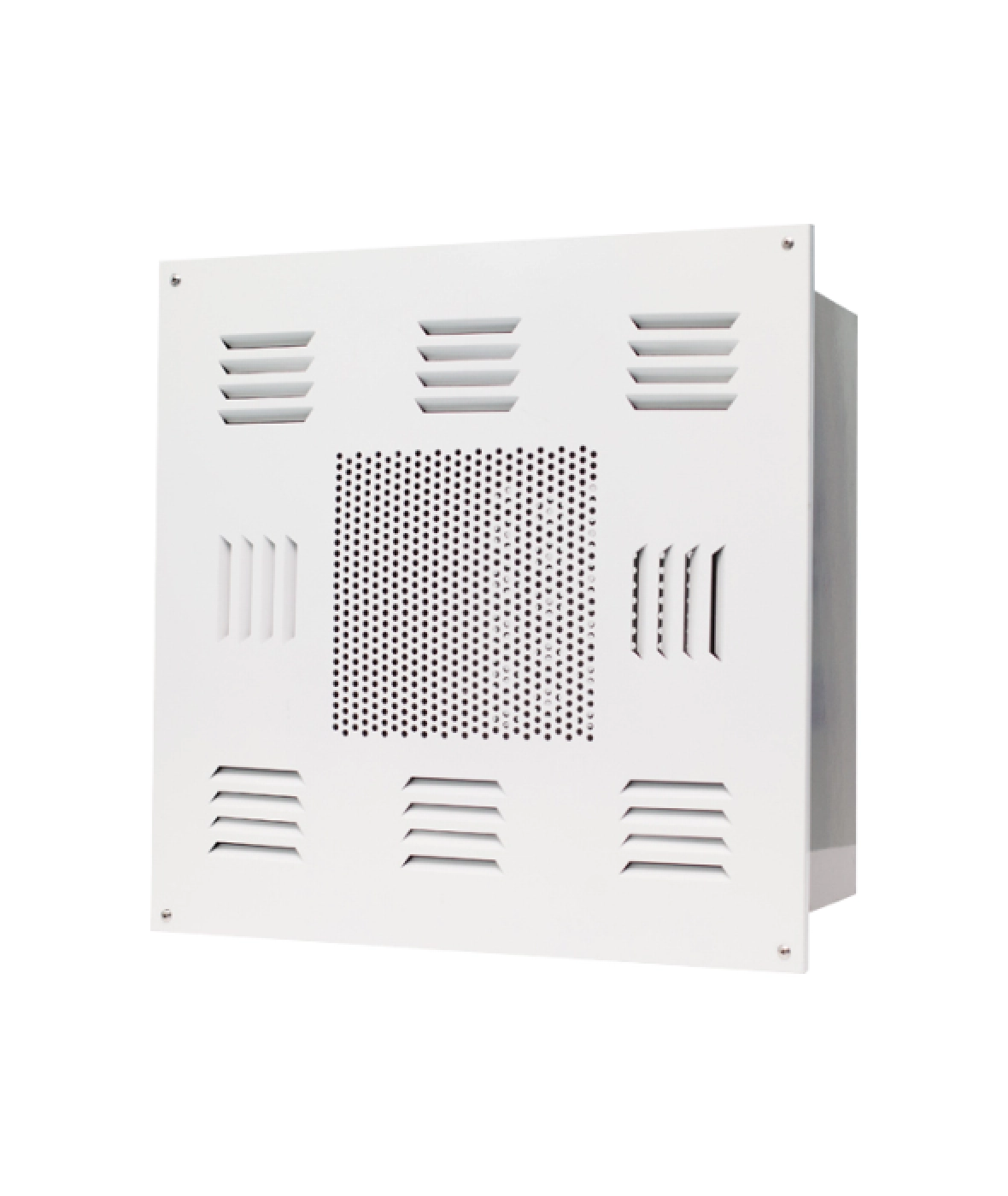

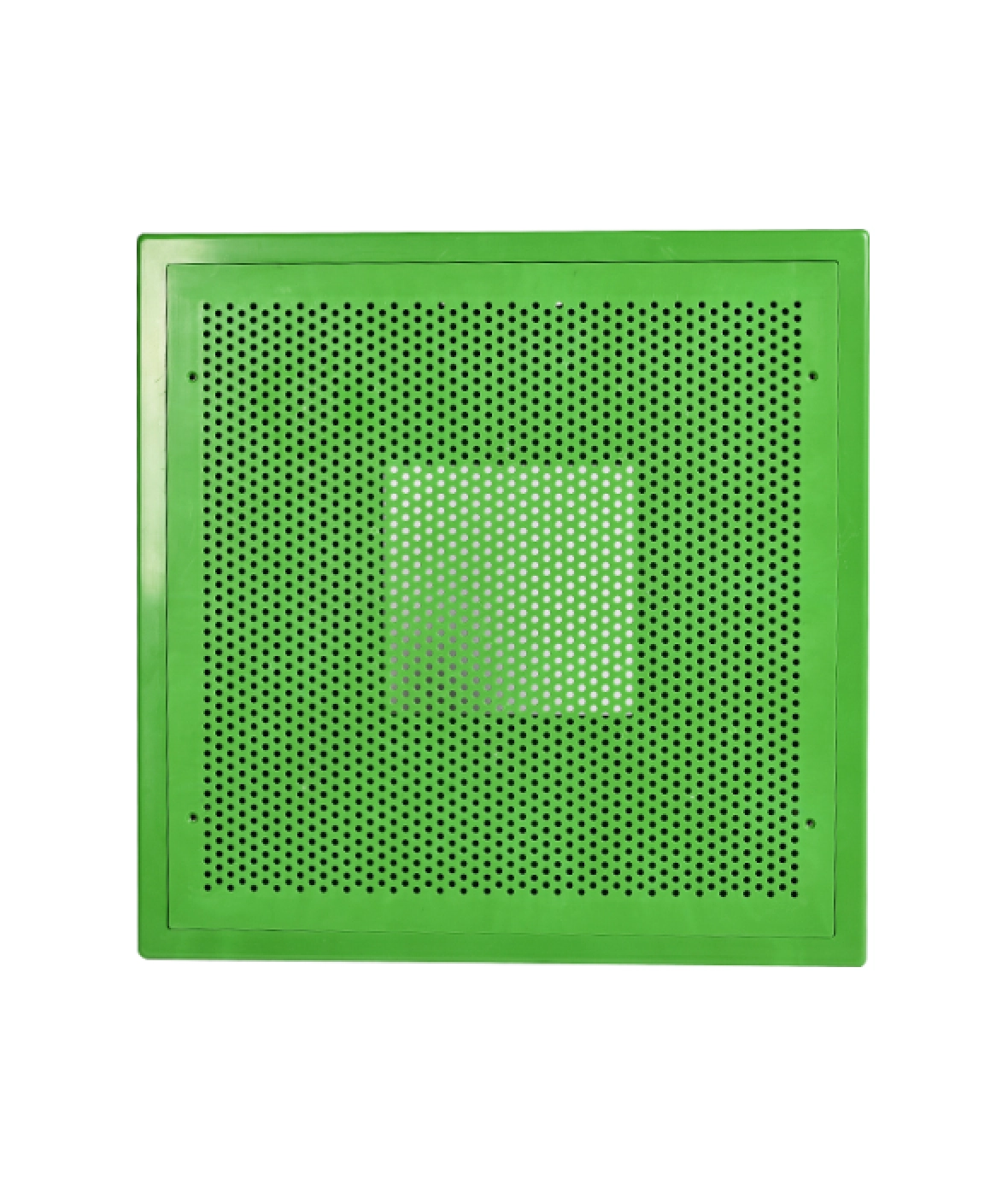

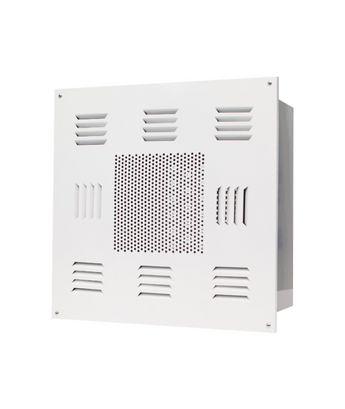

HEPA Box

¥0.00 Sold out
The sealing methods:
dry sealing, wet sealing, dry and wet double sealing
Box Material:
cold-rolled plate spray, 304 stainless steel, aluminum, ABS plastic

Certification:
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018

Definition: HEPA box is the terminal device in purified air supply system.

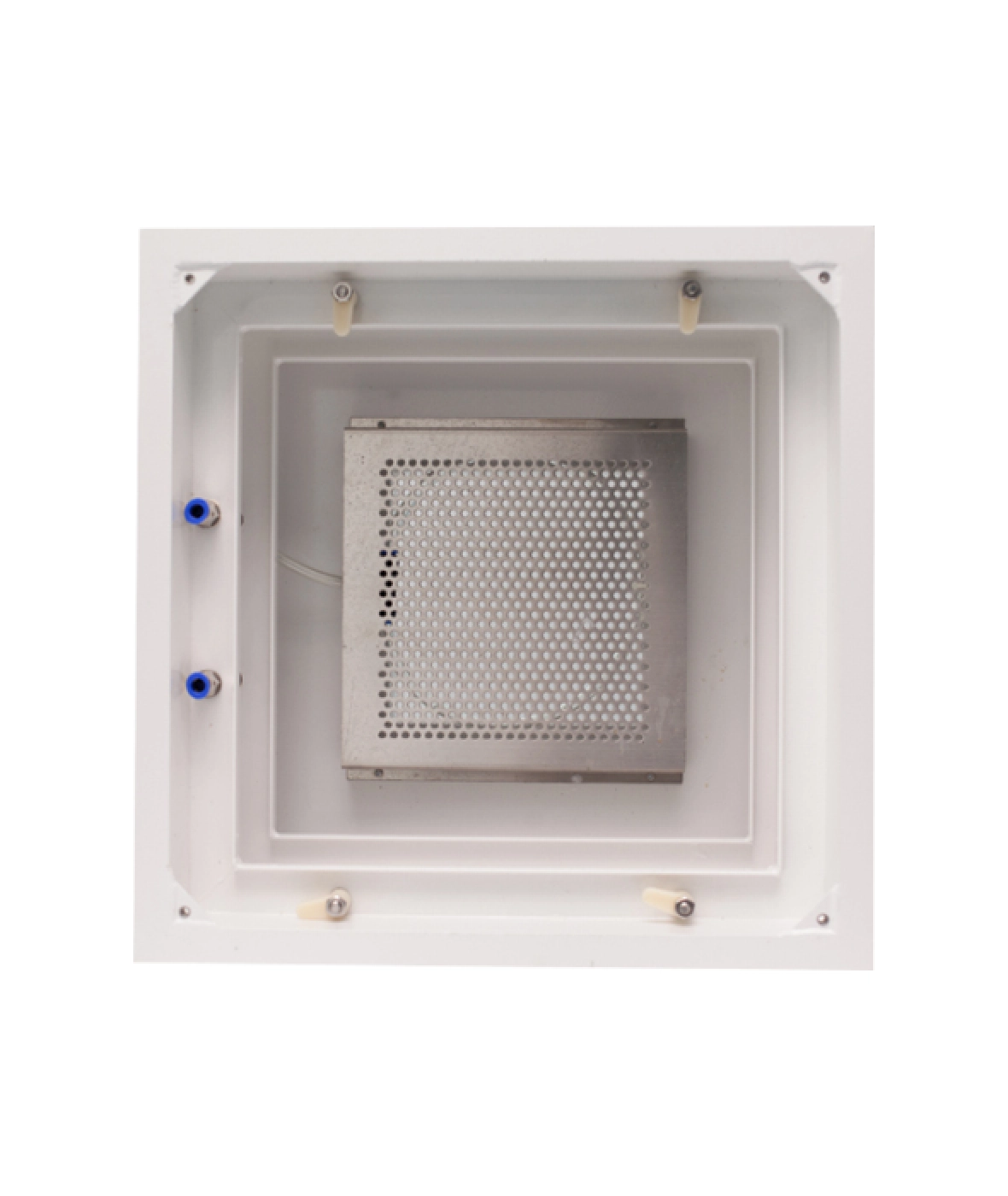

Operation Principle: The HEPA box requiring filed leak detection is provided with PAO dusty entry and upstream concentration detection mouth, and differential pressure detection mouth and lower damper based on customers’ requirements.

Get a Free Quote

Technical Specifications & Parameters:

Material Size of HEPA Size of Box Flange Size of Du Rated Airflo Matching hole size
/ （mm） （mm） （mm） （m³/h） （mm）
LHB5-046.046D 410×410×93 455×455×250 200×200 500 465×465
LHB10-060.060D 550×550×93 595×595×250 320×200 1000 605×605
LHB15-070.070D 650×650×93 695×695×250 320×250 1500 705×705
LHB20-060.110D 1060×550×93 1105×595×250 400×250 2000 1115×605
LHB23-070.100D 955×650×93 1000×695×250 500×250 2250 1010×705
LHB30-070.130D 1260×650×93 1305×695×250 500×320 3000 1315×705

Model Size of HEPA Size of Box Flange Size of Du Rated Airflo Matching hole size
/ （mm） （mm） （mm） （m³/h） （mm）
LHB5-046.046C 410×410×93 455×455×380 200×200 500 465×465
LHB10-060.060C 550×550×93 595×595×380 320×200 1000 605×605
LHB15-070.070C 650×650×93 695×695×430 320×250 1500 705×705
LHB20-060.110C 1060×550×93 1105×595×430 400×250 2000 1115×605
LHB23-070.100C 955×650×93 1000×695×430 500×250 2250 1010×705
LHB30-070.130C 1260×650×93 1305×695×430 500×320 3000 1315×705
Note: For ABS box,the hole size should be 5mm larger than that in the list,for plastic-spray box with DOP outside,the hole size should be 5mm smaller than that in the list .We can also produce other sizes according to customer’s requirements.

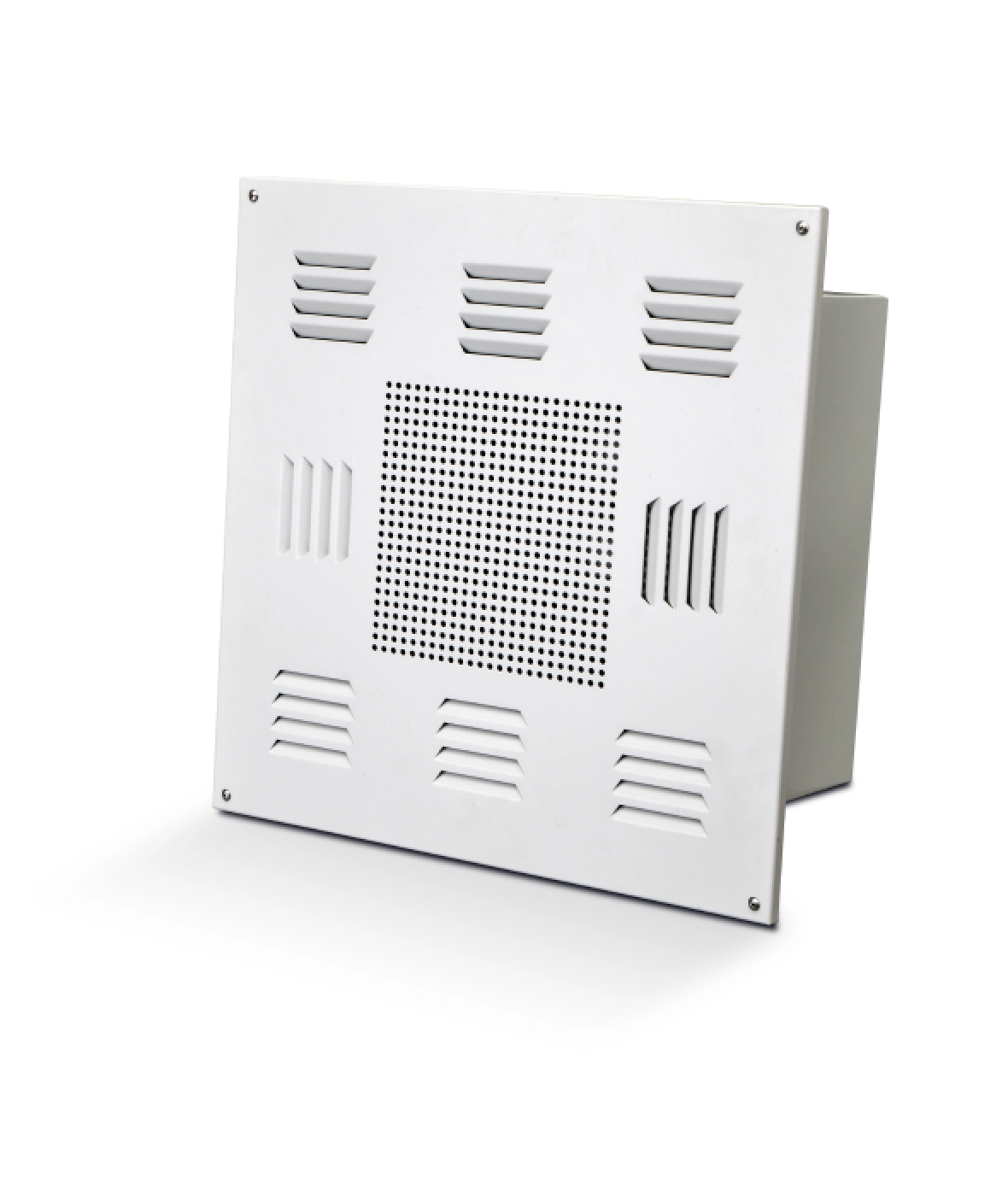

HEPA Box

Safeguarding Pharmaceutical Processes and Products

HEPA (High-Efficiency Particulate Air) boxes are indispensable components in cleanroom environments, playing a crucial role in maintaining air purity and preventing contamination. They serve as housings for HEPA filters, providing an effective means of removing airborne particulates from the air circulated within the cleanroom.

Cleanroom Air Filtration

HEPA boxes are primarily employed for cleanroom air filtration. They house HEPA filters, which capture and remove airborne particles as small as 0.3 microns with an efficiency of 99.97%. This ensures that the air circulating within the cleanroom meets stringent cleanliness standards.

Localized Filtration

HEPA boxes can be used for localized filtration in specific areas within the cleanroom that require a higher level of cleanliness. For instance, they can be placed over workstations or equipment that generate particulate matter.

Recirculation Systems

In recirculation systems, HEPA boxes continuously filter cleanroom air, capturing particles and recirculating clean air back into the environment.

Exhaust Air Treatment

HEPA boxes can also be used to treat exhaust air from cleanrooms. This is particularly important in applications where hazardous or sensitive materials are handled. HEPA filters in these boxes remove airborne contaminants from the exhaust air, preventing their release into the surrounding environment.

Advantages of ABS HEPA Box:

A01

One Time Injection, No Leakage Risk, Smooth Inner Surface, Dust-Free and Easy to Clean.

A02

Acid, alkali and salt-resistant, formaldehyde-resistant, VHP and O 3 Sterilize.

A03

Flame-retardant: UL94-V0.

A04

Flame-retardant, corrosion resistance, high intensity and other features, SGS&BV certificated.

Advantages of Plastic-spry Steel Plate:

A01

Full welding with mechanical welding machine, high efficiency.

A02

No Leakage Risk.

A03

The Box Is Not Easy to Deform.

A04

The Adhesive Force of the Plastic Spraying Layer Is Stronger After the Phosphating Treatment.
