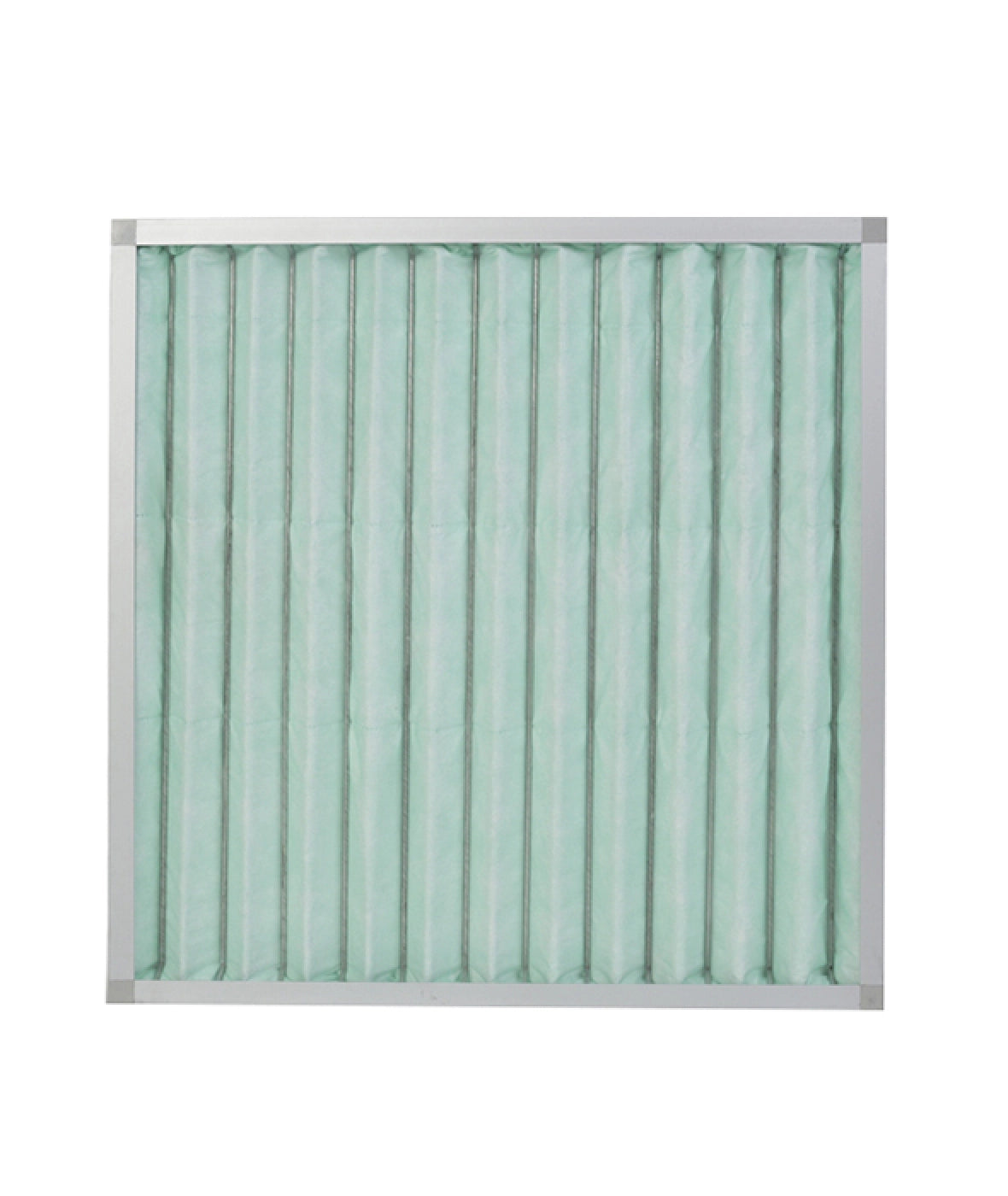

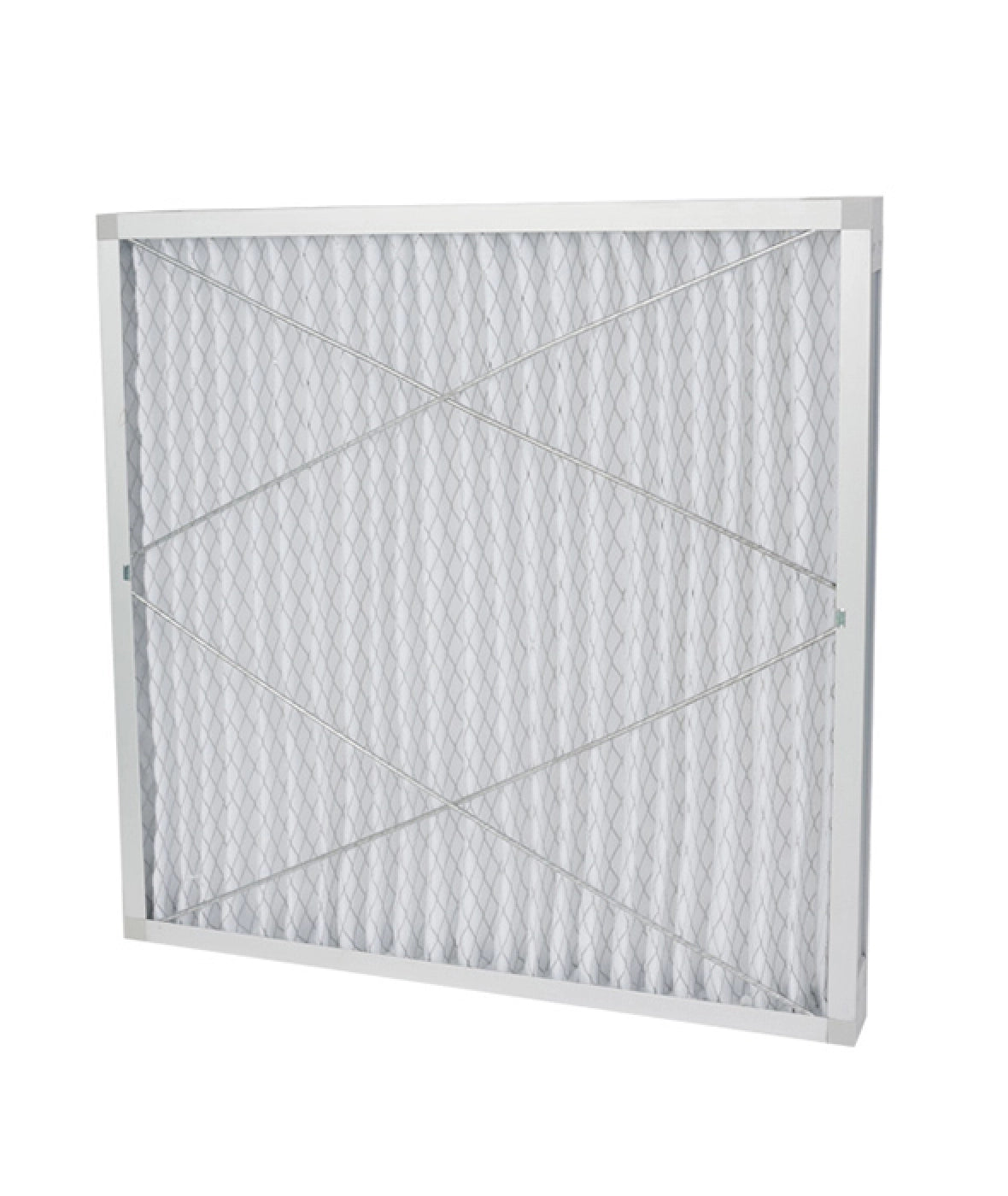

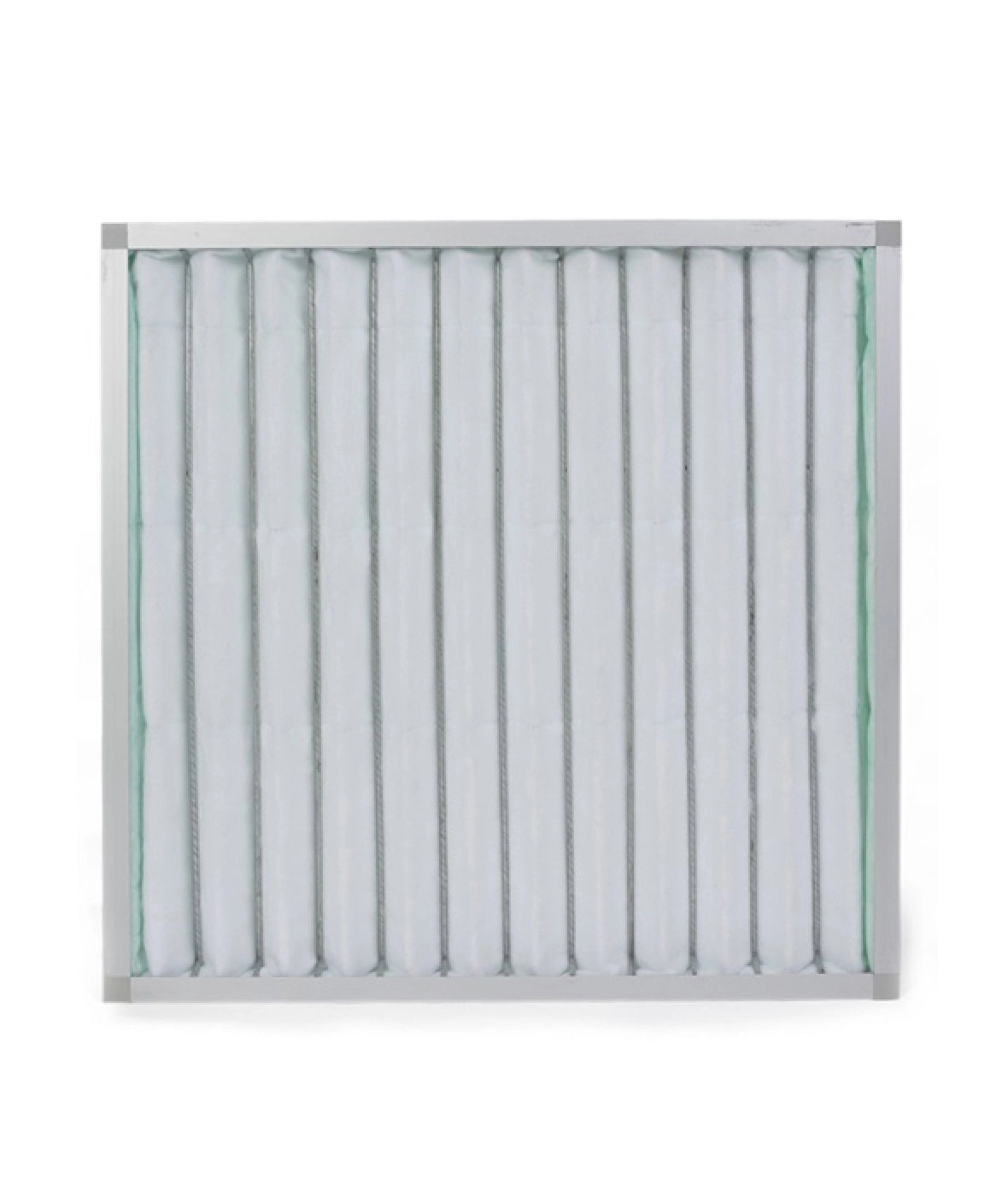

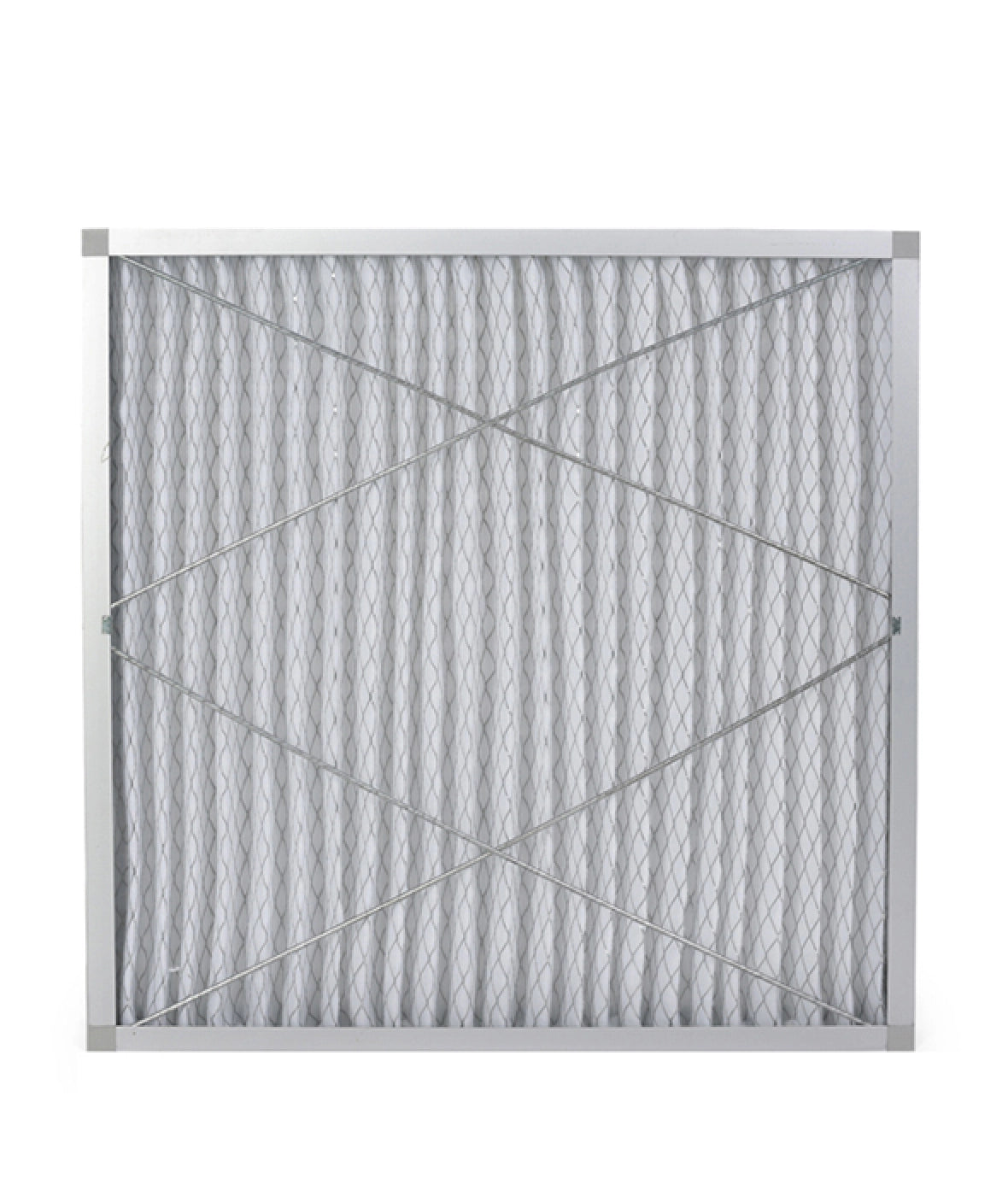

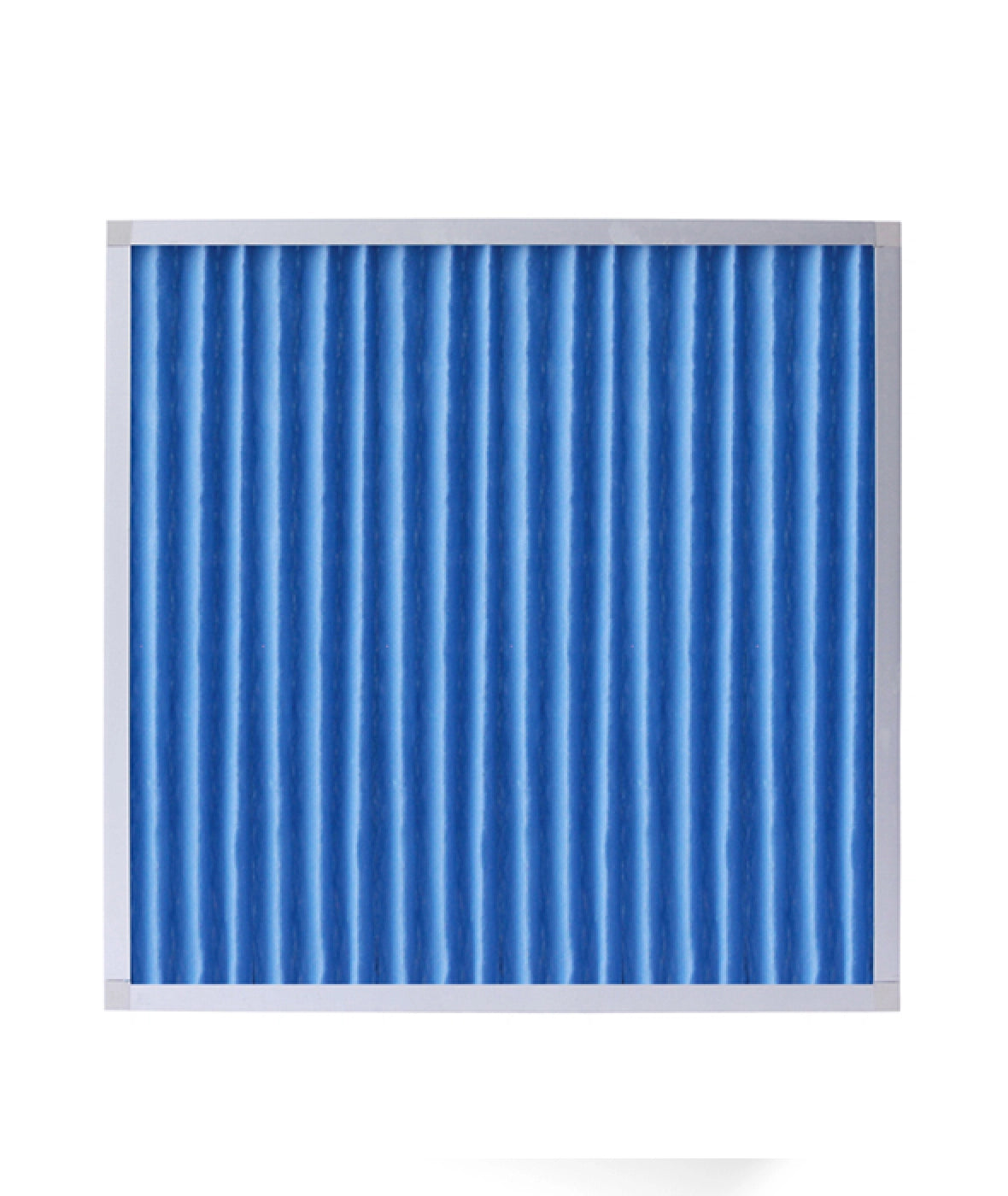

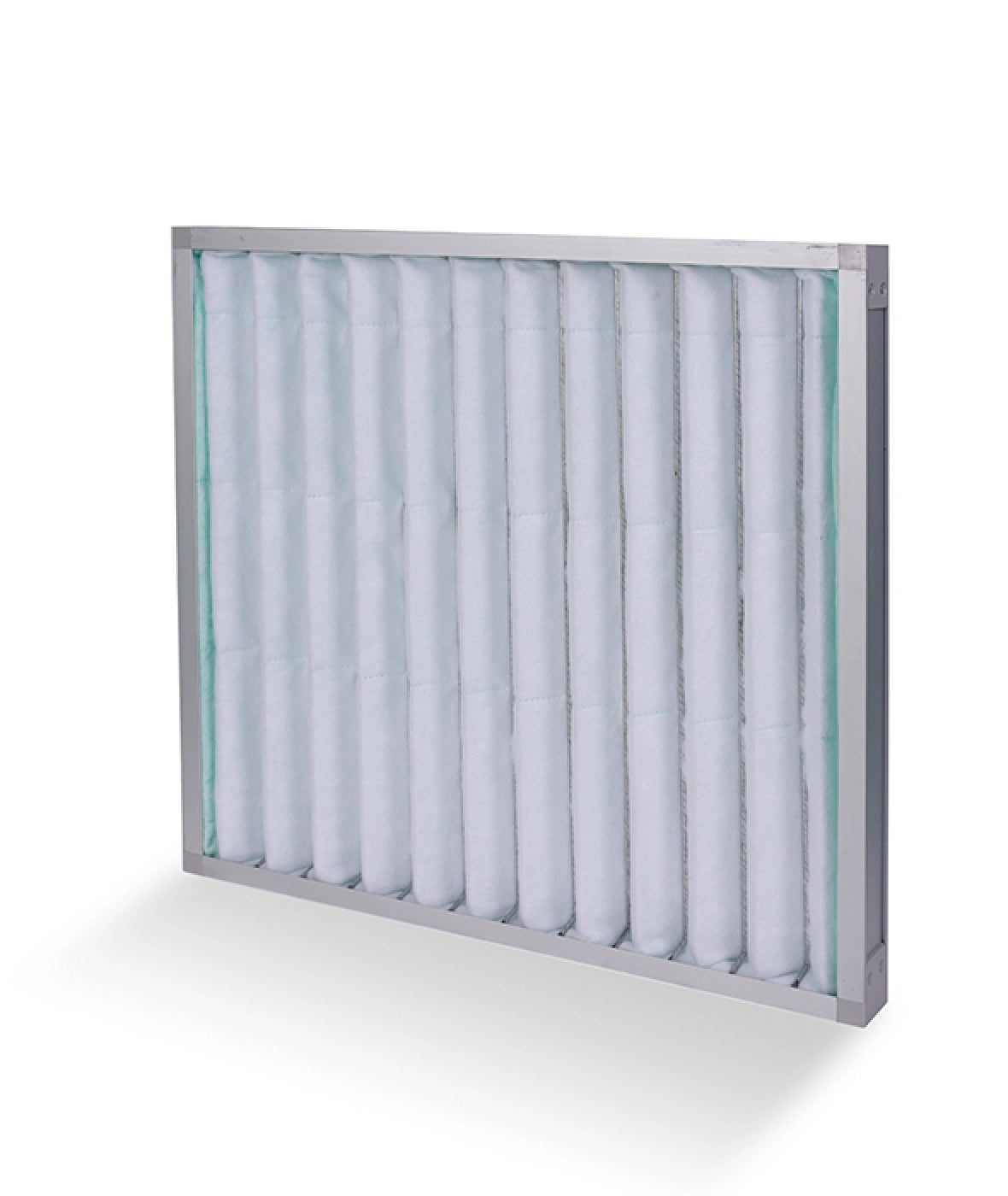

Panel Air Filter

¥0.00 Sold out
Frame:
Galvanized Iron
/Aluminum
/Cardboard frame
Filter Media:
PP/PET complex fibre

Operation Condition:
Max 100%RH, 60 ℃
Filter Class:
G4/M5/M6/F7/F8/F9/EN779

· Compact structure and smaller volume.
· Folding and dual rack frame.
· Generally for the primary filters, alsoavailable in comfort filters.

Get a Free Quote

Standard Size and Parameters:

Model Overall size
L×W×D		 Rated Airflow
（m³/h）		 Initial pressure drop（Pa）
/ / / Arrestance（G2） 65%≤A<80% Efficiency（G3） 80%≤A<90% Efficiency（G4） 90%≤A Efficiency（M5@0.4nm） 40%≤E<60%
BAN592.592-46 592×592×46 3400 30 35 40 60
BAN287.592-46 287×592×46 1700
BAN492.492-46 492×492×46 2200
Note:We can also produce non-standard filters of 150≤W≤1184，150≤H≤600，10≤D≤100.
01

Product Outline Design:

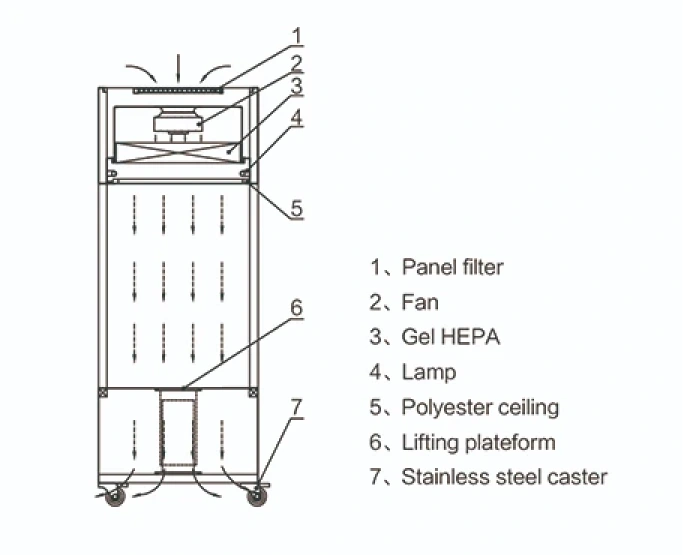

Airflow Direction

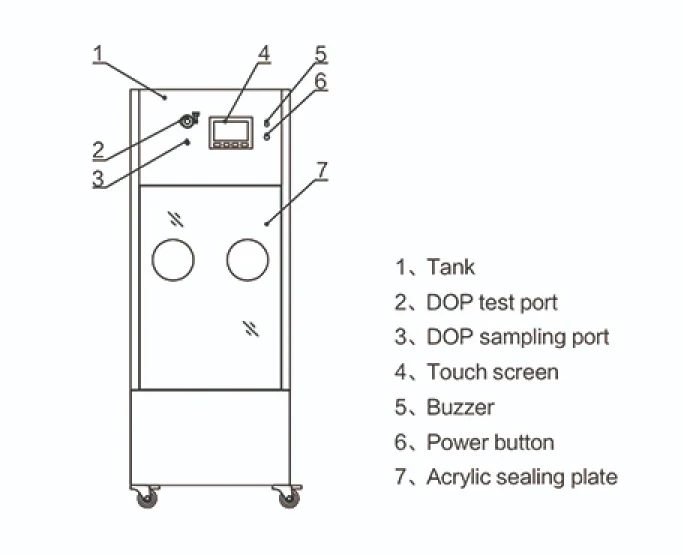

Drawing of Structure
