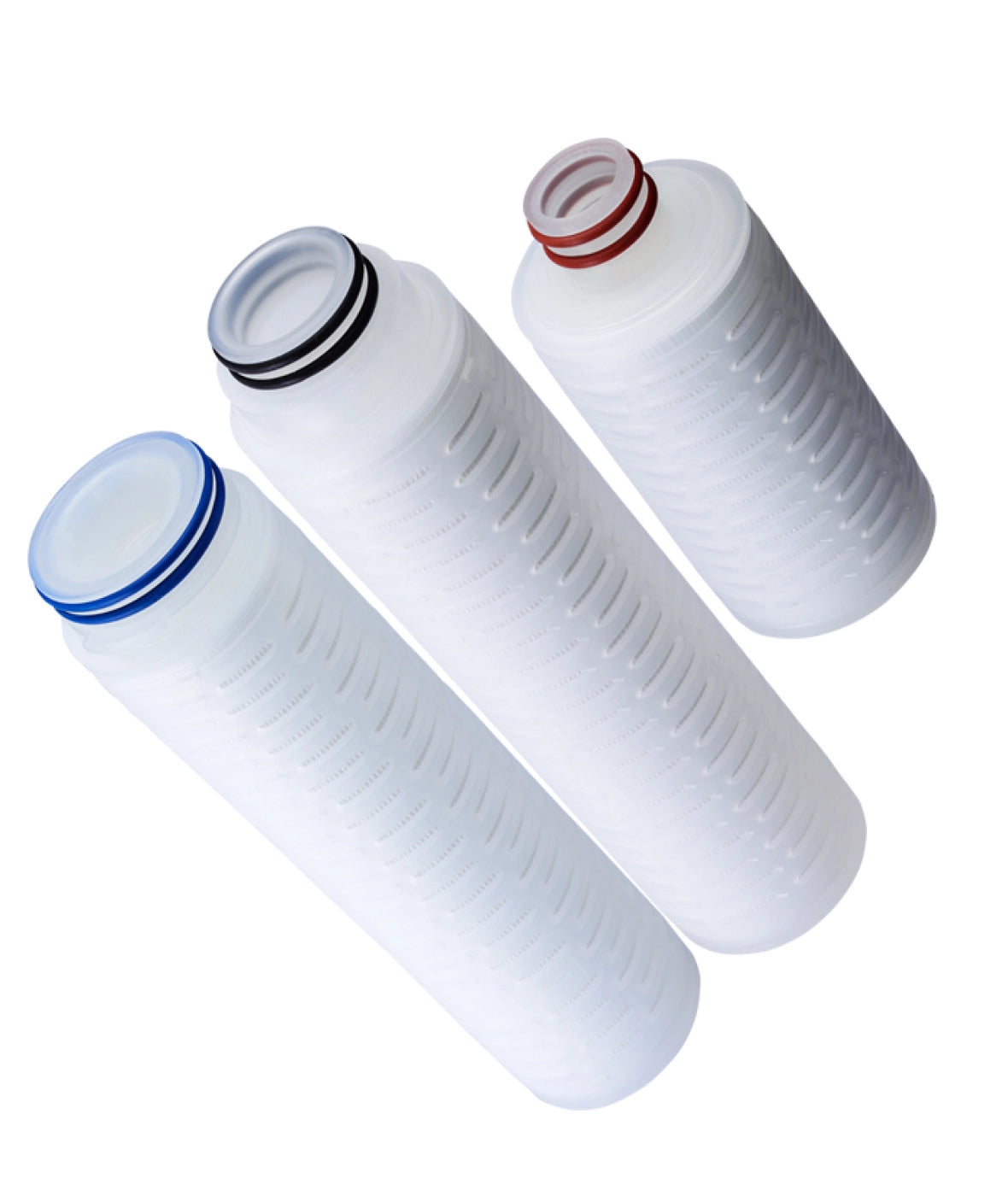

Double Membrane Pleated Filter Cartridge

¥0.00 Sold out
INTEGRITY TEST DATA MINIMUM BOILING POINTS:
0.1 μm+0.1 μm: > 0.4 MPa in Water0.22 μm+0.22 μm: > 0.35 MPa in Water
NTEGRITY TEST DATA DIFFUSION FLOW:
≤30 ml/min@2.8bar
PRECISION OF MODEL SELECTION:
0.1 μm+0.22 μm
0.22 μm+0.22 μm
0.45 μm+0.22 μm
0.45 μm+0.45 μm
0.65 μm+0.45 μm

PES Pleated Filter Cartridge is made by asymmetric gradient aperture membrane and PP components through advanced thermal bonding technology under Class 100 environment. The filter cartridge meets the technical requirements of GB/T34244-2017 of the People's Republic of China and without any adhesives or surfactants.·Asymmetric double membrane structure·Increase of service life·nfallible bacterial retention

Request A Quote

Technical Specifications & Parameters:

Size Filtration area Dissolution（20℃） Minimum Bubble Point of Integrity Test Data Conditions of steam sterilization and hot water sterilization Maximum pressure difference and temperature Typical flow rate (Water 20℃)
Diameter: 2.75" (69 mm)
Length: 5"/10"/20"/30"/ 40" etc. 		Single 10" filter element is about 0.65m² Testing The filters without pre-washing . After 24 hours immersion in water, the dissolution was less than 30 mg/10" filters. 0.1 μm: > 0.38 MPa in Water
 Sterilization temperature: hot water 85℃
Steam 121 ℃/30 min, more than 15 times 		Maximum operating temperature: 85℃/0.2 MPa, 25 ℃ (≥ 0.4 MPa) 0.1 um: 4 lpm/0.01MPa/10"
0.22 μm : > 0.32 MPa in Water 0.22 um: 10 lpm/0.01MPa/10"
0.45 μm: > 0.20 MPa in Water 0.45 um: 15 lpm/0.01MPa/10"

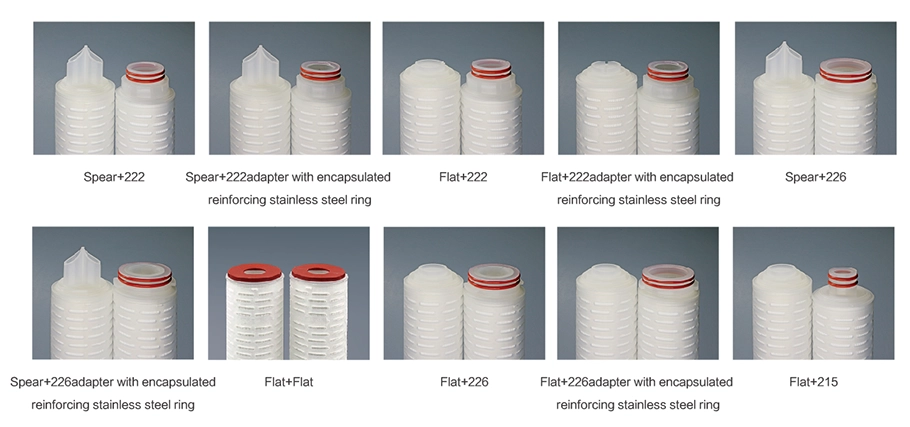

Adapter Style

Ordering Information

1 2 3 4 5 6 7
PES 0.22 --- 10 A S P --X

1 2 3 4 5 6 7
Membrane Pore size Length Connector/End Cover
A/AA/B/BB/C/CC/D/E/EE/F		 Gasket Material
S/E/F/FF		 Application Special Specification Remarks
Hydrophilic PES 0.04 / 0.1 / 0.22 / 0.45 μm 5” / 10” / 20” / 30” / 40” Spear+222 S:Silicon rubber
E:EPDM rubber
F:Fluorine rubber
FF:Encapsulated fluoroelastomer 		Pharmaceutical grade for bio-pharmaceutical&food and beverage industry Standard Specification Default
Spear+222adapter with encapsulated reinforcing stainless steel ring
Flat+222
Flat+222adapter with encapsulated reinforcing stainless steel ring
Spear+226
Spear+226adapter with encapsulated reinforcing stainless steel ring
Flat+Flat
Flat+226
Flat+226adapter with encapsulated reinforcing stainless steel ring
Flat+215
Spear+3 Flange Bayonet adapter

Characteristics & Features:

A01

Excellent High-Tem Resistance And Extensive Chemical Compatibility.

A02

The Sampling Of Filter Element Successfully Passed The Bacterial Challenge Test Required By Regulations, LRV≥7.Integrity Can Be Maintained After Repeated High-Pressure Disinfection.


A03

Each Filter Element Should Pass The Integrity Test Before Leaving The Factory. The Limitations Of Integrity Testing Were Correlated With The Results Of Bacterial Challenge Experiments.

A04

It Is Manufactured Under ISO 9001 And ISO 14001 Systems.

A05

Production And Usage Are Traceable.

A06

All The Compositions Reach Up To The Requirement Of The Biological Testing Characteristics Of Usp Class 6 Plastic Products At 121℃ And The Food Contact Materials Listed In The Relevant Regulations Of Chapter 21 Of The Federal Regulations Of The United States (CFR). They Also Conform To The Requirements Of China's "Standard For Hygienic Safety Evalution Of Equipment And Protective Materials In Drinking Water" (2001) For Drinking Water Transport And Distribution Equipment.

A07

Low Protein Adsorption To Make Sure The Maximum Recovery Of Target Active Ingredients.

A08

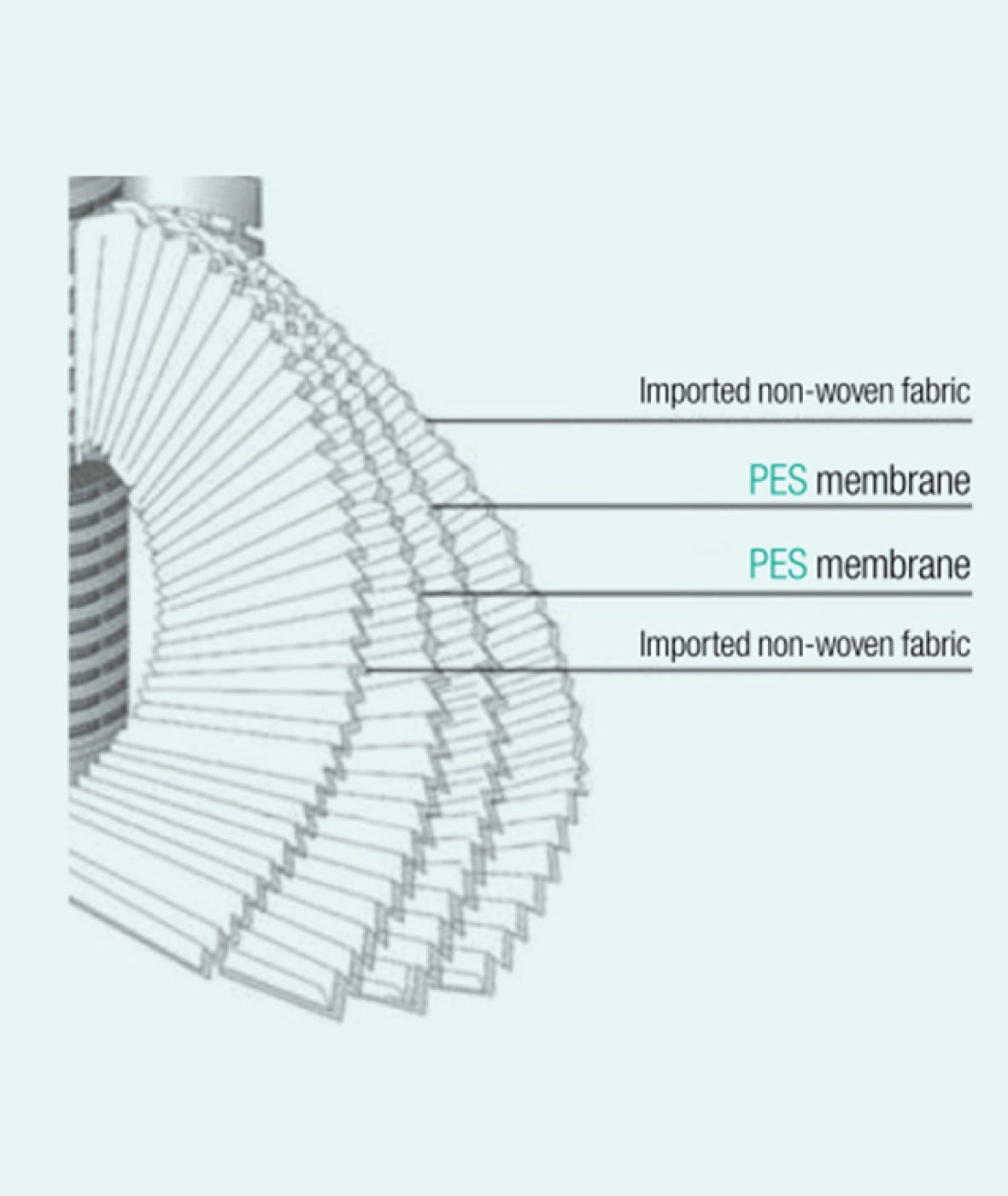

The Filter Membrane Has A Gradient Aperture Structure For Pre-Filtration With Large Flow Rate ,Low Pressure Difference And Long Service Life .

High-Performance Filter Cartridge with Advanced Filtration Technology

This filter cartridge boasts a sophisticated design that incorporates premium materials and innovative sealing technology to deliver exceptional filtration performance and long-lasting durability.

Hydrophilic PES Membrane for Enhanced Filtration

At the heart of this filter cartridge lies a cutting-edge hydrophilic PES (polyethersulfone) membrane. This advanced membrane boasts superior hydrophilicity, enabling it to effectively capture and retain even the most microscopic airborne contaminants, including dust, pollen, bacteria, and viruses.

Polypropylene Support and Drainage Structure

Providing robust support and drainage capabilities is a robust polypropylene (PP) support and drainage structure. This structure ensures optimal airflow distribution and efficient drainage of captured contaminants, preventing premature clogging and maintaining peak filtration performance.

Polypropylene Core, Cover, End Caps, and End Caps

Enhancing the overall strength and durability of the air filter element is a construction featuring a polypropylene (PP) core, cover, end caps, and end caps. These PP components provide exceptional resistance to wear and tear, ensuring the filter element can withstand the rigors of even the most demanding environments.

Sealed Leads and Fins with Stainless Steel Reinforcement

For enhanced structural integrity and electrical conductivity, the sealed leads and fins are constructed from polypropylene (PP) reinforced with stainless steel. This combination of materials provides superior strength, corrosion resistance, and heat dissipation, ensuring reliable performance even in harsh conditions.

Typical application:

A01

Sterilization Filtration Of LVP, Fine Needle, Freeze-Dried And Spray Dried Drug.

A02

Sterilization Filtration And Mycoplasma Removal Filtration Of Animal Serum, Liquid Medium, Buffer Solution, Supplement Water, Etc..


A03

Sterilization Filtration Of Vaccines And Genetically Engineered Products.

A04

Sterilization Filtration Of Eye Drops, Diagnostic Reagents, Etc.

A05

Sterilization Filtration Of Various Process Water And Pharmaceutical Water.

A06

Terminal Filtration Of Bottled Water, Draft Beer, Wine, Yellow Wine, Soft Drinks, Syrups, Etc. In The Food And Beverage Industry.
