Filter Bag

¥0.00 Sold out
CERTIFICATION:
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018

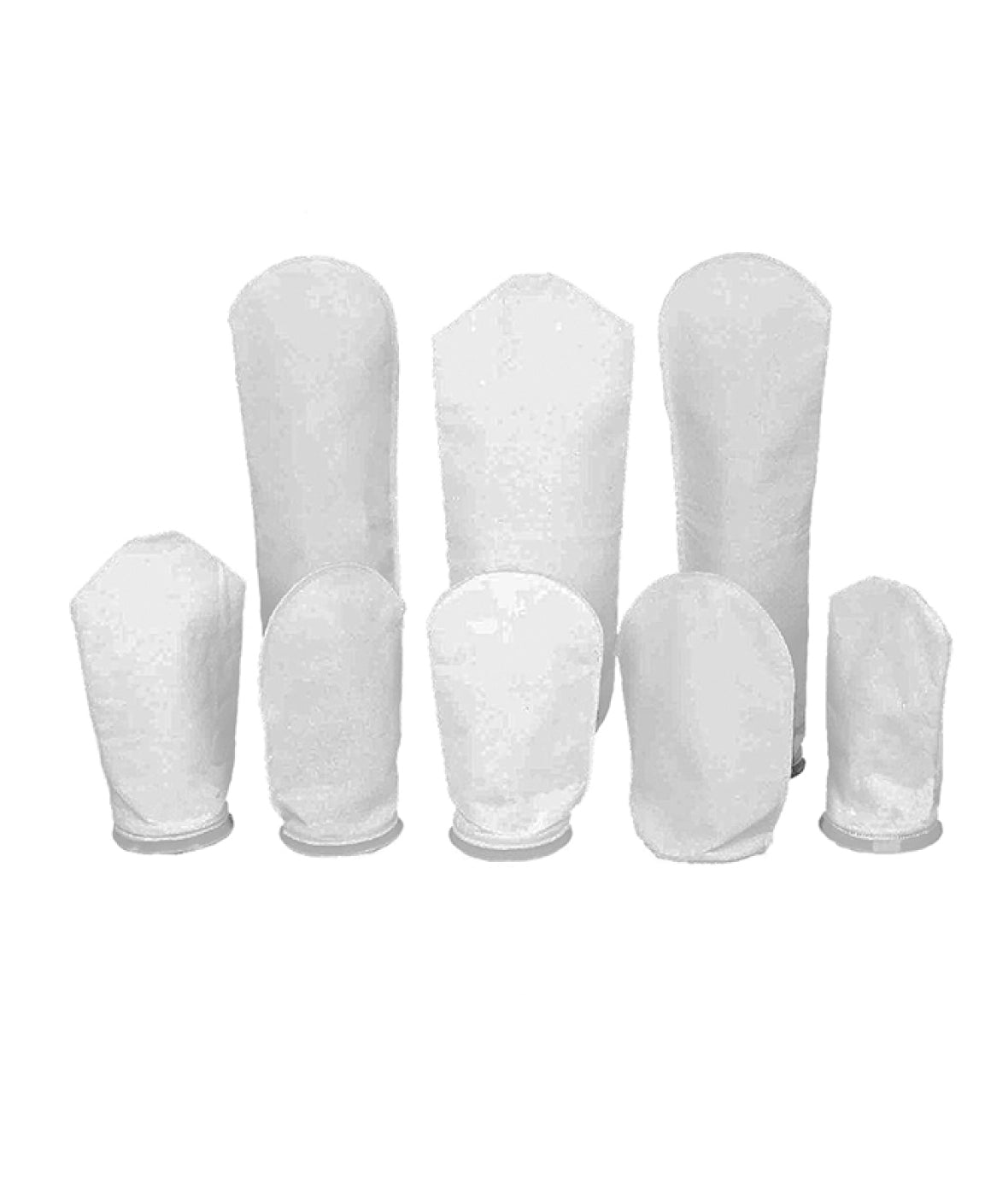

The filter bags have excellent chemical stability and high-temp resistance. It is made of needle felt. The filter media come with fine removal ratings. The surface is burnt, pressed or covered with film so no fiber migrates from the media surface.

Request A Quote

Material & Size:

Filter Media Size
PP/PE/Nylon 1#: 180*430mm
2#: 180*810mm
3#: 0.97 ft² / 0.09㎡
4#: 1.72 ft² / 0.16㎡

Performance Characteristics:

Filtration Area Removal Ratings(µm) Maximum Operating Temperature Maximum Forward Differential Pressure
1#: 2.69 ft² / 0.25㎡ 1.0, 5.0, 10, 30, 50, 100, 150, 200, 300 PP: 110℃
PE: 190℃
Nylon: 190℃ 		2.0 bar@23℃
1.0 bar@80℃
2#: 5.38 ft² / 0.50㎡
3#: 0.97 ft² / 0.09㎡
4#: 1.72 ft² / 0.16㎡

Features and Benefits：

A01

High Dirt-Holding Capacity, Long Service Life, Low Differential Pressure

A02

Wide Chemical Compatibility


A03

High Flow Rate, Large Filtration Capacity

Typical Application:

A01

Activated Carbon Removal Filtration

A02

Safetyguard Filtration For Reverse Osmosis（RO）Process


A03

Diatomaceous Earth Removal Filtration
