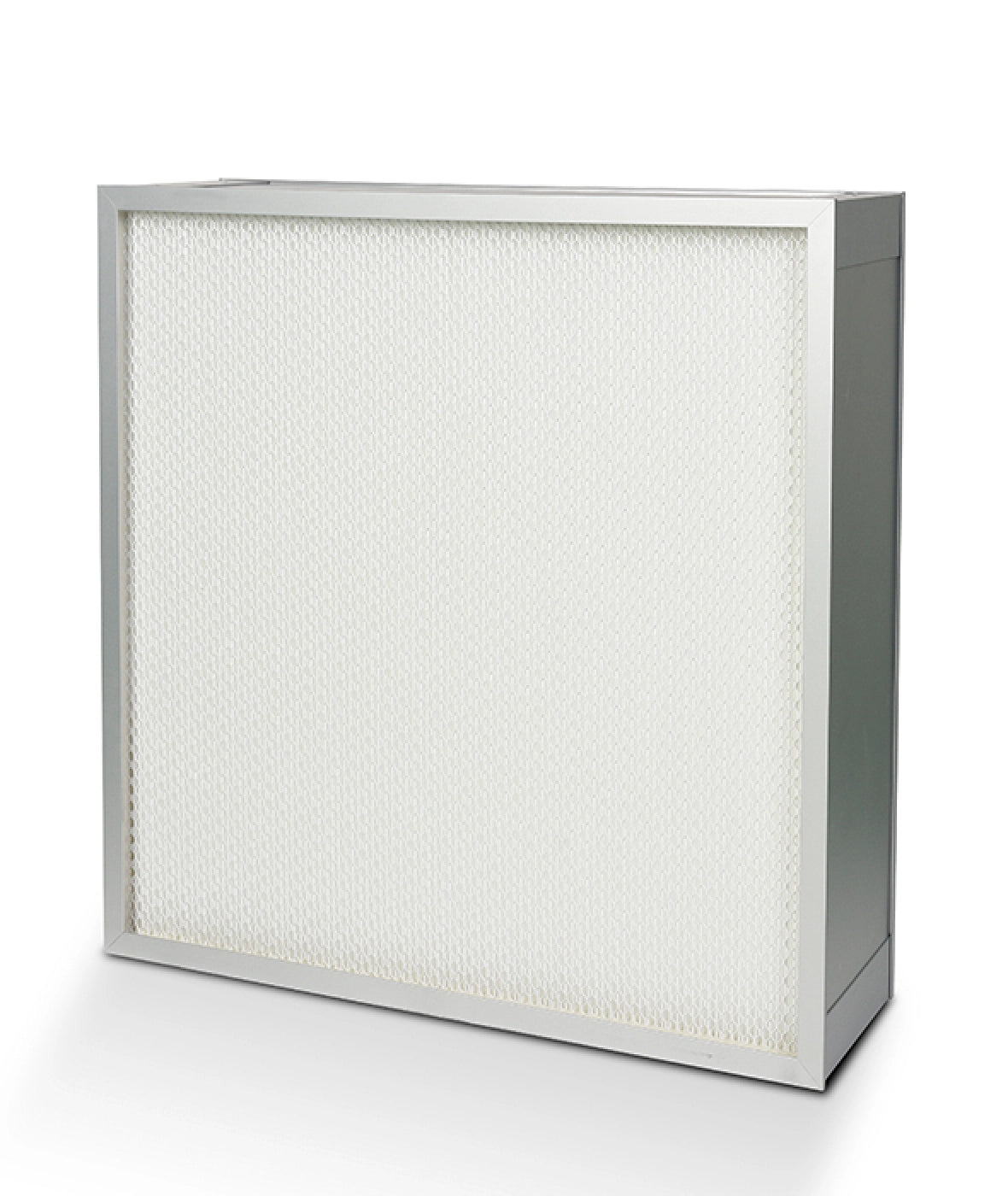

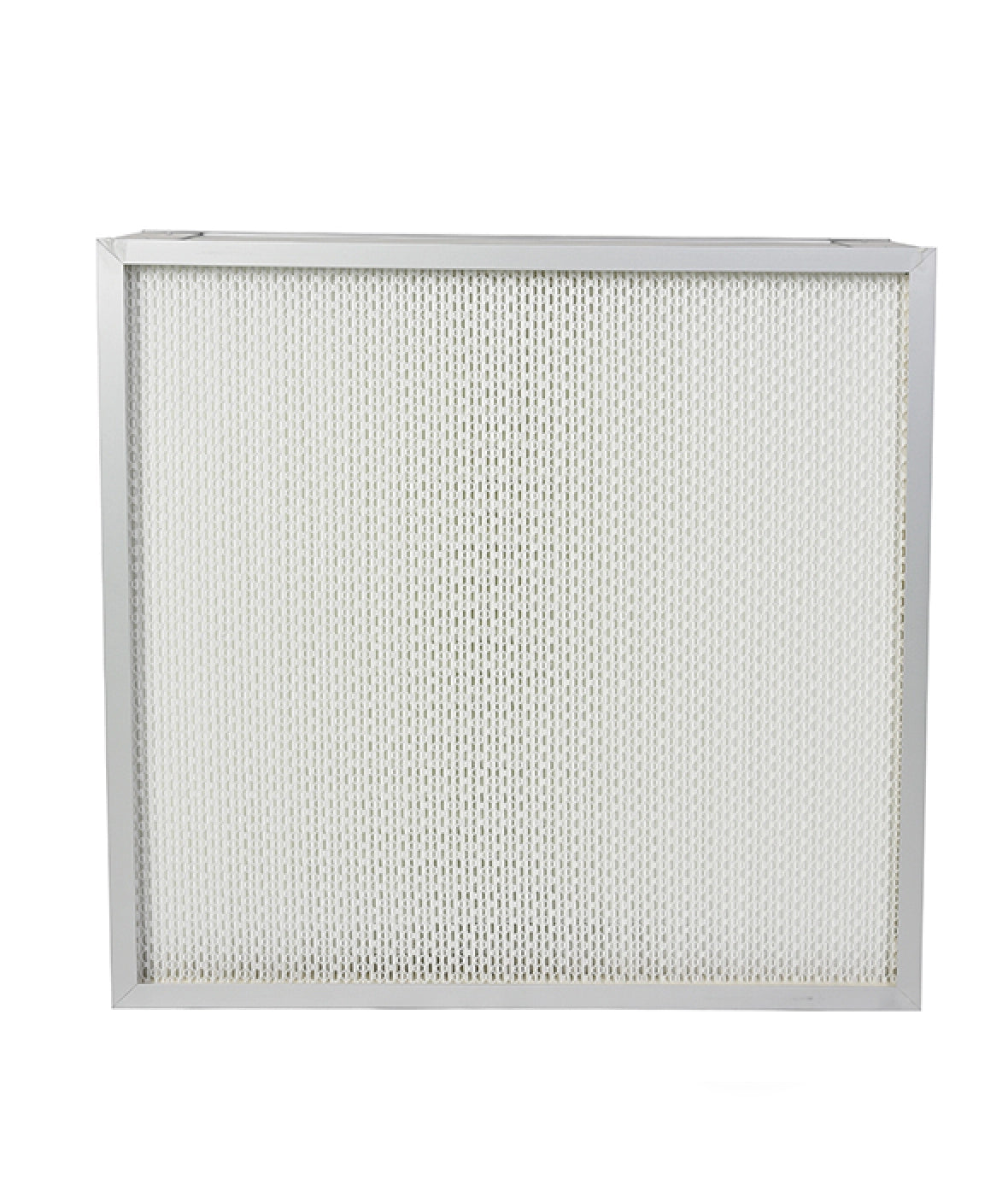

Compact HEPA Filter For Laminar Flow

¥0.00 Sold out
Frame:
Aluminum
Spacer:

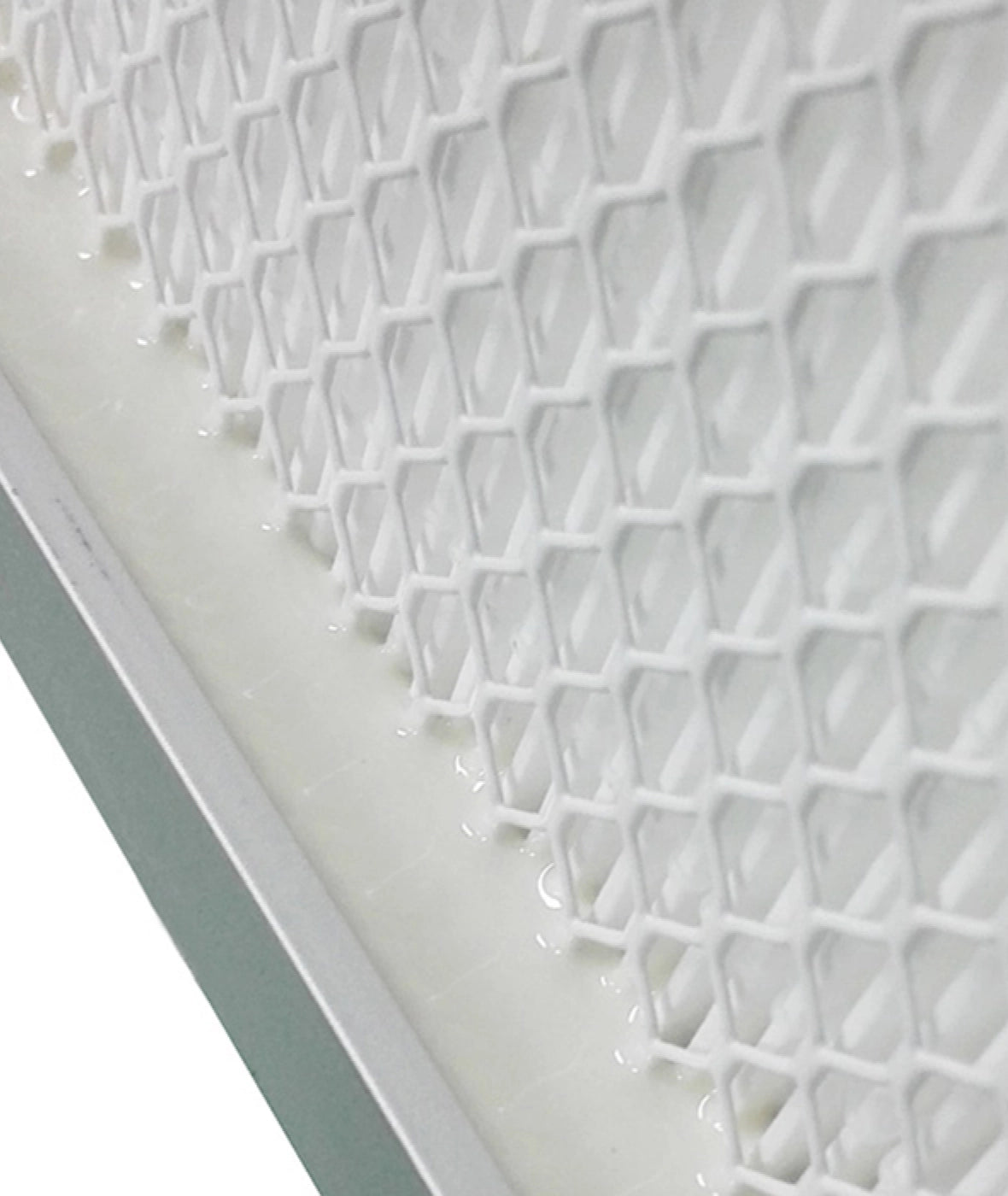

EVA
Filter Media:
Glass Fiber
Gasket:
PU gel/PU foam seal
/CR seal strip

Operation Conditions:
≤≤80%/100%RH, 40℃/80℃
Filter Class:
H14/EN1822

· One-way flow (laminar flow) air supply, mostly usedfor purification equipment.
· Wind speed 0.36-0.54m/s.
· Generally choose gel seal form.

Get a Free Quote

Standard Size And Parameter：

Model Overall size Rated Air velocity Rated Airflow InitialResistance End resistance Efficiency@MPPS
/ L×W×D （m³/h） （m³/h） （Pa） （Pa） /
YWGB610.610-93H14 610×610×93 0.45 600 110 250 99.995%≤E<99.9995%
YWGB800.600-93H14 800×600×93 800
YWGB1220.610-93H14 1220×610×93 1200
YWGB1220.1220-93H14 1220×1220×93 2400
WGB1170.570-90H14 1170×570×90 1100
WGB1170.870-90H14 1170×870×90 1700
WGB1170.570-70H13 1170×570×70 1100
WGB1170.870-70H13 1170×870×70 1700
WGB1170.1170-70H13 1170×1170×70 2200
