A BIBO system also called Bag In Bag Out system is a safe filtration housing designed for hazardous environments. It allows filter replacement without exposing operators or the environment to harmful particles. In pharmaceutical, biotech, and laboratory clean rooms, safety and contamination control are critical. This is where the BIBO system plays an important role.
At LENGE Clean Room, BIBO systems are integrated into HVAC and clean room solutions to ensure safe filter handling, contamination control, and compliance with ISO and GMP standards.
The BIBO control system is widely used in high containment areas where toxic particles, viruses, or hazardous compounds are present. This article explains the design, working principle, components, advantages, and applications of the BIBO system in HVAC and clean room environments.
What Is a BIBO System
A BIBO system stands for Bag In Bag Out system. It is a containment filtration housing that allows safe replacement of contaminated filters.
The system uses a specially designed bag attached to the housing. When a filter needs replacement, the operator removes the used filter into the bag without direct contact. A new filter is inserted safely.
Key features include
- Airtight housing structure
- Safe filter removal mechanism
- Integrated glove ports
- Leak testing ports
- Strong sealing system
BIBO systems are commonly installed in HVAC units serving clean rooms and high risk facilities. LENGE Clean Room designs BIBO systems that match ISO clean room classifications. These systems help maintain safe airflow and protect personnel during maintenance operations.
Why BIBO System Is Important in Clean Rooms
Clean rooms require strict contamination control. In some industries, filters capture hazardous dust, pathogens, or toxic particles. Direct handling of these filters can expose workers to danger.
The BIBO system prevents this exposure. It ensures
- Operator safety
- Environmental protection
- Controlled filter replacement
- Compliance with GMP and safety regulations
In pharmaceutical manufacturing and biotechnology labs, containment is critical. A BIBO control system ensures that no hazardous particles escape during maintenance.
LENGE Clean Room integrates BIBO systems with advanced HVAC designs. This ensures clean air supply and safe exhaust management. Without BIBO systems, maintenance could compromise clean room sterility and worker safety.

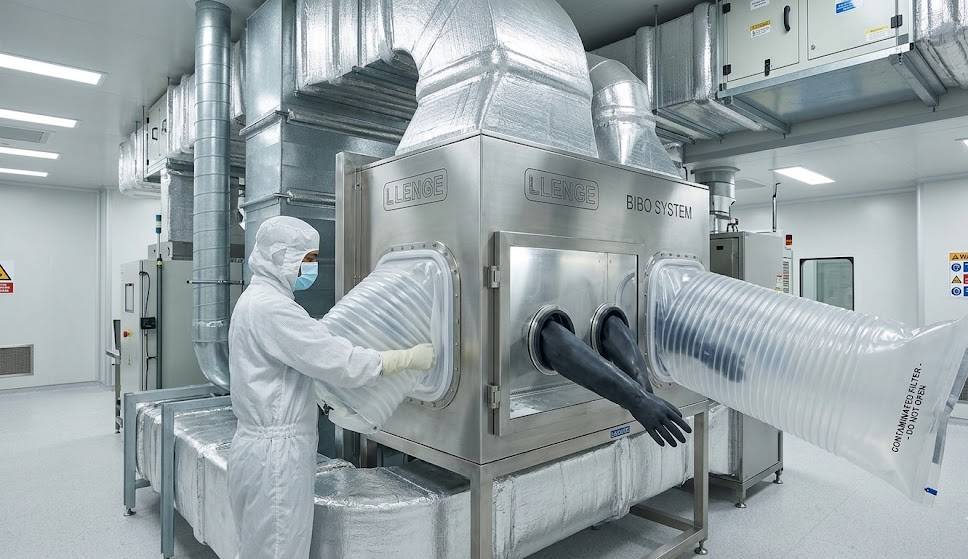

Working Principle of BIBO System
The BIBO system works through a controlled bagging process.
Basic working steps
- A containment bag is attached to the housing door
- The operator opens the door using glove ports
- The contaminated filter is pulled into the bag
- The bag is sealed and removed safely
- A new filter is inserted through a fresh containment bag
This process ensures no direct contact with hazardous materials.
Main operational components
- Filter housing
- Safety bag
- Clamping ring
- Access door
- Glove ports
The airtight design ensures that airflow is not disrupted during operation. LENGE Clean Room provides BIBO systems that support both supply and exhaust filtration systems.
BIBO System in HVAC
The BIBO system in HVAC is commonly used in high containment ventilation systems.
Applications in HVAC include
- Exhaust air filtration
- HEPA and ULPA filter housing
- Chemical laboratory ventilation
- Pharmaceutical production facilities
The HVAC BIBO system ensures
- Safe replacement of HEPA filters
- Protection against airborne contaminants
- Stable air pressure control
- Compliance with ISO Class standards
LENGE Clean Room integrates BIBO systems with clean room HVAC solutions. These systems maintain laminar airflow and contamination control. BIBO housing units are usually constructed from stainless steel for durability and corrosion resistance.
Components of BIBO Control System
The BIBO control system includes several essential components.
|
Component |
Function |
Importance |
|
Filter Housing |
Holds HEPA or ULPA filter |
Maintains airtight seal |
|
Containment Bag |
Safe removal of filter |
Prevents contamination |
|
Glove Ports |
Safe handling access |
Operator safety |
|
Clamping Ring |
Secures containment bag |
Leak prevention |
|
Pressure Gauge |
Monitors filter condition |
Ensures performance |
Each component plays a vital role in maintaining containment integrity. LENGE Clean Room designs BIBO systems with durable materials and tested sealing systems.
Types of BIBO Systems
Different industries require different configurations.
Common types include
- Single filter BIBO housing
- Multi stage BIBO system
- Supply air BIBO unit
- Exhaust air BIBO housing
- Custom modular BIBO system
Multi stage systems are used in high risk pharmaceutical facilities. LENGE Clean Room offers customizable BIBO systems based on airflow capacity and containment level.
Benefits of BIBO System
The BIBO system provides multiple advantages.
- Protects workers from hazardous exposure
- Maintains sterile environment
- Supports regulatory compliance
- Reduces risk of contamination
- Improves maintenance efficiency
- Ensures long term operational safety
The system is essential in industries handling toxic compounds or infectious agents. LENGE Clean Room ensures that each BIBO system meets international safety standards.
BIBS Insulation System vs BIBO System
The term BIBS insulation system is sometimes confused with BIBO system.
|
Feature |
BIBO System |
BIBS Insulation System |
|
Purpose |
Filter containment |
Building insulation |
|
Industry |
HVAC and clean room |
Construction |
|
Safety Role |
Protects from contaminants |
Thermal insulation |
|
Application |
Pharma labs |
Residential buildings |
The BIBS insulation system is unrelated to filtration containment. The BIBO system is specifically designed for safe filter handling in hazardous HVAC environments.
Applications of BIBO System
BIBO systems are widely used in
- Pharmaceutical manufacturing
- Biotechnology laboratories
- Hospital isolation wards
- Nuclear facilities
- Chemical processing plants
- Research laboratories
In pharmaceutical clean rooms, BIBO ensures that HEPA filters capturing toxic powder can be replaced safely. LENGE Clean Room provides BIBO systems tailored for clean room facilities worldwide.
Installation and Validation
Proper installation is critical.
Installation steps include
- Sealing housing to ductwork
- Leak testing
- Pressure monitoring setup
- Validation according to ISO and GMP
Validation ensures that containment works correctly. LENGE Clean Room supports installation and testing of BIBO systems in clean room HVAC projects.
Maintenance and Safety Guidelines
Regular maintenance ensures safe operation.
- Monitor pressure drop
- Inspect seals and gloves
- Replace bags carefully
- Conduct periodic leak tests
- Train operators properly
Following safety procedures prevents contamination risk. LENGE Clean Room provides maintenance guidance and technical support.
Why Choose LENGE Clean Room for BIBO System
LENGE Clean Room offers
- Custom BIBO housing design
- High quality stainless steel construction
- Compliance with ISO and GMP standards
- Integration with complete clean room solutions
- Technical support and validation services
Their expertise ensures reliable containment and HVAC performance.
Conclusion
The BIBO system is an essential containment solution in modern clean room and HVAC systems. It ensures safe filter replacement and protects both personnel and environment from hazardous exposure.
From pharmaceutical production to laboratory research, BIBO systems play a critical role in maintaining sterility and safety.
LENGE Clean Room provides advanced BIBO systems integrated with high performance HVAC solutions. Choosing the right BIBO control system ensures compliance, safety, and operational efficiency.
Frequently Asked Questions
What is a BIBO system in HVAC?
A BIBO system (Bag In Bag Out) is a containment filtration housing designed for safe HEPA filter replacement. It prevents exposure of operators and the environment to hazardous particles.
How does a BIBO control system work?
The BIBO system uses a sealed containment bag and glove ports. Contaminated filters are pulled into the bag, sealed, and removed safely. New filters are installed through a fresh bag, maintaining airtight conditions and preventing particle escape.
Where is the BIBO system used?
BIBO systems are widely used in pharmaceutical production, biotechnology labs, hospital isolation wards, chemical plants, nuclear facilities, and research laboratories. They ensure safe filter handling in areas with toxic particles, viruses, or hazardous compounds.
What is the difference between BIBO and BIBS insulation system?
The BIBO system is for filter containment and safe HEPA replacement in HVAC and cleanroom applications. The BIBS insulation system provides thermal and sound insulation in buildings. BIBO ensures contamination control, while BIBS focuses on energy efficiency and comfort in construction, not particle containment.
Why is BIBO important in clean rooms?
BIBO systems protect operators from exposure to toxic or hazardous particles during filter replacement. They maintain sterile airflow and prevent contamination in cleanroom environments.
Can BIBO systems be customized?
Yes, BIBO systems can be customized based on airflow capacity, filter size, containment level, and cleanroom classification. Modular designs allow integration with HVAC units of various scales.
What are the main benefits of a BIBO system?
BIBO systems ensure operator safety, protect the environment, and maintain sterile airflow. They reduce contamination risk, improve maintenance efficiency, and support ISO and GMP compliance.
