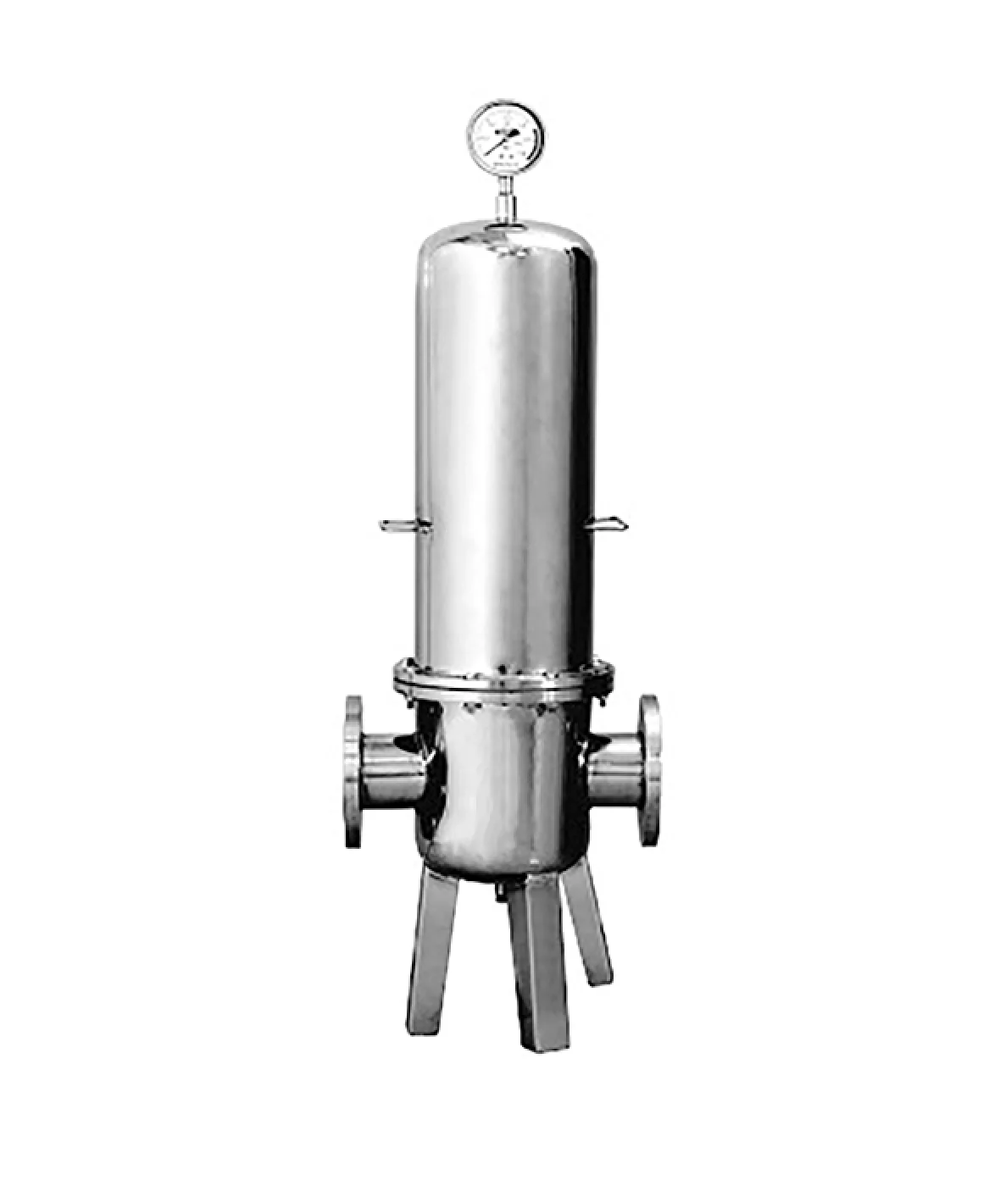

What Is a Coalescing Filter? How It Works and Where It’s Used

Oil in compressed air doesn’t announce itself. Neither does water mist in a gas pipeline, or liquid carryover in a fuel system. These are fine aerosols and droplets too small to drain by gravity on their own. A coalescing filter is the device that captures them and grows them into liquid that can.

A coalescing filter removes fine liquid droplets, oil mist, water aerosols, and selected solid particles from air, gas, or liquid streams by merging small droplets into larger ones until they’re heavy enough to drain. Used in compressed air systems, natural gas processing, oil and gas separation, fuel filtration, petrochemical production, industrial gas separation, and process liquid filtration.

What Is a Coalescing Filter?

A coalescing filter is a filtration device that uses the principle of coalescence: forcing tiny droplets to combine into progressively larger droplets until they drain away. The name comes from the Latin ‘coalescing’ — to grow together.

A normal particulate filter traps solid particles by size exclusion. A coalescing filter does something different: it captures fine liquid droplets — oil aerosol, water mist, condensate — and causes them to merge. The droplets grow until gravity or momentum carries them to the drain, leaving the air or gas stream clean.

The coalescer is not a separator. A separator removes bulk liquid that’s already formed into large drops. A coalescer handles the fine aerosol stage that a separator can’t reach — droplets measured in microns rather than millimetres.

How Does a Coalescing Filter Work?

Contaminated air, gas, or liquid enters the housing. It passes through the coalescing filter element. Fine droplets contact the filter media fibres, stick to them, and begin merging with neighbouring droplets. Small droplets become larger. Larger droplets become heavier. Heavy droplets eventually detach and drain downward into the sump or drain bowl. Cleaner air, gas, or liquid exits through the outlet.

The fibre structure inside a coalescing element matters more than pore size alone. Fine glass microfibre or synthetic media with controlled fibre geometry is designed so droplets are intercepted and held long enough to coalesce before the airflow carries them downstream. Once the merged droplet is large enough, gravity wins.

Atlas Copco describes coalescing filters as designed to remove oil aerosols, water droplets, and solid particulates from compressed air. Donaldson’s compressed-air filtration guidance lists coalescing filters as a key stage after initial bulk moisture separation — handling the aerosol fraction that bulk separators leave behind.

The drainage layer downstream of the coalescing element is as important as the element itself. If coalesced liquid isn’t drained efficiently, it gets re-entrained into the clean air or gas stream — undoing the filtration that just happened.

Main Parts of a Coalescing Filter

Filter housing: rated for operating pressure; directs inlet and outlet flow; includes drain bowl or sump; may have differential pressure indicator.

Coalescing filter element: the working component. Made from borosilicate glass microfibre, polypropylene, PTFE, or synthetic media. Captures aerosols and merges fine droplets. Element selection determines filtration efficiency, pressure drop, and service life.

Drainage layer: positioned downstream of the element to channel coalesced liquid downward and prevent re-entrainment into the clean stream.

Drain system: manual, automatic, float-operated, or timed drain removes collected liquid from the sump. A failed drain is one of the most common operational problems in coalescing filter installations.

Coalescing Filter vs. Particulate Filter

Most filtration systems use both types in sequence. The particulate filter upstream removes bulk solids that would load and damage the coalescing element prematurely.

Coalescing filters handle aerosols and droplets, not vapour-phase contamination. Atlas Copco notes that coalescing filters are effective for particulates and aerosols, but not all filters remove vapours. Activated carbon filtration is the standard downstream stage when oil vapour or odour removal is also required.

Types of Coalescing Filters

Air Coalescing Filter

Used in compressed air systems to remove oil aerosol, water droplets, and wet dust from the airstream. Protects pneumatic tools, valves, instruments, paint lines, food production lines, and medical air systems.

Gas Coalescing Filter / Gas Coalescer

Removes liquid carryover and mist from natural gas and process gas streams. Protects compressors, flow meters, regulators, and downstream process equipment. Gas quality requirements in processing plants and pipelines drive the selection of both element efficiency and housing design.

LENGE supplies gas filter housings for process gas and industrial gas filtration applications.

Oil Coalescer

Used for oil-water separation — removing dispersed water from lube oil, hydraulic oil, and fuel systems. The coalescing element grows dispersed water droplets until they separate by density difference and drain from the oil phase.

Fuel Coalescer

Removes water from diesel, jet fuel, and other fuel streams. Protects engines, pumps, and injectors from water contamination and microbial growth. Aviation fuel filtration standards require tight control over water content and particle load.

Liquid-Liquid Coalescer

Used when one liquid phase must be separated from another — water from oil, or one solvent from another immiscible liquid. Common in chemical, petrochemical, and refining applications where continuous phase separation is part of the process.

LENGE’s liquid filter housings support process liquid filtration in industrial and pharmaceutical applications.

Coalescing Filter for Air Compressor Systems

Compressed air from lubricated compressors contains oil. Not a lot, but enough to damage instruments, contaminate products, and shorten equipment life. It comes out as fine aerosol — droplets in the sub-micron to 5-micron range — mixed with water vapour that condenses as the air cools after the compressor.

A coalescing filter for an air compressor system is typically installed:

• After the compressor aftercooler and initial moisture separator
• Before the air dryer (to protect the desiccant bed from oil contamination)
• After the dryer as a final polishing stage
• Immediately before sensitive process equipment, instruments, or production lines

Donaldson’s compressed-air filtration guidance recommends coalescing filters for removing fine liquid aerosols — including oil and water — after initial bulk separation. Without the coalescing stage, fine aerosols pass through the bulk separator and reach the downstream equipment.

Applications of Coalescing Filters

Compressed Air

• Pneumatic tools, cylinders, and valves
• Paint spraying — oil in air causes paint defects
• Food and beverage production where food-contact air quality is regulated
• Electronics manufacturing and sensitive assembly
• Medical air systems
• Instrument air for control systems

Natural Gas Processing

Water vapour and hydrocarbon liquids carried over from the wellhead contaminate gas pipelines and processing equipment. Coalescing filters remove this liquid carryover before it reaches compressors, meters, and valves. Liquid in a gas compressor damages valves and seals within hours.

Oil, Gas, and Refinery

Fuel gas conditioning, liquid hydrocarbon separation, refinery process streams, and water-oil separation. In refinery applications, coalescer-separator systems are common where one stage grows the droplets and the next removes them.

Chemical and Petrochemical

Product purification, solvent separation, gas-liquid separation, and process-fluid protection. Chemical process streams often carry entrained liquid from reaction vessels, condensers, or transport lines.

Industrial Equipment Protection

Valves, regulators, meters, compressors, nozzles, and actuators all fail faster when exposed to liquid contamination that wasn’t removed upstream. Coalescing filtration is the protection stage that extends equipment life between maintenance intervals.

Benefits of Using a Coalescing Filter

• Cleaner compressed air and process gas streams
• Reduced oil carryover to downstream equipment and products
• Less corrosion from water droplets in metal pipework and components
• Fewer blocked valves, instruments, and orifices
• Lower maintenance downtime and parts replacement frequency
• Longer service life for downstream dryers, filters, and equipment
• Better product quality in processes where air or gas contacts the product

Donaldson describes coalescing filter elements as supporting oil mist removal, liquid/gas coalescence, and contaminant retention at low pressure drop in compressed air applications. Low pressure drop matters operationally: excess restriction increases compressor energy use and reduces available system pressure.

Coalescing Filter Element Materials

Borosilicate glass microfibre: the standard for high-efficiency coalescing in compressed air and gas systems. Fine glass fibres capture sub-micron aerosols. Common in both general-purpose and high-efficiency coalescing elements.

Polypropylene: good chemical resistance. Suited to selected liquid-phase applications and process filtration where glass fibre isn’t compatible with the fluid.

PTFE: strong chemical resistance. Used for aggressive gases or chemicals where other media degrade. Hydrophobic PTFE is naturally resistant to water wetting.

For process gas and chemical applications: LENGE’s PTFE pleated filter cartridges and PVDF pleated filter cartridges are used in applications where chemical resistance is the primary material selection factor.

Synthetic fibre media: general-purpose coalescing elements where specific efficiency requirements or chemical resistance don’t require glass or PTFE. Can be engineered for different pressure drop and separation performance.

Material choice depends on the fluid chemistry, operating temperature and pressure, chemical compatibility, and the required separation efficiency. Confirm compatibility for every wetted component — not just the filter media.

Coalescing Filter Ratings and Performance Factors

What to check before specifying a coalescing filter element:

• Micron rating and oil carryover rating
• Removal efficiency (percentage of aerosol removed at rated conditions)
• Rated flow at operating pressure
• Initial and final pressure drop limits
• Maximum operating pressure and temperature
• Element media, outer wrap material, and seal material
• Drain design and drain capacity for the expected liquid load
• Housing material compatibility with the gas or liquid

Pressure drop matters beyond the filter performance itself. Atlas Copco notes that lower pressure drop improves energy efficiency in compressed air filtration — higher resistance means the compressor works harder to maintain system pressure, which costs energy continuously.

Liquid–Liquid Coalescing Systems

How to Choose the Right Coalescing Filter

Step 1: Identify the Fluid Stream

Compressed air, natural gas, process gas, fuel, oil, water-oil mixture, or chemical liquid. The fluid type determines the housing material, element media, and drain design.

Step 2: Define the Contaminant

Oil aerosol, water droplets, condensate, liquid carryover, solid particles, emulsified liquid. A coalescing filter handles liquid-phase contamination. Vapour-phase oil requires an activated carbon stage downstream.

Step 3: Confirm Flow Rate, Pressure, and Temperature

Operating pressure, maximum flow rate, temperature, and the system’s allowable pressure drop. An undersized coalescing filter creates excessive restriction; an oversized one has lower face velocity, which reduces coalescence efficiency. Both extremes hurt performance.

Step 4: Select the Efficiency Grade

General-purpose coalescing for bulk liquid removal upstream. High-efficiency grade for fine aerosol removal before sensitive equipment. Many systems use two stages in series: a general-purpose pre-coalescer followed by a high-efficiency final coalescer.

Step 5: Check Full System Compatibility

Filter media, housing material, O-rings and seals, drain type, and cleaning chemistry all need to be compatible with the fluid. A borosilicate glass element in the wrong housing with incompatible seals fails at the weakest point.

Step 6: Plan Replacement and Drain Maintenance

• Install differential pressure monitoring or indicator
• Establish a scheduled element replacement interval based on measured pressure drop
• Inspect automatic drains regularly — a failed drain causes liquid re-entrainment
• Confirm replacement element specifications match the OEM design

Installation and Maintenance Tips

• Install in the correct flow direction as marked on the housing
• Mount with the drain bowl accessible and positioned to drain by gravity
• Install a particulate pre-filter if the upstream stream carries heavy solid contamination
• Keep the automatic drain operating — test it regularly
• Never exceed the rated operating pressure or temperature
• Monitor differential pressure across the element; rising pressure drop signals loading
• Replace elements before pressure drop exceeds the manufacturer’s limit
• Check for oil or water carryover downstream as a service indicator
• Use verified replacement elements that match the housing specifications

Common Problems and Troubleshooting

Coalescing Filter vs. Separator Filter

These two terms describe different stages of the same process. A coalescer grows small droplets into large ones. A separator removes those large droplets from the flow stream.

They work together: the coalescer element first merges the fine aerosol into larger drops, then a separator stage removes the large drops from the gas or air stream. In fuel and gas systems, coalescer-separator designs in a single housing are common because doing both in sequence in one unit is more efficient than two separate housings.

Running a separator alone without a coalescer upstream handles bulk liquid but leaves fine aerosol downstream. Running a coalescer without adequate drainage and separation causes re-entrainment. Both stages matter.

LENGE Filter Products for Process Filtration

LENGE supplies process filter housings and filtration components used upstream or downstream of coalescing stages in selected industrial and pharmaceutical applications. These products are intended for particulate and process filtration and should not be considered substitutes for dedicated coalescing filter elements. When specifying a coalescing system, select a validated coalescer element designed for the required fluid, aerosol loading, operating pressure and drainage performance.

LENGE manufactures filter cartridges, elements, and housings for pharmaceutical, biopharmaceutical, food, beverage, chemical, and industrial process filtration. For applications where coalescing or process-liquid filtration requires matched media selection, housing design, and reliable replacement supply:

Browse the LENGE pleated filter cartridge range for PP, PVDF, PTFE, PFA, PES, and GF membrane cartridge options.

Cartridge material, pore size, housing compatibility, O-ring material, and cartridge length can all be matched to the process conditions and filtration grade required.

Contact LENGE for specifications and sourcing: contact LENGE

Conclusion

A coalescing filter removes fine liquid droplets, oil mist, and water aerosols by merging them into larger droplets that drain away. It handles what a bulk separator can’t reach: the fine aerosol fraction in compressed air, gas streams, fuel systems, and oil-water separation.

The right coalescer element depends on the fluid type, contaminant, flow rate, operating pressure, element media, and drainage design. Check system conditions before specifying: an oversized element, wrong media, or failed drain can each undermine the filtration it was installed to provide.

FAQs

What is a coalescing filter?

A filtration device that removes fine liquid droplets, oil mist, and water aerosols from air, gas, or liquid streams by causing small droplets to merge into larger ones. The larger droplets become heavy enough to drain away, leaving the stream clean.

How does a coalescing filter work?

Fine droplets contact the fibre media inside the element and stick to it. As more droplets arrive, they merge with existing ones. The droplet grows. When it’s heavy enough, it detaches and drains downward. The cleaned air or gas exits through the outlet. The drainage layer controls whether the coalesced liquid actually drains or gets blown back into the clean stream.

What does a coalescing filter remove?

Removes: oil aerosol, water droplets, condensate, liquid carryover, wet particulate matter.

Does not remove: oil vapour, gaseous contaminants, odour — those require activated carbon downstream.

What is a coalescing filter used for in an air compressor?

Removing oil aerosol and water droplets from compressed air after initial moisture separation. It’s typically installed after the aftercooler and separator, before the dryer, and at point-of-use before sensitive equipment. Without it, fine oil aerosol from lubricated compressors reaches the downstream system where it contaminates products, blocks instruments, and damages valves.

Does a coalescing filter remove water vapor?

No. Vapour-phase water isn’t captured by a coalescing element. Coalescing filters handle liquid droplets and mist — water that has already condensed into the liquid phase. For vapour-phase moisture removal, a refrigerant or desiccant air dryer is required.

Does a coalescing filter remove oil vapor?

No. Same reason as water vapour. Oil vapour is in the gas phase and passes through the coalescing element. Activated carbon filtration downstream is required for vapour-phase oil removal.

What is the difference between a coalescing filter and a particulate filter?

• Particulate filter: traps solid particles (dust, rust, scale) by size exclusion
• Coalescing filter: captures fine liquid droplets and merges them into drainable liquid
• Most systems use both: particulate filter upstream to protect the coalescing element from solid loading

What is the difference between a coalescer filter and a separator filter?

A coalescer grows fine aerosol droplets into large drops. A separator removes those large drops from the flow stream. They work in sequence: coalescer first, separator after. Running a separator alone leaves fine aerosol downstream. Running a coalescer without proper drainage and separation causes re-entrainment.

How often should coalescing filter elements be replaced?

Depends on the system. Differential pressure monitoring is the reliable indicator — replace when pressure drop reaches the element manufacturer’s limit. Calendar-based replacement is a fallback where differential pressure monitoring isn’t installed. In high-oil or high-moisture systems, service intervals are shorter.

What causes high pressure drop in a coalescing filter?

Two causes. The element has loaded with retained liquid and solid contamination, increasing flow resistance. Or the filter is undersized for the actual flow rate. Both raise pressure drop. A saturated element that can’t drain also contributes.

Can a coalescing filter be used for oil-water separation?

Yes. Oil-water coalescer elements are designed for this. The element promotes the growth of dispersed water droplets in an oil stream (or oil droplets in a water stream), until they separate by density and drain. Common in lube oil, hydraulic oil, and fuel systems. The element media, housing design, and drainage all need to be matched to the specific liquid phases and flow rates.

How do I choose the right coalescing filter element?

Start with the fluid and the contaminant. Oil aerosol in compressed air needs a different element from liquid carryover in a gas pipeline or water in diesel fuel. Confirm flow rate, operating pressure, temperature, and allowable pressure drop. Check element media compatibility with the fluid. Select the efficiency grade based on the downstream equipment’s sensitivity. Plan the drain system before installing the element.
