A dynamic pass box is a critical contamination control device used in cleanroom environments. It allows safe transfer of materials between areas with different cleanliness classifications. In pharmaceutical and biotechnology industries, material movement must not compromise air quality.
LENGE Clean Room provides advanced cleanroom dynamic pass box systems designed for high efficiency filtration and GMP compliance. These systems integrate HEPA filters, blower units, and interlocking doors to prevent cross contamination.
Unlike static pass boxes, dynamic pass boxes actively circulate and filter air inside the chamber. This ensures that transferred materials are exposed to clean air before entering critical areas.
This article explains the design, working principle, technical features, applications, and benefits of dynamic pass boxes in cleanroom operations.
What Is a Dynamic Pass Box

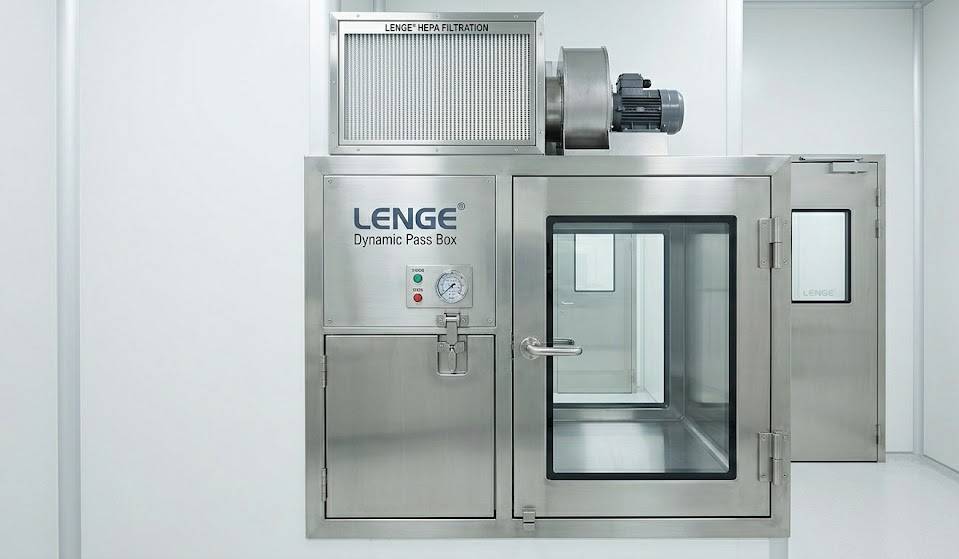

A dynamic pass box is a material transfer chamber installed between two cleanroom areas. It is equipped with HEPA filtration and active airflow.
Main purposes include
- Safe material transfer
- Contamination control
- Airborne particle reduction
- Compliance with cleanroom standards
Dynamic pass boxes operate with a built in blower system. The air inside the chamber passes through a HEPA filter. This creates a particle controlled environment before the material is moved into the next room.
LENGE Clean Room manufactures pass box dynamic systems using high quality stainless steel and advanced sealing technology. These units are designed according to GMP and ISO standards.
Importance in Cleanroom Operations
Material transfer is one of the highest risk points for contamination. Every time a door opens, particles can enter controlled areas.
A cleanroom dynamic pass box reduces this risk by
- Filtering chamber air continuously
- Using interlocked doors
- Maintaining pressure balance
- Preventing simultaneous door opening
This system protects sterile production zones from external contamination. LENGE dynamic pass boxes are commonly installed between Grade B and Grade C areas or between controlled and non controlled spaces. Proper use ensures safe workflow and product integrity.
Working Principle of Dynamic Pass Box
The working process is simple but effective.
Step by step operation
- Material is placed inside the chamber
- First door is closed
- Blower activates HEPA filtration
- Air is circulated and filtered
- Second door unlocks after cycle completion
The HEPA filter removes 99.99 percent of particles at 0.3 microns. The airflow ensures the chamber meets required cleanliness before transfer. LENGE Clean Room systems include microprocessor control for timing and airflow regulation. This controlled cycle ensures reliable contamination control.
Dynamic vs Static Pass Box
Understanding the difference helps in selecting the right system.
|
Feature |
Static Pass Box |
Dynamic Pass Box |
|
Airflow |
No active airflow |
HEPA filtered airflow |
|
Filtration |
Not included |
HEPA filtration |
|
Application |
Same grade rooms |
Different grade rooms |
|
Cost |
Lower |
Higher |
|
Contamination Control |
Basic |
Advanced |
Dynamic pass boxes are preferred for high risk pharmaceutical environments. LENGE Clean Room offers both static and dynamic solutions based on project requirements.
Design and Construction Features
LENGE dynamic pass boxes are designed for durability and hygiene.
Key design features include
- SUS 304 or SUS 316 stainless steel body
- Smooth internal surfaces
- Rounded corners for easy cleaning
- Tempered glass viewing windows
- Electromagnetic interlocking doors
The design minimizes dust accumulation and simplifies sanitation. Gasket sealed doors prevent air leakage. The modular structure allows easy integration into cleanroom walls.
HEPA Filtration System
HEPA filtration is the core of dynamic pass boxes.
Key filtration characteristics
- Efficiency 99.99 percent at 0.3 microns
- Gel seal or gasket seal options
- Replaceable filter modules
- High airflow stability
Air is drawn from the chamber and passed through the HEPA filter before recirculation. This process reduces airborne contamination inside the pass box. LENGE Clean Room uses reliable fan filter units to maintain consistent airflow performance. Optional UV sterilization can be added for enhanced disinfection.
Interlocking and Safety Mechanisms
Interlocking doors are essential for contamination control.
Dynamic pass boxes include
- Mechanical interlock system
- Electromagnetic interlock system
- LED status indicators
- Emergency release function
The interlock prevents both doors from opening at the same time. This ensures pressure difference between rooms is maintained. LENGE Clean Room integrates advanced control systems to enhance operational safety.
Applications in Pharmaceutical Industry
Dynamic pass boxes are widely used in
- Sterile manufacturing plants
- Aseptic processing areas
- Sampling and dispensing rooms
- Biotechnology laboratories
- Research facilities
In pharmaceutical production, raw materials and tools are frequently transferred between areas. A cleanroom dynamic pass box ensures that these materials do not carry contaminants into critical zones. LENGE Clean Room solutions are tailored to pharmaceutical facility requirements.
Installation and Validation
Proper installation ensures optimal performance.
Installation steps include
- Wall integration
- Electrical connection
- HEPA filter leak testing
- Airflow validation
- Interlock testing
Validation confirms compliance with GMP and ISO standards. LENGE Clean Room provides technical support during installation and commissioning. Routine validation ensures consistent cleanroom performance.
Maintenance and Cleaning
Regular maintenance is essential.
Maintenance procedures include
- Cleaning internal surfaces
- Monitoring pressure drop
- Replacing HEPA filters
- Checking blower performance
- Testing interlock function
Stainless steel construction allows easy cleaning and disinfection. LENGE Clean Room provides maintenance guidance to extend equipment lifespan.
Advantages of LENGE Dynamic Pass Boxes
Choosing LENGE Clean Room offers
- High quality stainless steel construction
- Reliable HEPA filtration
- GMP compliant design
- Custom size options
- Advanced control systems
- Strong after sales support
These benefits ensure long term operational efficiency and safety. LENGE solutions integrate seamlessly into cleanroom environments.
Future Trends in Pass Box Design
Modern cleanroom equipment is evolving.
Future trends include
- Touchless operation
- Smart monitoring systems
- Energy efficient blower motors
- Integrated data logging
- Improved sealing technology
LENGE Clean Room continues to innovate to meet global pharmaceutical standards. Advanced dynamic pass boxes enhance safety and operational control.
Conclusion
A dynamic pass box is essential for contamination free material transfer in cleanrooms. With active HEPA filtration and interlocking doors, it ensures safe movement between areas of different cleanliness grades.
LENGE Clean Room provides high quality cleanroom dynamic pass box systems designed for pharmaceutical, biotechnology, and laboratory applications. These systems ensure compliance, efficiency, and product integrity.
Selecting the right dynamic pass box improves cleanroom safety and supports regulatory requirements.
Frequently Asked Questions
What are clean room doors?
Clean room doors are specialized doors designed for controlled environments. They maintain sterility, regulate air pressure, and support ISO Class standards. These doors are critical in pharmaceutical, biotech, and electronics facilities to prevent contamination and protect sensitive processes.
Why are clean room doors important?
Clean room doors prevent contamination from personnel and materials while maintaining positive or negative pressure zones. They help ensure compliance with GMP and ISO standards. Proper doors improve operational efficiency, energy usage, and overall safety in sterile and controlled environments.
What materials are used for clean room doors?
Common clean room door materials include stainless steel (SUS 304/316L), powder-coated aluminum, PVC/composite panels, and tempered glass. These materials are durable, corrosion-resistant, and easy to clean.
What types of clean room doors exist?
Clean room doors include sliding, swing, hermetic, automatic, and pass-through designs. Sliding doors are ideal for high-traffic areas, while hermetic doors provide airtight seals for ISO Class 5–6 zones.
How do door gaskets work in clean rooms?
Door gaskets create airtight seals that prevent air leaks and particle entry. EPDM, silicone, magnetic, and brush seals are used based on ISO class and contamination risk. s.
Can clean room doors be automated?
Yes, clean room doors can feature sensor-operated sliding or swing mechanisms. Automation reduces manual contact, lowers contamination risk, and improves workflow efficiency.
Where are clean room doors used?
Clean room doors are used in pharmaceutical manufacturing, biotechnology labs, hospitals, food and beverage sterile production, and electronics manufacturing. They maintain ISO class standards, control contamination, and support air pressure regulation.
