In cleanroom and pharmaceutical environments, controlling airborne contamination is critical. One of the most effective technologies used to maintain sterile conditions is laminar flow. From pharmaceutical manufacturing to laboratory research, laminar airflow systems ensure ultra-clean environments by delivering uniform, particle-free air across a controlled workspace.
In this guide, we explain what laminar flow is, how laminar flow works, its types, applications, and why LENGE Cleanroom laminar airflow systems are trusted worldwide.
What Is Laminar Flow?
Laminar flow refers to smooth, unidirectional airflow where air moves in parallel layers without turbulence. In cleanroom technology, laminar airflow continuously pushes filtered air in a single direction to remove airborne particles and maintain sterile conditions.
Laminar flow is widely used in:
- Pharmaceutical cleanrooms
- Biotechnology laboratories
- Sterile manufacturing environments
- Medical and hospital facilities
- Electronics and precision manufacturing
How Does Laminar Flow Work?
A laminar air flow system works by passing air through high-efficiency HEPA filters and delivering it in a controlled, uniform stream across the work area. This airflow sweeps away particles, preventing contamination.
Key Working Steps
- Air is drawn into the system by a blower
- Pre-filters remove large particles
- HEPA filters capture 99.97%–99.9995% of fine particles
- Clean air flows uniformly in one direction
- Contaminated air is pushed out of the workspace
Result
- Sterile, particle-free environment
- Reduced cross-contamination
- Controlled cleanroom conditions
Types of Laminar Flow
Laminar flow systems are generally divided into two types:
Horizontal Laminar Flow
- Air moves from back to front
- Suitable for non-hazardous applications
- Common in laboratory benches
Vertical Laminar Flow
- Air flows from top to bottom
- Provides stronger contamination control
- Used in pharmaceutical and sterile production
Key Components of a Laminar Flow System
A high-quality laminar flow system typically includes:
- HEPA filter module (H14 efficiency)
- Air blower / fan system
- Stainless steel housing (SUS 304 / 316L)
- Control panel / touch screen
- LED lighting
- Differential pressure gauge
- Air return system
These components work together to ensure consistent airflow and Class A cleanliness.
LENGE Cleanroom Laminar Airflow Products
LENGE Cleanroom manufactures advanced laminar airflow equipment designed for pharmaceutical and cleanroom environments.

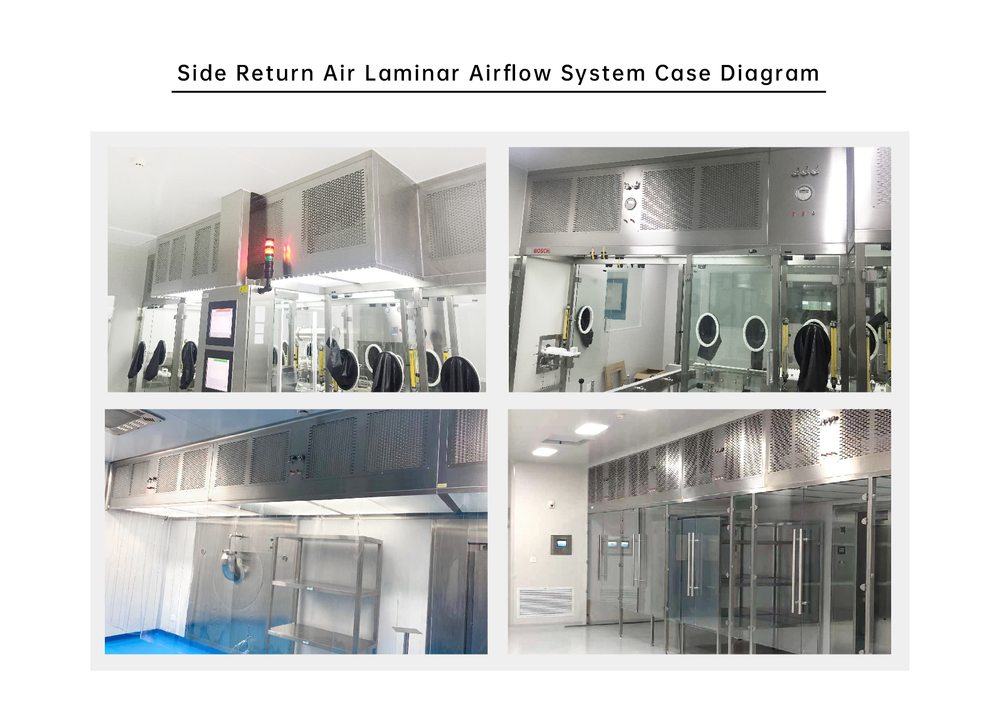

Laminar Airflow System
Key Specifications
|
Feature |
Details |
|
Material |
SUS 304 / 316L Stainless Steel |
|
Cleanliness |
Class A |
|
Noise |
65 – 75 dB |
|
Air Velocity |
0.45 ± 20% m/s |
|
Filter Module |
Panel Filter + Gel HEPA |
|
Control |
Panel / Touch Screen / Remote |
|
Power Supply |
220V, 50Hz |
Features
- Provides HEPA-filtered unidirectional airflow
- Maintains sterile environment
- Adjustable fan speed
- Built-in LED lighting
- Differential pressure monitoring
- Uniform airflow distribution
Applications
- Pharmaceutical manufacturing
- Aseptic processing
- Sterile packaging
- Biotechnology research
Laminar Airflow Trolley
Laminar airflow trolleys are designed for aseptic product transfer between cleanroom areas.
Key Specifications
|
Feature |
Details |
|
Material |
SUS 304 / 316L |
|
Cleanliness |
Class A |
|
Air Velocity |
0.45 ± 20% m/s |
|
HEPA Filter |
H14 Gel Seal |
|
Power |
UPS battery (2–4 hours) |
|
Noise |
65 – 75 dB |
Key Features
- Maintains sterile airflow during transport
- Horizontal or vertical laminar flow options
- Independent power supply
- 360° rotating wheels with brakes
- DOP test port for HEPA integrity testing
Applications
- Pharmaceutical product transfer
- Sterile material handling
- Cleanroom logistics
Laminar Airflow Work Bench
Laminar flow cabinets provide ultra-clean workspace for sensitive operations.
Key Specifications
|
Feature |
Details |
|
Material |
SUS 304 / 316L |
|
Cleanliness |
Class A |
|
Air Velocity |
0.45 ± 20% m/s |
|
Noise |
Low-noise design |
|
Filter |
HEPA + Prefilter |
|
Optional |
UV Disinfection |
Features
- Quiet airflow design
- Corrosion-resistant stainless steel interior
- Airflow alarm for safety
- Energy-efficient reduced flow mode
- Negative pressure side wall plenums
- Easy HEPA filter replacement
Applications
- Laboratory research
- Drug compounding
- Microbiology testing
- Pharmaceutical production
Benefits of Laminar Flow
Laminar flow systems provide significant advantages in contamination control:
- Ensures sterile and particle-free air
- Reduces cross contamination
- Protects sensitive products
- Improves product quality and safety
- Essential for cleanroom compliance
- Provides uniform airflow distribution
- Enhances pharmaceutical process reliability
Laminar Flow vs Turbulent Flow
|
Feature |
Laminar Flow |
Turbulent Flow |
|
Air Movement |
Smooth, parallel |
Chaotic, mixed |
|
Particle Control |
Excellent |
Poor |
|
Cleanroom Use |
Yes |
Limited |
|
Contamination Risk |
Low |
High |
|
Air Direction |
Unidirectional |
Multi-directional |
Applications of Laminar Flow
Laminar airflow systems are critical in many industries:
Pharmaceutical Manufacturing
- Aseptic processing
- Sterile drug production
- Contamination-free packaging
Biotechnology & Research
- Cell culture work
- Microbiology testing
- Nanotechnology research
Healthcare & Medical
- Compounding pharmacies
- Sterile preparation areas
- Medical device manufacturing
Industrial Cleanrooms
- Electronics assembly
- Semiconductor production
- Precision engineering
Why Choose LENGE Cleanroom Laminar Flow Systems?
LENGE Cleanroom offers advanced laminar airflow technology backed by 26+ years of cleanroom manufacturing expertise.
Key Advantages
- Class A cleanroom compliance
- SUS304 / 316L stainless steel construction
- High-efficiency HEPA filtration (H14)
- Low noise and energy efficient design
- Custom-built solutions available
- ISO certified manufacturing (ISO 9001, 14001, 45001)
- Long-lasting and reliable performance
Maintenance of Laminar Flow Systems
Proper maintenance ensures long-term performance:
- Replace prefilters regularly
- Monitor HEPA filter pressure drop
- Clean stainless steel surfaces
- Check airflow velocity periodically
- Test HEPA filter integrity (DOP test)
Final Thoughts / Conclusion
Laminar flow is a fundamental technology for achieving sterile, contamination-free environments in cleanrooms, laboratories, and pharmaceutical manufacturing. By delivering uniform, HEPA-filtered unidirectional airflow, laminar flow systems effectively remove airborne particles, reduce cross-contamination, and protect sensitive products and processes.
From laminar flow cabinets and work benches to advanced laminar airflow systems and mobile trolleys, LENGE Cleanroom provides reliable solutions engineered for Class A cleanliness, consistent airflow, and long-term performance. With high-efficiency H14 HEPA filtration, stainless steel construction, and ISO-certified manufacturing, LENGE laminar flow equipment helps pharmaceutical and cleanroom facilities maintain strict sterility and quality standards.
As industries continue to demand higher levels of cleanliness and precision, investing in a high-quality laminar airflow system is essential for ensuring product safety, regulatory compliance, and operational excellence.
Frequently Asked Questions
What is laminar flow used for?
Laminar flow provides smooth, unidirectional airflow to maintain sterile, particle-free environments. It is essential in cleanrooms, laboratories, and pharmaceutical production. By minimizing contamination, it protects sensitive products and ensures regulatory compliance.
What is a laminar flow hood?
A laminar flow hood is a workstation that delivers HEPA-filtered air in a unidirectional stream. It protects products from airborne particles during sensitive operations. Common applications include drug compounding, microbiology testing, and electronics assembly.
What is the difference between laminar flow and turbulent flow?
Laminar flow moves in smooth, parallel layers, preventing particle mixing. Turbulent flow is chaotic and multidirectional, increasing contamination risk. Cleanrooms rely on laminar airflow for consistent sterility and reduced cross-contamination.
What is a laminar flow cabinet?
A laminar flow cabinet is an enclosed workstation providing HEPA-filtered, unidirectional airflow. It ensures a sterile environment for laboratory, pharmaceutical, or biotechnology operations. Cabinets can be vertical or horizontal, depending on application requirements.
What cleanliness level does laminar airflow provide?
Laminar flow systems, such as those from LENGE Cleanroom, achieve Class A cleanliness. This level meets stringent pharmaceutical and biotech standards for sterile processing. It ensures particle-free conditions and protects sensitive products.
What airflow velocity is used in laminar flow systems?
Typical laminar flow systems maintain an airflow velocity of 0.45 ±20% m/s. This uniform speed effectively removes airborne particles. Consistent airflow ensures a controlled, contamination-free workspace.
How often should HEPA filters be replaced in laminar flow systems?
HEPA filter replacement depends on pressure drop, airflow, and usage. Filters are usually replaced when resistance reaches the final limit. Regular monitoring ensures optimal filtration and maintains sterile cleanroom conditions.
