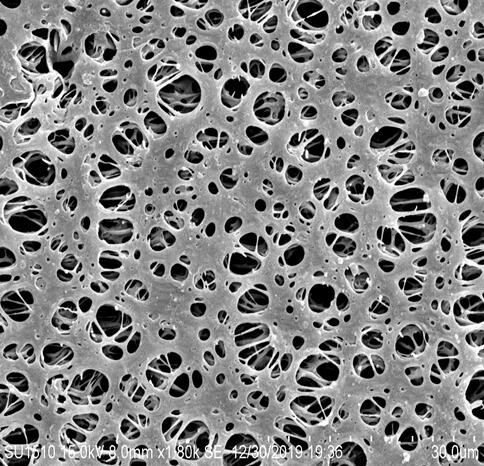

Difference Between PES and PVDF Filter Membrane

In cleanroom and pharmaceutical filtration, selecting the right membrane is crucial. Two commonly used membranes are PES (Polyethersulfone) and PVDF (Polyvinylidene fluoride). Both membranes serve similar purposes, such as sterile filtration, particle removal, and purification. However, they differ in chemical compatibility, protein binding, hydrophilicity, and application suitability.

At LENGE Clean Room, PES membranes are manufactured using proprietary cleanroom technology. PES membranes are hydrophilic, have low protein binding, and provide excellent flow rates and bacterial retention. PVDF membranes, in contrast, are often hydrophobic but can be treated to become hydrophilic. They offer superior chemical and thermal resistance compared to PES.

Understanding these differences helps industries such as pharma, biotech, and food & beverage choose the right filter for applications ranging from vaccine sterilization to water purification.

PES Membrane Overview

Polyethersulfone (PES) is a hydrophilic membrane known for high performance in filtration. Key characteristics include:

• Hydrophilic structure for fast wetting
• Low protein binding for maximum recovery of active ingredients
• High bacterial retention ≥ 10⁷ CFU/cm² for 0.22 µm rated membranes
• Wide chemical compatibility
• Compatible with sterilization methods including autoclaving, gamma irradiation, and EtO
• Manufactured in cleanrooms under ISO 9001, ISO 14001, and ISO 45001 standards

Applications: sterile filtration of liquids, water purification, air filtration in laminar airflow systems, and pharmaceutical process filtration.

PVDF Membrane Overview

Polyvinylidene Fluoride (PVDF) is a thermoplastic fluoropolymer membrane often used in filtration where chemical resistance is required. Key characteristics include:

• Naturally hydrophobic, can be treated to be hydrophilic
• High resistance to acids, bases, and solvents
• Very low protein binding when hydrophilic treated
• Can operate at high temperatures
• Sterilizable by gamma irradiation or autoclaving
• Strong mechanical properties suitable for challenging conditions

Applications: aggressive chemical filtration, solvent filtration, pharmaceutical sterilization, and industrial water filtration.

Material Composition and Structure

This table highlights the structural differences that influence application selection.

PES Membrane Features

At LENGE Clean Room, PES membranes have advanced features:

• Built-in asymmetric prefilter for high flow and throughput
• Excellent wetting and hydrophilicity for fast filtration
• Low protein binding for maximum transmission of active ingredients
• Compatible with EtO, gamma irradiation, and SIP/autoclave sterilization
• Tested for bacterial retention using Brevundimonas diminuta
• Reusable with consistent bubble point and flow rate performance

These features make PES suitable for pharmaceutical, biotech, and food & beverage applications.

PVDF Membrane Features

PVDF membranes offer unique advantages in chemical and thermal resistance:

• Resistant to harsh chemicals, solvents, and high pH solutions
• High thermal stability enables high-temperature filtration
• Can be made hydrophilic for biopharmaceutical use
• Low protein binding in hydrophilic form
• Durable and resistant to mechanical stress
• Suitable for high-purity water and aggressive process fluids

PVDF is chosen when chemical compatibility or high-temperature resistance is critical.

PES Pleated Filter Cartridges

LENGE PES pleated filter cartridges are constructed for high efficiency:

• Hydrophilic PES membrane
• PP support and drainage structure
• PP core, cover, end caps
• Sealed leads/fins reinforced with stainless steel
• Thermal bonding without adhesives
• Diameter: 2.75" (69 mm)
• Lengths: 5", 10", 20", 30", 40"
• Bubble point: 0.22 µm >0.32 MPa

Applications: LVP filtration, vaccines, animal serum, diagnostic reagents, terminal beverage filtration.

Filtration Performance Comparison

This table helps users select membranes based on process conditions.

Applications in Pharmaceutical Industry

PES Membrane:

• Sterile filtration of LVP and vaccines
• Eye drops, diagnostic reagents, biologics
• Animal serum filtration
• Buffer and media sterilization

PVDF Membrane:

• Solvent filtration in drug formulation
• High-temperature filtration
• Filtration of acids, bases, and organic solvents
• High-purity water systems

Applications in Food & Beverage

PES Membrane:

• Bottled water terminal filtration
• Soft drinks and syrups
• Beer and wine filtration
• Low protein binding preserves ingredients

PVDF Membrane:

• Chemical-resistant beverage processing
• Filtration of high-sugar or acidic solutions
• High-temperature pasteurized liquids
• Reusable in harsh conditions

Chemical and Thermal Compatibility

PVDF is preferable for aggressive chemical environments, while PES is ideal for aqueous and biopharmaceutical applications.

Dirt Holding Capacity and Reusability

PES Membranes:

• Tested with fermentation broth and 2.5% bovine serum
• Reusable up to multiple sterilization cycles
• Maintains flow rate and bubble point

PVDF Membranes:

• Excellent chemical and mechanical durability
• Can be reused in aggressive media
• Maintains structural integrity after high-temp exposure

Selecting the Right Membrane

Considerations when choosing between PES and PVDF:

• Nature of filtered media (aqueous vs chemical/solvent)
• Sterilization and temperature requirements
• Flow rate and throughput needs
• Protein binding sensitivity
• Regulatory and compliance standards (USP, ISO)

LENGE provides customized PES membranes for pharma and biotech applications. PVDF membranes are suitable for high-temperature and chemically challenging applications.

Conclusion

PES vs PVDF membranes: PES is ideal for hydrophilic applications with low protein binding, bacterial retention, and pharmaceutical liquids. PVDF offers superior chemical and thermal resistance, suitable for solvents and high-temperature filtration.

At LENGE Clean Room, PES membranes and pleated cartridges are designed for high performance in sterile and cleanroom conditions. Choosing the right membrane ensures safety, efficiency, and regulatory compliance in pharmaceutical, biotech, and food & beverage industries.

Frequently Asked Questions

What is a PES membrane?

A PES (Polyethersulfone) membrane is hydrophilic, microporous, and ideal for sterile filtration. It provides low protein binding, high bacterial retention, and fast flow rates. PES membranes are widely used in pharmaceutical, biotech, and food & beverage applications for aqueous liquids, vaccines, and media sterilization.

What is a PVDF membrane?

PVDF (Polyvinylidene Fluoride) is a fluoropolymer membrane known for chemical and thermal resistance. It is naturally hydrophobic but can be treated to become hydrophilic for biopharmaceutical filtration.

How do PES and PVDF membranes differ in protein binding?

PES membranes have low protein binding, making them suitable for preserving biologically active compounds. PVDF membranes, when hydrophilic-treated, exhibit very low protein binding. This distinction is critical in pharmaceutical processes to maximize yield and maintain integrity of sensitive proteins and biologics.

Which membrane is better for high-temperature processes?

PVDF membranes have superior thermal resistance compared to PES, allowing use in high-temperature filtration applications. PES membranes typically operate up to 85°C, while PVDF can withstand temperatures of 150°C or higher.

Are PES membranes compatible with autoclaving?

Yes, PES membranes can be sterilized using autoclaving at 121°C. They are also compatible with EtO and gamma irradiation. These sterilization options make PES membranes suitable for pharmaceutical, biotech, and cleanroom filtration applications requiring sterility assurance.

Can PVDF membranes filter aggressive chemicals?

Yes, PVDF membranes resist acids, bases, and organic solvents, making them suitable for harsh chemical filtration. Their robust chemical compatibility and mechanical strength ensure durability in industrial and pharmaceutical processes.

Applications of PES vs PVDF in pharmaceutical industry?

PES membranes are used for sterile filtration of vaccines, LVP, media, and biologics. PVDF membranes are ideal for chemical filtration, high-temperature sterilization, and solvent-based processes.
