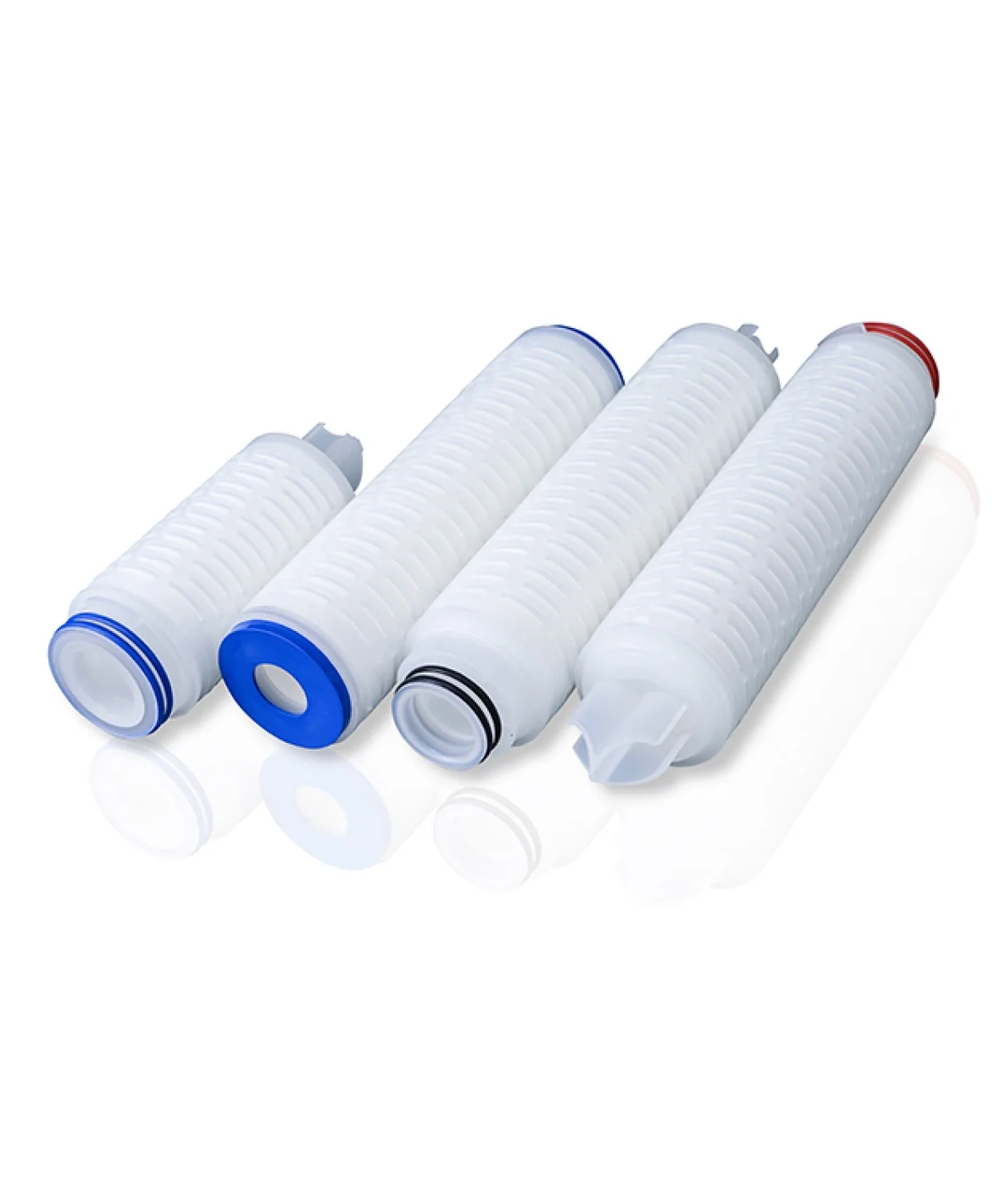

PP Filter Cartridge: Applications, Micron Ratings & Replacement

A **PP filter cartridge** is a polypropylene-based sediment filter designed to remove suspended particles from water and process liquids. It is widely used in residential water systems, industrial water treatment, food and beverage production, pharmaceutical utility water, and reverse osmosis (RO) pretreatment.

PP stands for polypropylene. A PP filter cartridge is a sediment filter used in home water systems, industrial process water, drinking water pre-treatment, food and beverage production, and pharmaceutical utility water. Its main job: remove physical particles before the water reaches RO membranes, carbon filters, or fine process filtration.

This guide covers what a PP filter cartridge is, how it works, the five main types, micron ratings, selection factors, installation steps, and when to replace it.

What Is a PP Filter Cartridge?

A PP filter cartridge is a sediment filter made from polypropylene fibre — a thermoplastic polymer material with good chemical stability and low extractables. Polypropylene can be processed into melt blown, pleated, or string wound structures, each with different performance characteristics.

It’s a physical filtration device. It removes particles by trapping them in or on the filter media. What it removes and what it doesn’t are both worth knowing before you specify one.

What a PP Cartridge Removes

• Sand, silt, and dirt
• Rust and pipe scale
• Suspended solids and larger particles

What It Does Not Remove

• Dissolved salts and minerals
• Chlorine taste and chemical odours
• Heavy metals (lead, arsenic, mercury) — unless combined with specific adsorption media
• Bacteria and viruses in most standard configurations — check micron rating and manufacturer data before using for biological retention

PP filters are usually the first stage in a water treatment system for good reason: they take the particle load out before it reaches more expensive downstream filters, which extends the service life of everything downstream.

How Does a PP Filter Cartridge Work?

Physical size exclusion. Water or process liquid flows through the filter media. Particles larger than the pore sizes get trapped in or on the media. Cleaned water passes through to the outlet.

The most common flow direction is outside-to-inside: water enters through the outer surface and exits through the hollow centre core. Some housing designs use inside-to-outside flow — check the housing specification.

Good melt blown PP cartridges use depth filtration with a graded structure. The outer layer has larger pores and captures bigger particles first. As liquid moves inward, the pore sizes get progressively smaller and finer particles are trapped deeper in the media. This is what gives PP depth filters their higher dirt-holding capacity compared with simple surface filters.

As particles accumulate in the media, pressure drop — the difference in pressure between the inlet and outlet of the housing — rises. A rising pressure drop is the most reliable signal that a PP filter cartridge needs replacement.

Main Types of PP Filter Cartridges

1. Melt Blown PP Filter Cartridge

Made by melting polypropylene and blowing it through spinnerets to form a self-bonded, randomly distributed fibre matrix. The structure creates a graded-depth filtration profile. No chemical binders or adhesives are used in well-manufactured versions.

Available in 1, 5, 10, 20, 50, and 100 micron ratings. The most common format for residential water, drinking water pre-filtration, and RO pre-treatment. Cost-effective, good dirt-holding capacity.

LENGE’s MS-series melt-blown filter cartridges are available for industrial and process water applications in standard micron ratings.

2. PP Pleated Filter Cartridge

Polypropylene media is pleated into tight, uniform folds to maximise filtration surface area inside the cartridge housing. This is the main difference from a melt blown cartridge: much higher filtration area, which supports higher flow rates, lower initial pressure drop, and longer service life in high-flow systems.

Used in process water, food and beverage production, chemical processing, and pharmaceutical utility water filtration where higher flow and extended service intervals are needed.

LENGE manufactures PP pleated filter cartridges with polypropylene membrane, pleated structure, hot-melt thermal bonding, and no adhesive components.

3. PP String Wound Filter Cartridge

Polypropylene yarn is precisely wound around a porous core to create a diamond-pattern depth matrix. The structure handles higher dirt loads and is suitable for some viscous liquids. Common in industrial cooling water, electroplating, paint, ink, and chemical process filtration where the feed is heavy or carries variable particle loads.

4. High Flow PP Filter Cartridge

Larger diameter and inside-to-outside flow path. Designed for systems with high volumetric flow demand where a small number of cartridges must handle large throughput. Common in large-scale industrial RO pre-treatment and high-volume water treatment plants.

5. Big Blue PP Filter Cartridge

Used in wide-body Big Blue housing systems. The big blue 20 inch PP 5 micron sediment filter cartridge is a common specification for whole-house sediment filtration and commercial point-of-entry systems. The larger housing diameter allows higher flow than standard-bore housings without excessive pressure drop.

PP Filter Cartridge Micron Ratings Explained

The micron rating tells you the approximate minimum particle size the cartridge is designed to retain. Smaller number means finer particles removed, more flow resistance, and shorter service life in high-turbidity water.

A 5 micron PP cartridge is the standard specification for residential drinking water systems and RO pre-filtration. A 10 micron cartridge handles general sediment control in moderate-quality water. Where water is heavily loaded with large particles, a 20 or 50 micron first stage followed by a 5 or 10 micron second stage is more cost-effective than starting fine.

Nominal vs. Absolute Micron Rating

These two terms describe how the micron rating was determined — and the difference matters for sensitive applications.

Nominal rating: the cartridge removes a defined percentage (typically 60–85%) of particles at the stated micron size. Most standard PP sediment filters are nominally rated. Suitable for general water pre-treatment.

Absolute rating: the filter is tested under standardised conditions to retain at least 99.9% of particles at the stated micron size. Required for critical industrial, pharmaceutical, or semiconductor applications where trace contamination matters.

Most PP filter cartridges used in home water and general industrial pre-filtration are nominal. For pharmaceutical process water or food production where the filtration data needs to be defensible, ask for the manufacturer’s data sheet before specifying.

Key Advantages of PP Filter Cartridges

High Dirt-Holding Capacity

Graded-density melt blown PP cartridges distribute particle capture across the full depth of the media rather than loading only the outer surface. This extends service life compared with simple surface or screen filters, particularly in water with moderate to high sediment.

Low Pressure Drop

Well-designed PP cartridges start service with low flow resistance. The pleated format in particular supports high flow with minimal pressure drop. That matters for RO systems, where pre-filter pressure drop directly reduces the feed pressure available at the RO membrane.

Chemical Resistance

Polypropylene resists many acids, alkalis, and organic solvents. It’s a reason PP cartridges are found in chemical processing and pharmaceutical utility water systems. Full compatibility still depends on fluid temperature, concentration, housing material, seals, and process conditions — confirm per application.

No Adhesives in Quality Designs

Hot-melt thermally bonded PP cartridges are manufactured without chemical binders, glues, or surfactants. This reduces the risk of extractable contamination into the filtered liquid — relevant for food, pharmaceutical, and other regulated applications.

Cost-Effective and Wide Format Availability

PP filter cartridges are among the most affordable consumables in water treatment and industrial filtration. Available in 10 inch, 20 inch, 30 inch, 40 inch, Big Blue, DOE (double open end), SOE (single open end), and custom configurations.

Common Applications of PP Filter Cartridges

Residential and Commercial Water Filtration

• Under-sink drinking water filtration as stage one
• Whole-house point-of-entry sediment removal
• RO system pre-filter to protect membranes from abrasive particles
• Ice machine, coffee, and restaurant equipment water pre-treatment

Industrial Water Treatment

• Cooling water sediment control
• Boiler feedwater pre-filtration
• Process water for manufacturing systems
• RO pre-filtration in large water treatment plants
• Wastewater polishing as a downstream stage

Food and Beverage Processing

• Syrup clarification and juice pre-filtration
• Beer and wine sediment removal
• Edible oil polishing
• Ingredient water filtration where sediment could affect product quality

Pharmaceutical and Process Filtration

In pharmaceutical and biopharmaceutical facilities, PP cartridges serve as coarse or pre-filtration stages in process liquid clarification and utility water systems. They protect more expensive downstream membrane filters from early fouling.

Where a finer pore-size membrane filter is needed for pharmaceutical process liquids, PES pleated filter cartridges are the standard specification for aqueous liquids — with lower protein binding and higher flow than PP.

Chemical and Electronics

• Acid and alkali filtration in chemical processing
• Chemical liquid clarification before sensitive equipment
• Ultrapure water pre-treatment in semiconductor facilities

PP Filter Cartridge vs. Other Filter Types

A **PP filter cartridge** is a sediment pre-filter, not a complete water purification system. Its primary role is to remove sand, rust, silt, and suspended solids before water reaches finer treatment stages, helping protect downstream equipment, extend filter life, and improve overall system performance.

Most water treatment systems combine a PP filter cartridge with other technologies based on the required water quality. For example, a typical drinking water treatment train is **PP filter cartridge → activated carbon filter → reverse osmosis (RO) membrane**, where the PP filter removes sediment, the carbon filter reduces chlorine, taste, and odour, and the RO membrane removes dissolved salts and other fine contaminants. Industrial and pharmaceutical systems may also incorporate ultrafiltration (UF), UV disinfection, or sterilizing-grade membrane filters depending on process requirements.

For process liquid filtration where PP is the pre-filter stage and a finer final membrane is required, LENGE’s pleated filter cartridge range includes PES, PVDF, PTFE, PFA, nylon, PP, and GF options for process and sterile filtration.

How to Choose the Right PP Filter Cartridge

Step 1: Choose the Correct Micron Rating

Start with the particle size in your feed water. For RO pre-filtration or fine sediment removal: 1–5 micron. General sediment control: 10 micron. Industrial coarse pre-filtration: 20–100 micron. If in doubt, a 10 micron is a reasonable default for most general water applications.

Step 2: Match the Physical Size

• 10 inch: compact home under-sink systems
• 20 inch: higher flow residential or light commercial
• Big Blue 10 or 20 inch: whole-house high-flow applications
• 30 and 40 inch: commercial and industrial filtration skids

Step 3: Check Flow Rate Requirements

A melt blown cartridge in a standard 10-inch housing has a maximum flow capacity. If your system flow exceeds this, the cartridge will load faster and pressure drop will rise quickly. For high-flow systems, specify a pleated cartridge or a high-flow format — the larger filtration area handles higher throughput at lower differential pressure.

Step 4: Confirm Housing Compatibility

• Outer diameter and inner bore diameter
• Cartridge length
• End cap style: DOE flat gasket or SOE with O-ring (222 or 226)
• Gasket and O-ring material compatibility

Check that your housing is rated for the pressure and temperature of the application. LENGE also supplies liquid filter housings for standard cartridge formats in process water and industrial liquid filtration.

Step 5: Check Operating Conditions

• Maximum operating temperature (polypropylene has limits; check the data sheet)
• Maximum working pressure
• pH range of the process fluid
• Chemical compatibility of the fluid with polypropylene, end caps, and housing seals

Step 6: Check Application Requirements

For drinking water or food and beverage use, confirm that the cartridge is manufactured from food-grade polypropylene material and carries appropriate certification for food contact. For pharmaceutical applications, ask for the extractables data and confirm integrity testing availability.

Installation Tips for PP Filter Cartridges

• Shut off the inlet water supply and release pressure before opening the housing
• Remove the old cartridge and inspect the housing bowl for sediment accumulation
• Clean the housing bowl before installing the new cartridge
• Inspect the O-ring or gasket — replace if compressed, cracked, or deformed
• Install the new cartridge in the correct direction; most PP cartridges use outside-to-inside flow
• Hand-tighten the housing bowl, then a quarter-turn with a housing wrench. Don’t over-tighten
• Open the inlet valve slowly to prevent pressure shock
• Run water through the new cartridge until the water runs clear before putting the system back into service
• Check all connections for leaks
• Record the installation date and cartridge specification for the next replacement

Always follow the specific installation instructions provided by the housing and cartridge manufacturer. Housing configurations and O-ring seating vary.

Replacement and Maintenance

Don’t wait for the cartridge to collapse or for the system to bypass before replacing it. By that point the downstream filter has already seen unfiltered water. Monitor differential pressure and flow rate as the primary indicators.

• Replace when differential pressure across the housing rises significantly above the baseline
• Replace when flow rate drops below acceptable system performance
• Replace if filtered water shows visible cloudiness or sediment returns
• Residential home water systems: typically every 3–6 months depending on water quality
• Industrial systems: service life depends on particle load, flow rate, operating hours, and water quality
• Keep spare cartridges sealed in original packaging — unsealed PP cartridges can absorb moisture and dust
• Use a coarser pre-filter upstream in high-turbidity water to extend the service life of the fine-rated cartridge

The replacement signs table:

Common Mistakes to Avoid

• Specifying the finest micron rating available without checking the flow rate impact or feed turbidity
• Using a PP filter to solve chlorine taste or odour problems — it can’t; that requires activated carbon
• Installing a cartridge with the wrong outer diameter, length, or end cap configuration for the housing
• Ignoring a rising pressure drop and continuing to run the system past the cartridge’s load limit
• Reusing disposable melt blown cartridges beyond their rated service life
• Running a cartridge beyond its rated temperature or pressure limits
• Ignoring chemical compatibility of the polypropylene material with the process fluid
• Forgetting to flush the new cartridge before putting the system back into service
• Not checking or replacing the housing O-ring during cartridge replacement

LENGE PP Filter Cartridges for Process Filtration

LENGE manufactures polypropylene pleated filter cartridges for process water and industrial liquid filtration applications. The pleated PP structure provides higher filtration area than a standard melt blown cartridge in the same housing, which supports higher flow rates and longer service life between replacements.

Construction uses hot-melt thermal bonding throughout — no adhesives, no chemical binders, no glue components that could contaminate the filtered liquid. Suitable for process water, utility water, and liquid pre-filtration in industrial and pharmaceutical facilities.

View LENGE’s PP pleated filter cartridges for specifications including micron ratings, cartridge lengths, end cap options, and housing compatibility.

To match cartridge length, micron rating, end cap style, and housing design to your filtration system: contact LENGE

Conclusion

PP filter cartridges are the most widely used sediment filter in water treatment and industrial filtration — affordable, chemically resistant, and available in a wide range of micron ratings and physical sizes. But choosing the right one requires more than just picking a micron number.

Melt blown PP for cost-effective depth filtration. Pleated PP for higher flow and longer service life. String wound PP for heavy dirt loads. The selection comes down to micron rating, flow rate, housing size, cartridge type, operating conditions, and what’s downstream. Check the specification before purchase.

FAQs

What is a PP filter cartridge?

A sediment filter made from polypropylene fibre. It removes physical particles — sand, rust, silt, scale, suspended solids — from water or process liquids by mechanical size exclusion. PP stands for polypropylene, the thermoplastic material the filter media is made from.

What does a PP filter cartridge remove?

Removes: sand, rust, dirt, silt, scale, suspended solids.

Does not remove: dissolved salts, chlorine, odours, heavy metals, or bacteria in standard configurations.

Is a PP filter cartridge safe for drinking water?

Yes, if it’s made from food-grade polypropylene and manufactured without chemical binders or adhesives. For drinking water applications, check that the product specifies food-grade or drinking-water-safe polypropylene material. Some products carry NSF/ANSI certification — confirm on the data sheet.

What is the difference between a 5 micron and 10 micron PP filter?

A 5 micron cartridge captures finer particles and provides better pre-filtration for RO systems, but it loads faster in turbid water and creates more flow resistance. A 10 micron cartridge passes more flow, lasts longer in typical water, but allows finer sediment to pass downstream. The right choice depends on feed water quality and what’s downstream.

How often should a PP filter cartridge be replaced?

Residential home water systems: every 3–6 months is the general guidance. Industrial systems: driven by differential pressure readings and flow rate data, not calendar dates. In high-turbidity water, a 5 micron cartridge may need replacement more frequently than in cleaner supplies.

Can a PP filter remove chlorine?

No. Polypropylene is chemically inert and doesn’t adsorb dissolved chemicals. Chlorine removal requires an activated carbon filter. A common residential system configuration places a PP sediment cartridge first (to protect the carbon bed from early fouling) followed by a carbon stage.

What is a melt blown PP filter cartridge?

Melt blown PP is made by extruding molten polypropylene through spinnerets using high-velocity air, forming a self-bonded matrix of random polypropylene fibres. The result is a graded-depth structure with decreasing pore size from outer to inner layers. No adhesives are used. It’s the most common and cost-effective PP cartridge format.

What is a PP pleated filter cartridge?

• Polypropylene filter media folded into uniform pleats
• Much higher filtration surface area than a melt blown cartridge of the same length
• Higher flow rates, lower initial pressure drop, longer service intervals
• Better suited to high-flow systems, process water, food production, and chemical filtration than standard melt blown

What is a PP string wound filter cartridge?

Made by winding polypropylene yarn around a porous core in a diamond pattern. Creates a depth filtration structure suited to heavy dirt loads and some viscous industrial liquids. Common in cooling water, electroplating baths, paint and ink production, and chemical process filtration.

What is a Big Blue 20 inch PP 5 micron sediment filter cartridge used for?

It’s a high-capacity sediment cartridge for Big Blue wide-body housing systems. The big blue 20 inch PP 5 micron sediment filter cartridge format provides fine sediment removal at high flow rates, without the pressure drop that a standard 10-inch housing would create at the same flow. Common in whole-house point-of-entry systems and commercial pre-filtration.

Why is pressure drop important in PP filtration?

Differential pressure — the pressure difference between housing inlet and outlet — rises as the PP media captures particles. A rising pressure drop shows the filter is loading. Once it exceeds the system’s acceptable range, flow falls and the cartridge must be replaced. Ignoring pressure drop and running the cartridge until complete blockage risks cartridge collapse, which can bypass particles downstream.

Can PP filter cartridges be used before RO systems?

Yes — it’s standard practice. RO membranes are sensitive to suspended solids, rust, and sand. A 5 micron PP cartridge upstream removes the physical particles that would otherwise abrade or foul the RO membrane, extending its service life significantly.
