Strainers vs Filters: Key Differences in Industrial Liquid Filtration

Two things. Different jobs. A strainer removes larger solid particles using a screen, mainly to protect pumps, valves, heat exchangers, and downstream filters from mechanical damage. An industrial filter uses controlled media — cartridge, bag, membrane, or depth — to remove finer particles and achieve a defined liquid-cleanliness level. Most industrial liquid systems use both: strainer first, filter downstream.

Strainers and filters are complementary technologies in a staged system, not competing alternatives. The Fluid Controls Institute shows that pipeline strainer retention can reach down into tens of microns — which means the strainer/filter boundary isn’t a fixed line at a specific micron number. Application, media type, and rated performance determine the right tool.

What Is an Industrial Strainer?

A strainer separates larger solids from flowing liquid using a screen: perforated metal, wire mesh, wedge wire, or a removable basket. Fluid passes through; particles larger than the screen opening stay behind.

Rust in a cooling water loop doesn’t announce itself until it reaches a pump impeller and scores it. Scale flakes don’t cause trouble until they wedge under a valve seat. Weld slag from construction sits quietly in a pipeline until startup — then it moves, fast, toward whatever is downstream. Strainers intercept that material before it gets there. Pumps, heat exchangers, condensers, flow meters, control valves, spray nozzles, and steam traps are all equipment that strainers routinely protect.

Common types: basket strainers for liquid pipelines with heavier debris, Y strainers where installation space is tight or the service is steam or gas, duplex basket strainers when the line can’t stop for cleaning, and temporary cone strainers during commissioning.

What Is an Industrial Liquid Filter?

An industrial liquid filter uses a controlled filtration medium to remove finer particles and achieve a specified level of liquid cleanliness. Where a strainer captures larger visible debris, a filter captures smaller suspended particles using bag, cartridge, membrane, depth, or sintered media.

Removal rating: nominal or absolute, in microns. These are not interchangeable: an absolute 10 µm cartridge and a nominal 10 µm cartridge perform very differently.

Media type: PP, PES, Nylon, PVDF, PTFE, glass fibre, needle-felt, or sintered. Material dictates chemical compatibility and available removal ratings.

Flow and area: filtration area determines flow capacity; size to actual flow rate, not pipe diameter.

Pressure drop: rises as the filter loads. Monitor with a differential-pressure gauge; replace within the rated limits.

Strainers vs Filters: Key Differences

Both devices remove solids from liquid. The primary difference is what solids they target, how they target them, and where they sit in a liquid system.

Do not apply a universal 40 µm cutoff between strainers and filters. The FCI engineering specification guide shows that pipeline strainer retention can extend down into tens of microns, demonstrating real overlap with fine filter territory. Selection should be based on rated retention, media type, application need, and manufacturer data — not a generic rule.

Final selection depends on particle size, solids load, fluid chemistry, pressure drop budget, flow rate, element reuse requirements, and the cleanliness target of the downstream equipment or process.

How Particle Size Determines Selection

Particle size is the starting point, not the only factor.

Large, visible debris — rust flakes, pipe scale, weld slag, sand, gasket fragments — points clearly toward a strainer. A fine cartridge hit with that kind of load will block in hours and cost far more to replace than a cleanable screen. Conversely, a strainer screen cannot achieve the kind of controlled, rated particle removal that a fine membrane or depth cartridge delivers.

Finer suspended solids, process-liquid quality requirements, product clarity targets, or regulatory cleanliness specifications point toward a filter. But the micron number on a filter rating needs context: a nominal 10 µm rating and an absolute 10 µm rating describe very different performance. A 10 µm woven-wire strainer screen and a 10 µm pleated membrane cartridge should not be treated as equivalent.

When the liquid carries a wide particle-size distribution — some coarse debris mixed with fine suspended solids — both technologies in series is the practical answer.

Basket Strainers and Y Strainers

Two strainer types dominate industrial liquid and process-gas applications.

Basket strainers have a larger removable basket and higher debris-holding capacity, typically installed in horizontal liquid pipelines upstream of pumps and finer filters. Duplex basket strainers can keep one chamber in service while the other is cleaned — useful when the pipeline can’t stop.

Y strainers have a compact angled screen and fit tighter spaces. Common in steam distribution, compressed air, gas lines, and anywhere a basket strainer’s footprint doesn’t fit. Lower debris capacity — suited to lighter loads. Can be installed horizontal or vertical depending on the specific design. For a full comparison, see the separate Basket Strainer vs Y Strainer guide.

Pleated Cartridge Filters and Filter Bags

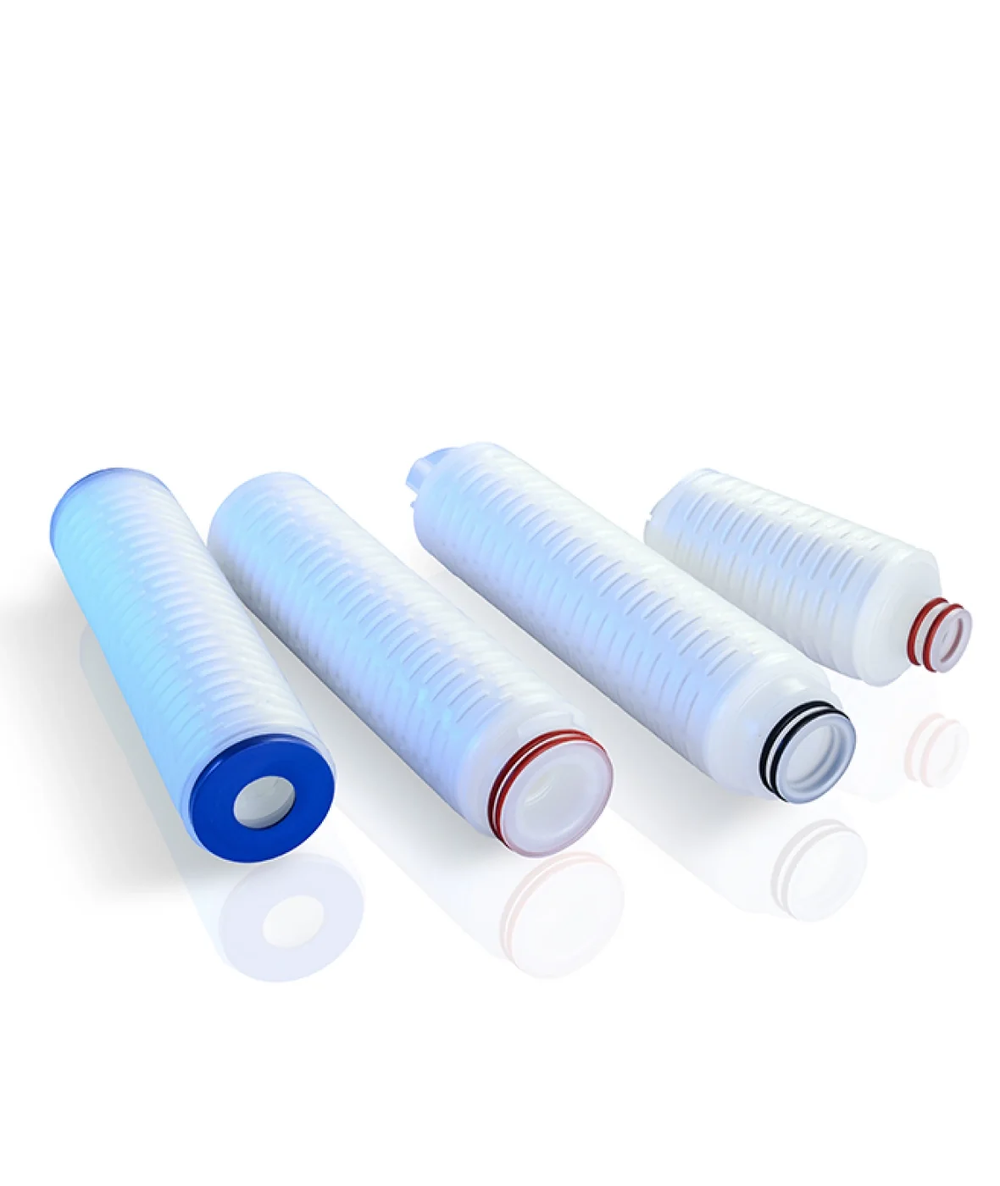

Pleated Cartridge Filters

Pleating is why cartridges work: more filtration area inside the same diameter housing means lower face velocity, lower initial pressure drop, and longer service life than an unpleated element of the same size. The media determines what the cartridge can handle.

LENGE’s cartridge range:

PP pleated filter cartridges — asymmetric gradual-aperture PP, thermal bonding, 0.1–120 µm listed removal range, ~0.65 m² per 10 inch, max 85°C at 0.2 MPa.

PES pleated filter cartridges — hydrophilic PES membrane, PP support, thermal bonding, listed ratings 0.04 to 1 µm, pharmaceutical and biopharmaceutical process-water and beverage applications.

Nylon pleated cartridges cover applications where nylon membrane compatibility suits the process.

Filter Bags

Filter bags suit liquid filtration where the solids load is higher and bag volume provides the holding capacity that a cartridge alone cannot economically deliver. LENGE’s liquid filter bags use PP, PE, and Nylon needle-felt media, with listed removal ratings from 1 to 300 µm. Applications include RO safeguard filtration, activated-carbon removal filtration, and diatomaceous-earth removal. Filter bags are not basket strainers and should not be used as a substitute for upstream coarse straining when large debris is present.

Why Use a Strainer Before a Fine Filter?

Not every system needs both. But when coarse debris is present in the feed liquid, skipping the strainer creates a predictable problem.

The staged system concept: feed tank or pipeline → strainer (removes rust, scale, weld slag, sand) → pump → fine filter (cartridge or bag) → process equipment or product.

A coarse strainer upstream does three things for the downstream filter. It removes the debris that would block a fine cartridge or bag within minutes. It protects the pump between the two stages. And it distributes pressure-drop load across two stages instead of dumping it all on the fine filter.

What a strainer upstream doesn’t do: it doesn’t replace correct filter sizing, the right media selection, or compatibility checks. And if the feed liquid is already clean of coarse solids, a strainer adds cost and pressure drop without any return.

Pleated Cartridge vs Filter Bag: Which Should You Choose?

Both are downstream fine filtration formats. The right choice depends on the solids load, removal rating needed, flow, fluid chemistry, and how the system handles element change-out.

Neither format is always better. For very fine removal ratings below 10 µm, pleated membrane cartridges are typically the practical choice. For higher-volume solids handling above 50 µm, filter bags often provide more economical holding capacity. Where the requirements overlap, both should be evaluated.

Filter Housings in a Liquid Filtration System

A filter element cannot operate without a compatible housing. The housing must match the filter type, connection, pressure rating, temperature, material compatibility, seal design, and the cleaning or change-out method.

LENGE’s in-line filter housing uses 304 or 316L stainless steel construction, with listed working pressure options of 0.36 MPa and 1.0 MPa. The 222/226 interface accepts standard cartridge connections, and both clamp and flange end connections are available. Do not mix cartridge element and housing specifications from different sources; verify compatibility before ordering.

Selecting a housing and a filter element independently without checking interface dimensions, pressure ratings, and fluid compatibility is one of the most common procurement errors in industrial liquid filtration.

Industrial Liquid Filtration Applications

Not every application requires every stage. Design based on the actual fluid, solids content, quality target, and downstream equipment.

For pharmaceutical process water, the applicable pharmacopoeial monograph and the facility’s validated system design determine the filtration stages — not a general guide. For food and beverage, regulatory and product-quality requirements drive the selection. Confirm requirements with your process engineer or QA team before specifying.

How to Select the Right Strainer or Filter

Step 1: Identify the Contaminant

Particle size and type come first. Rust, scale, sand, and weld slag — coarse, hard, abrasive — point to strainer territory. Fine suspended solids, soft gels, biological material, or colloids point toward filter media. Don’t assume: a soft deformable particle may pass through a strainer screen and require depth media to capture it. Hard abrasive particles at high velocity may damage delicate membrane surfaces.

Step 2: Define the Goal

Ask one question: is the goal equipment protection, or process-liquid quality?

• Equipment protection from coarse debris — strainer
• Process-liquid cleanliness or product quality — fine filter
• Both — stage them in series

Steps 3–6: Operating Conditions, Compatibility, Maintenance, Downstream

Flow rate, pressure, temperature, viscosity, and pressure-drop budget all affect sizing. Confirm material compatibility across every wetted component — media, housing, seals, and cleaning chemicals — not just the filter element. For maintenance, decide upfront: cleanable screen, replaceable cartridge, replaceable bag, or duplex arrangement. Then work backwards from the downstream cleanliness requirement — what the pump impeller, RO membrane, spray nozzle, or end product actually needs from the liquid.

Common Mistakes When Selecting Strainers and Filters

The most expensive mistakes aren’t usually about wrong product selection. They’re about skipped steps.

• Using a fine cartridge for heavy coarse debris that a cleanable strainer screen handles at a fraction of the cost
• Using a strainer where controlled micron-rated removal is the actual requirement
• Treating nominal and absolute micron ratings as equivalent — they aren’t
• Ignoring chemical compatibility of the housing and seals, not just the filter media
• Selecting housing and element independently without checking interface, pressure, and temperature compatibility
• Confusing LENGE’s liquid Filter Bag (liquid filtration, PP/PE/Nylon needle-felt) with the separate LENGE Bag Filter product, which is an air filtration product

LENGE Downstream Filtration Solutions

LENGE should not be presented as a confirmed manufacturer of basket strainers or Y strainers based on current product data. LENGE can support the downstream fine filtration stage in industrial liquid filtration systems, after coarse pipeline straining where that stage is used.

LENGE’s liquid filtration range — browse the full pleated filter cartridge collection — includes PP, PES, Nylon, PVDF, PTFE, PFA, and glass-fibre pleated cartridges, liquid filter bags, liquid filter housings, in-line filter housings, vent filter housings, gas filter housings, and bag filter housings.

In a staged industrial liquid system, a pipeline strainer removes large debris first. Downstream, LENGE cartridges, filter bags, and housings can support finer filtration when selected according to fluid type, particle removal target, flow rate, pressure, temperature, and chemical compatibility.

Contact LENGE at lengecleanroom.com/contact-usto match filter media, housing design, pore size, and downstream filtration stage to your process conditions.

Conclusion

Strainers protect equipment from coarse debris. Filters deliver controlled particle removal for liquid quality. Neither is a substitute for the other. No universal micron line separates them.

Systems that contain both coarse debris and fine suspended particles often use both technologies in sequence. The strainer protects equipment and reduces the bulk solids load; the downstream filter delivers the defined particle control the process requires. Where the feed is already free of coarse debris, a separate strainer may add cost and pressure drop without improving performance.

FAQs

What is the difference between a strainer and a filter?

A strainer captures larger debris with a screen. A filter uses controlled media to remove finer particles and meet a cleanliness specification. Different devices. Different jobs.

Should a strainer be installed before a filter?

When coarse debris is present in the feed: yes. When the feed is already clean of coarse solids: possibly not — a strainer adds cost and pressure drop without benefit in clean systems. The feed liquid quality determines whether both stages are needed.

What is the difference between a bag filter and a cartridge filter?

Volume and rating. Bag filters provide more solids-holding volume and suit higher debris loads (LENGE Filter Bag: 1–300 µm). Cartridge filters provide more controlled, finer removal ratings and work well for precise downstream polishing.

How does particle size affect strainer and filter selection?

Large particles (rust, scale, weld slag, sand) → strainer. Fine particles requiring a defined micron rating → filter. Both coarse and fine particles → strainer first, filter downstream. Check whether the rating is nominal or absolute; same micron number, very different actual performance.
