Water Treatment for Oil and Gas: Methods, Equipment and Use Cases

Water treatment for the oil and gas industry removes oil, suspended solids, sand, scale, dissolved salts, bacteria, and other contaminants from produced water, injection water, and operational wastewater. Treatment method depends on water source, contaminant type, and the final destination: reinjection, reuse, discharge, or disposal.

Filtration is one part of the treatment train. Not the whole system. It sits downstream of primary oil-water separation and coarse solids removal — after bulk contamination is handled, bag and cartridge filters do the downstream particulate work.

What Is Water Treatment in the Oil and Gas Industry?

Several water streams run through an oil and gas facility, and they don’t all have the same problems.

Produced water is the largest volume. It comes up from the reservoir alongside oil and gas, carrying dissolved salts, free oil, emulsified oil, suspended solids, naturally occurring radioactive material, bacteria, and treatment chemicals. The EPA classifies it as the largest waste stream from oil and gas operations. Its composition varies between reservoirs, production stages, and what has been injected into the well.

Injection water goes back into the formation for pressure maintenance or enhanced recovery. It has to be clean enough not to plug the reservoir — meaning tight control of suspended solids, bacteria, dissolved oxygen, and scale-forming ions. Seawater taken offshore for injection needs particle removal, deoxygenation, and sometimes sulfate removal to prevent scale. Frac flowback from unconventional wells shows up with high salinity, variable solids, and residual stimulation chemicals.

Treatment for each is different. That’s the point. There is no single produced-water treatment system that applies universally.

What Contaminants Are Found in Oil and Gas Water?

The composition table below covers main contaminant types and their treatment relevance.

Bag filters and pleated cartridges remove suspended particulates. They do not remove dissolved salts, dissolved hydrocarbons, or dissolved gases. Those require membrane treatment, adsorption, chemical systems, or thermal processes. Specifying a cartridge filter for dissolved contaminants is a selection error.

Why Water Treatment Matters in Oil and Gas Operations

Injection wells plug. That’s the operational reality when suspended solids exceed what the reservoir pore throats can pass. Plugged wells lose injectivity, require workovers, and drive up production costs. The required filtration specification is field-specific — it depends on reservoir permeability, formation sensitivity, and injection-well completion. There is no universal “clean enough” threshold.

Downstream equipment also has a stake in water quality. Heat exchangers foul when corrosion products accumulate on tube surfaces. Membrane systems fail fast when oil and fine particles reach them without adequate pretreatment. Pump internals wear when fine abrasives are left in the fluid. These are not theoretical risks; they’re maintenance and replacement costs that accumulate over time.

Reuse adds another dimension. Treating produced water for reuse in well stimulation, dust suppression, or cooling reduces freshwater consumption — which matters operationally in water-stressed basins where sourcing freshwater is expensive or restricted.

Main Treatment Methods in Oil and Gas Water Treatment

Bulk oil and free hydrocarbons come first. Without removing free oil upstream, downstream bag and cartridge filters load with oily material and fail quickly. Gravity separators, corrugated plate interceptors, hydrocyclones, and skim tanks handle this stage. Induced gas flotation (IGF) and dissolved air flotation (DAF) follow, removing the finer dispersed oil droplets that gravity alone can’t capture.

Chemical treatment runs alongside or between the physical stages. Demulsifiers break stable emulsions. Coagulants and flocculants help fine particles aggregate into masses that settle or float. Scale inhibitors, corrosion inhibitors, biocides, and pH control chemicals protect downstream equipment and the injection system. What gets dosed depends on water chemistry and the specific treatment objective.

After the main oil is removed, walnut-shell and dual-media filters handle the residual suspended solids and dispersed oil droplets. Walnut-shell filters are widely used in produced-water treatment because the media captures both solids and some oil, and it can be backwashed for continued operation. Sand and anthracite dual-media filters serve the same role in some designs. This stage is critical for protecting bag and cartridge filters downstream. Skip it, and fine filter service life collapses.

Bag filtration follows where particulate loading is still higher than a pleated cartridge can handle economically. Then cartridge filtration provides the final polishing to meet reinjection specification, RO membrane pre-treatment requirements, or process-water quality targets.

For higher-specification applications, membrane treatment extends beyond what physical filtration can achieve. Microfiltration and ultrafiltration remove fine suspended solids, bacteria, and emulsified oil. Nanofiltration targets selected dissolved ions. Reverse osmosis handles dissolved salts for reuse or discharge compliance. Membranes require strong pretreatment to survive oily feeds. Ceramic membranes tolerate more aggressive cleaning than most polymeric alternatives and are increasingly used in oily-water applications.

Filtration Methods for Oil and Gas Water Treatment

Fine bag and cartridge filtration normally follows bulk oil removal and upstream solids control. The exact position depends on feed-water chemistry, contaminant loading, and the required outlet quality; applying a polishing filter before its upstream duty is complete leads to rapid fouling.

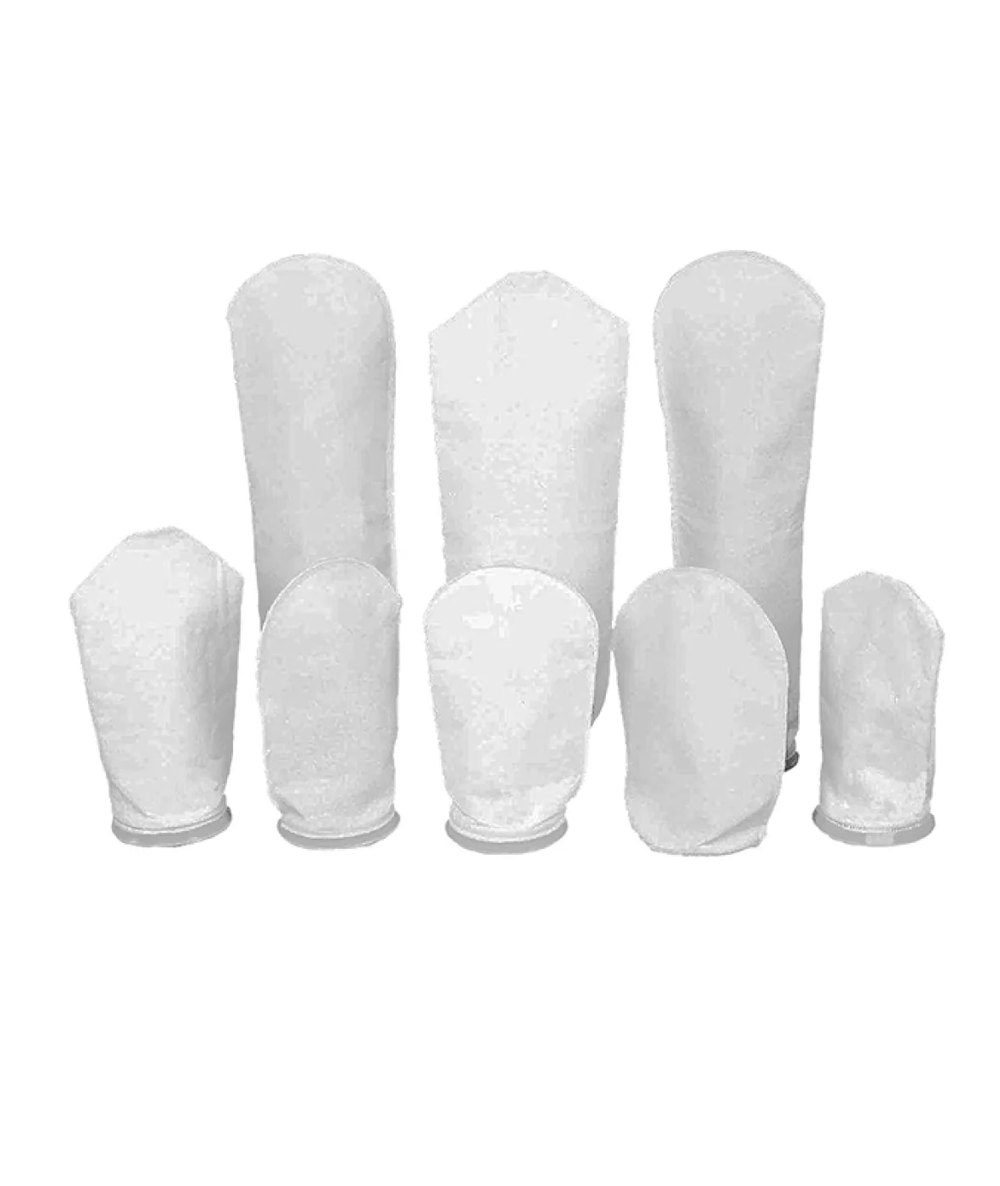

Bag filtration handles the stage where particulate loading is still too high for a fine cartridge. High dirt-holding capacity, lower replacement frequency, and larger bag volume make bags the right tool here. LENGE’s liquid filter bags use PP, PE, and Nylon needle-felt media. Removal ratings: 1, 5, 10, 30, 50, 100, 150, 200, and 300 µm. Size 1# gives 0.25 m² filtration area, Size 2# gives 0.50 m². Max operating temperature: PP 110°C, PE and Nylon 190°C. Max forward differential pressure 2.0 bar at 23°C, 1.0 bar at 80°C. Product page lists activated carbon removal filtration, RO safeguard filtration, and diatomaceous earth removal as typical uses.

After bags have reduced the solids load, pleated cartridges handle the polishing stage. Pleating gives more filtration area inside the same housing diameter, which means lower face velocity, lower initial pressure drop, and longer service life than an unpleated element of the same size.

PP pleated filter cartridges use an asymmetric gradual-aperture polypropylene filter, PP structural components, and thermal bonding without adhesives. Listed removal range: 0.1–120 µm. 10-inch filtration area approximately 0.65 m². Max positive differential pressure 0.4 MPa, max negative 0.2 MPa at 25°C. Max operating temperature 85°C at 0.2 MPa. The gradient pore structure supports pre-filtration at high flow rates with low initial pressure drop.

PES pleated filter cartridges suit tighter polishing duties where PES membrane compatibility fits the fluid. Hydrophilic PES membrane, PP support and drainage, thermal bonding. Listed removal ratings: 0.04, 0.1, 0.22, 0.45, 0.65, 0.8, and 1 µm. The 10-inch element has 0.65 m² filtration area. Typical flow rates at 20°C water: 0.1 µm at 4 lpm per 0.01 MPa, 0.22 µm at 10 lpm, 0.45 µm at 15 lpm. Confirm fluid compatibility before specifying for any oilfield water application.

Where fluid chemistry, impurity load, or viscosity makes nylon the appropriate membrane material, Nylon pleated filter cartridges offer an alternative. Natural hydrophilic nylon membrane, PP structural components, hot-melt sealing without adhesives. LENGE’s product page notes high tensile strength and suitability for higher impurity content and higher-viscosity liquids — but suitability for an oilfield stream must be established through compatibility testing against the actual fluid. Pore options: 0.1, 0.22, 0.45, 0.65 µm. 10-inch flow rates at 20°C: 0.1 µm at 5 lpm per 0.02 MPa, 0.22 µm at 8.3 lpm, 0.45 µm at 10 lpm, 0.65 µm at 33 lpm. Max operating temp 85°C at 0.2 MPa.

Oil and Gas Water Treatment Equipment Overview

The table covers main equipment types across a produced-water treatment train. LENGE relevance is noted only where product data supports the claim.

Where Filtration Fits in a Produced Water Treatment System

Fine cartridge filters are usually a late particulate-polishing or membrane-protection stage. They may be followed by ultrafiltration, nanofiltration, reverse osmosis, disinfection, deoxygenation, sulfate removal, or chemical conditioning when the final water-quality target requires it.

A produced-water train should be built around measured contaminants and the receiving system. Free oil may require gravity separation or hydrocyclones; dispersed droplets may require flotation; residual oil and suspended solids may require media, walnut-shell, ceramic-membrane, or other polishing stages. Bag and cartridge filters are used only where the remaining solids load and required outlet quality make them economical.

Do not treat any one intermediate stage as mandatory. Confirm oil concentration, droplet-size distribution, suspended solids, particle-size distribution, temperature, chemistry, and target destination, then use pilot or operating data to verify the sequence.

Oil fouling of fine cartridges is a predictable and avoidable failure mode when upstream separation is inadequate. The corrective action is not simply a different cartridge: confirm residual oil and solids loading, repair the upstream treatment gap, and size each downstream stage for its actual duty.

Common Oil and Gas Water Treatment Applications

Not every application needs every stage. A cooling-water system with low debris may only need coarse filtration. A reinjection system serving a tight reservoir formation may need multi-stage separation, polishing cartridges, and dissolved oxygen control. Design is driven by actual water analysis, not by general application category.

How to Select Filtration Equipment for Oil and Gas Water

Start with real water data, not generic produced-water assumptions. A mature oilfield producing high-water-cut fluid and a new unconventional well in frac flowback have compositions that can differ by orders of magnitude in salinity, solids loading, and oil content. Lab analysis comes first. Filter selection comes after.

Contaminant target is the next question. Suspended solids by particle-size distribution and concentration? Residual oil droplets? Sand from the formation? The answer determines whether a bag filter, a pleated cartridge, or a different technology entirely is needed at that point in the train. A 5 µm cartridge doesn’t treat free oil. It loads with it and fails.

Solids loading determines format. High particulate loading means bags first. After bags have reduced the load, cartridges handle the polishing. Sizing by pipe diameter alone without accounting for actual flow rate and solids concentration is a common error that produces undersized systems with high operating cost.

Operating conditions close the specification: flow rate, pressure, temperature, fluid viscosity, chemical composition, and how often the system can be taken offline for element change-out. Media material, housing, seals, and connections all need to be compatible with the specific fluid. PP is not universally compatible. PES is not universally compatible. Confirm with fluid chemistry data and manufacturer guidance before ordering.

Common Mistakes in Oil and Gas Water Filtration

The most expensive mistake is putting fine cartridges on untreated produced water before upstream separation handles the oil and bulk solids. The cartridges load fast and become a recurring replacement cost rather than a filtration solution.

Three others that matter:

• Claiming a cartridge removes dissolved salts or hydrocarbons — those require membrane, adsorption, or chemical systems
• Ignoring the nominal vs absolute rating difference — they describe genuinely different filtration performance
• Sizing by pipe diameter alone, not by actual flow rate and solids load

And discharge limits: what applies at one offshore platform or onshore facility in one jurisdiction is not universal. Check the actual permit, not a published example from a different context.

LENGE Downstream Filtration for Oil and Gas Water Systems

LENGE is not a complete produced-water treatment system supplier. The product range covers downstream filtration: bag filtration and pleated cartridge filtration, after upstream separation and coarse solids removal have done their job.

Browse LENGE’s pleated filter cartridge collection covering PP, PES, Nylon, PVDF, and other media options for process-liquid filtration, alongside filter bags and filter housings. Contact LENGE at lengecleanroom.com/contact-us to match filter media selection, removal rating, housing design, and system positioning to downstream liquid filtration requirements.

Conclusion

Oil and gas water treatment is staged. Produced water needs separation, solids removal, filtration, and sometimes advanced treatment before it reaches its final destination. Filtration — bag filtration for higher particulate loads, cartridge filtration for downstream polishing — works after the upstream stages have done their job, not instead of them.

Select bag and cartridge filters by actual water analysis data. Contaminant type, particle-size distribution, solids loading, required outlet quality, fluid chemistry, pressure, temperature, and change-out frequency. Those parameters drive the specification. Generic application categories don’t.

FAQs

What is water treatment in the oil and gas industry?

Multi-stage contaminant removal from produced water, injection water, and operational wastewater. Method and equipment depend on water source, contaminant profile, and final destination.

How is produced water treated?

Treatment is conditional, not a universal fixed train. Free oil may be removed by gravity separation or hydrocyclones; dispersed oil may require flotation; residual oil and solids may require media, walnut-shell, ceramic-membrane, bag, or cartridge stages. Dissolved contaminants need membranes, adsorption, ion exchange, chemical treatment, or thermal processes selected for the outlet target.

What contaminants are found in produced water?

Free and emulsified oil, suspended solids, sand, scale, corrosion products, dissolved salts, naturally occurring radioactive material, bacteria, and residual treatment chemicals. Composition varies by reservoir, production stage, injection chemistry, and well age.

What type of filter is used for produced water?

Depends on the stage. Walnut-shell and media filters handle oil and coarse suspended solids after primary separation. Bag filters handle higher particulate loading before fine stages. Pleated cartridge filters provide polishing. Membrane filters (MF/UF) are used for finer suspended solids and bacteria when needed.

How do you select a filter for produced water?

• Get actual water analysis data before specifying anything
• Identify the specific contaminant target by type and particle-size distribution
• Choose bag or cartridge based on particulate loading at that stage
• Confirm media material, housing, and seal compatibility with fluid chemistry and temperature

Does filtration remove dissolved salts from produced water?

No. Bag filters and cartridge filters remove suspended particles. Dissolved salts need nanofiltration, reverse osmosis, electrodialysis, or thermal desalination. Specifying a cartridge to remove dissolved salts is a fundamental technology mismatch.
