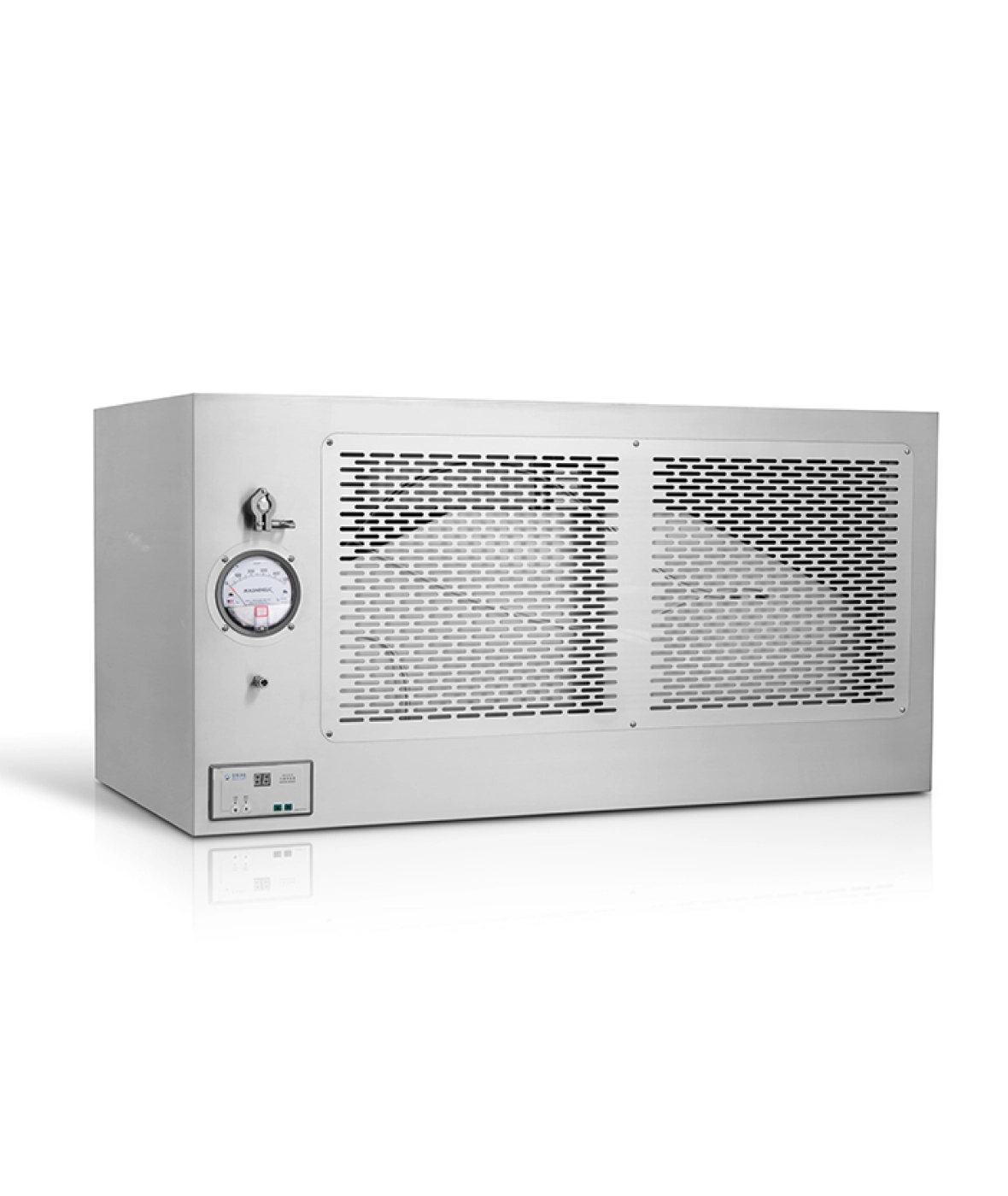

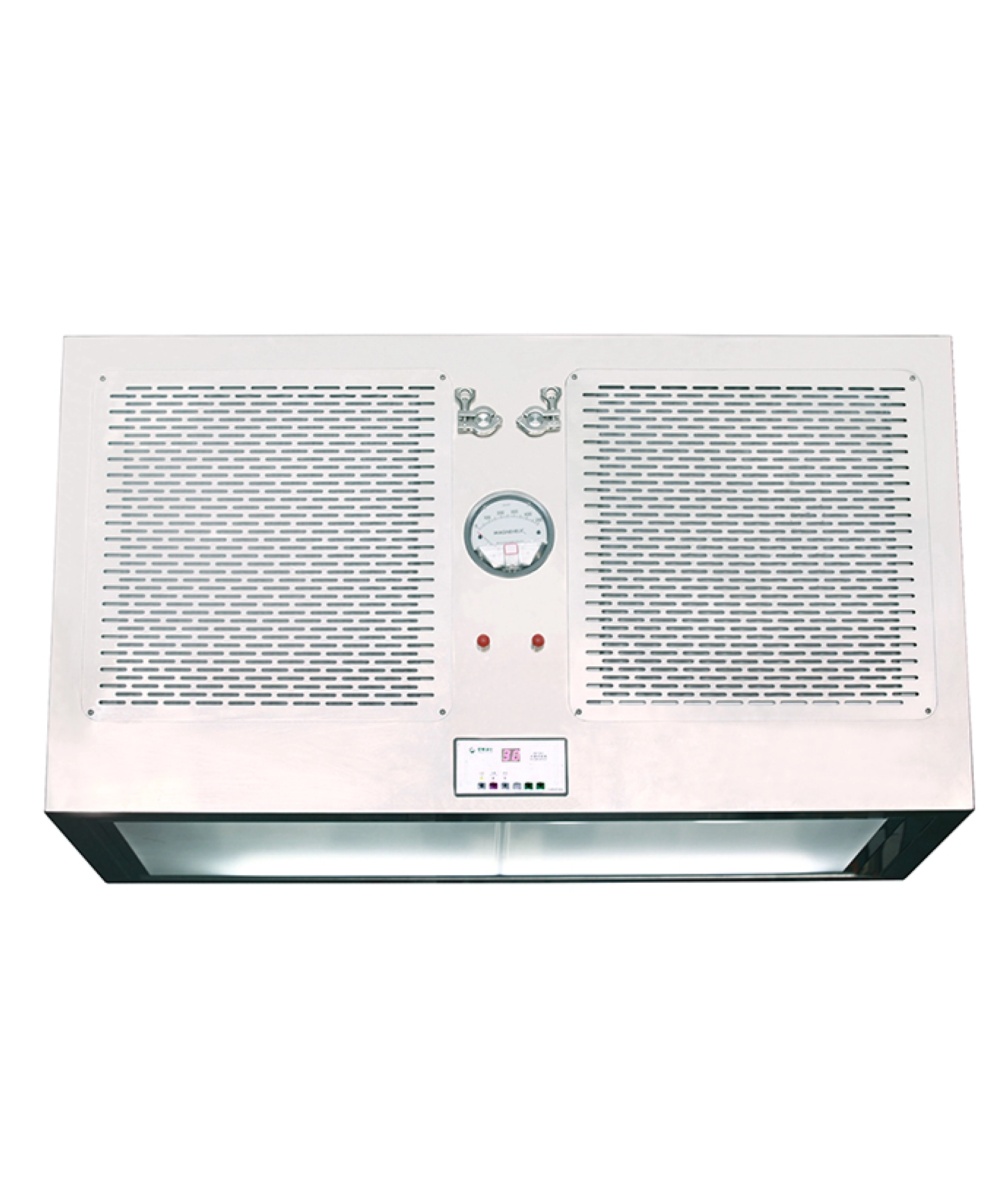

LENGE Laminar Air Flow Units with adjustable fan speed complete with gel seal HEPA are a series of high efficiency products designed to protect equipment and other contents of the work zone from particulates to meet cLAFs A cleanliness requirements.
Control panel, touch screen, remote control+conrol panel
Built-in LED light
Side air, ceiling air return
Ceiling type, stand type
220V, 50Hz
Model No.
Outer Size
Inner Size
Gross Weight
/
W×D×H (mm)
W'×D'×H' (mm)
(KG)
LUFH12-120060
1200×600×650
1200×600
100
LUFH16-100100
1000×1000×650
1000×1000
150
LUFH32-200100
2000×1000×650
2000×1000
300
LUFH35-180120
1800×1200×650
1800×1200
300
LUFH47-240120
2400×1200×650
2400×1200
350
LUFH49-200150
2000×1500×650
2000×1500
3501
LUFH65-200200
2000×2000×650
2000×2000
450
01
Product Outline Design:

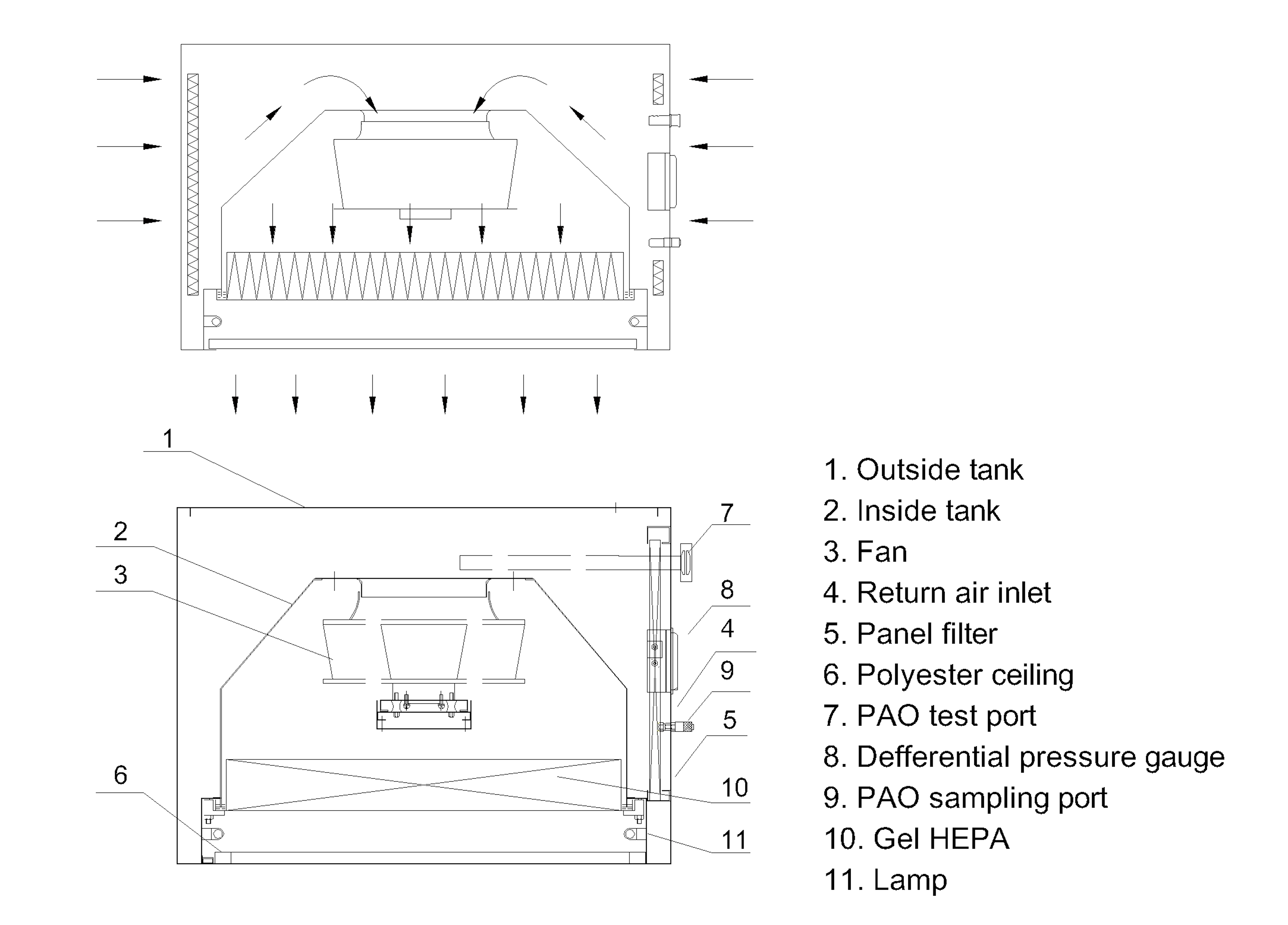

Airflow Diagram

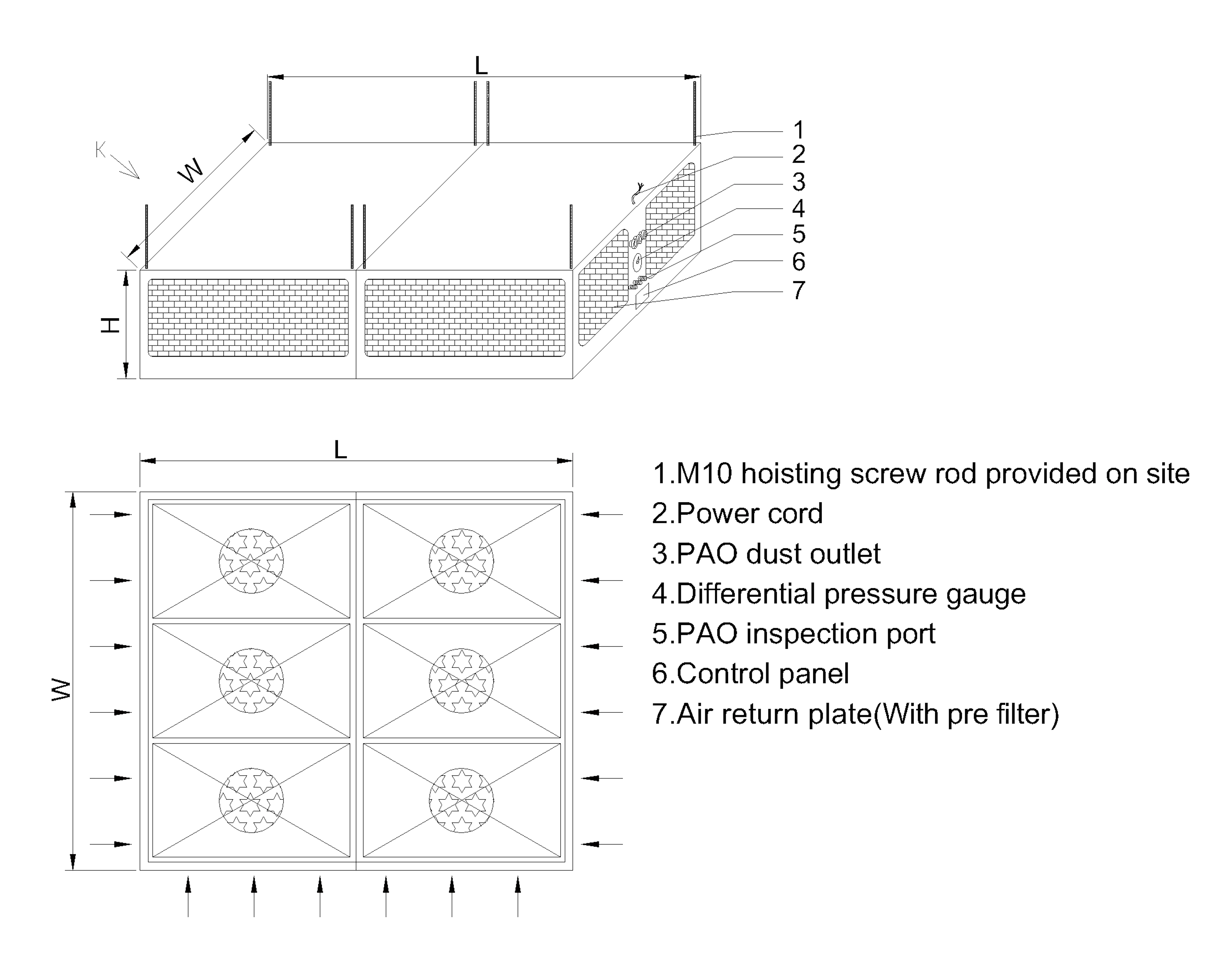

Structure Diagram
Characteristics & Features:
HEPA Clean Air Protection
A01
Provides HEPA filtered airflow through the work area that protects the product from airborne contamination and provides a sferile environment , minimizing cross contamination.
Movable uniform membrane, wind speed will be uniformly distributed.
Laminar Airflow System
Safeguarding Pharmaceutical Processes and Products
Pharmaceutical manufacturing hinges on sterility. Laminar Airflow Systems (LAF) are game-changers, providing controlled airflow to eliminate airborne contaminants and ensure drug safety and efficacy.
Protecting Sterile Products
For aseptic processing, LAF are vital. Their unidirectional airflow acts as a shield, repelling airborne contaminants and safeguarding the sterility of pharmaceuticals and medical devices.
Compounding Pharmacies
LAF are a pharmacist's secret weapon in compounding. The clean airflow prevents mix-ups and contamination, guaranteeing safe, personalized medications.
Research and Development
LAF are research partners in pharma, ensuring pristine conditions for experiments. Their controlled airflow safeguards results by eliminating microscopic contaminants, especially crucial in biotechnology and nanotechnology.
Pharmaceutical Manufacturing
From raw materials to final packaging, LAF are guardians in pharma manufacturing. Their controlled airflow ensures purity and consistency by preventing contamination between batches.
Containment System:
A01
An economical laminar flow cabinet with a clean, simple, low-maintenance design is a workbench with a cLAFs 100 environment can be used in assembly, testing and inspection procedures that require a continuous flow of ultra-clean air.
A02
Provide a sterile positive pressure environment for the compounding of non-hazardous drugs.
A03
Integrated fan filter module with low noise & energy efficient fan.
Laminar Airflow Systems

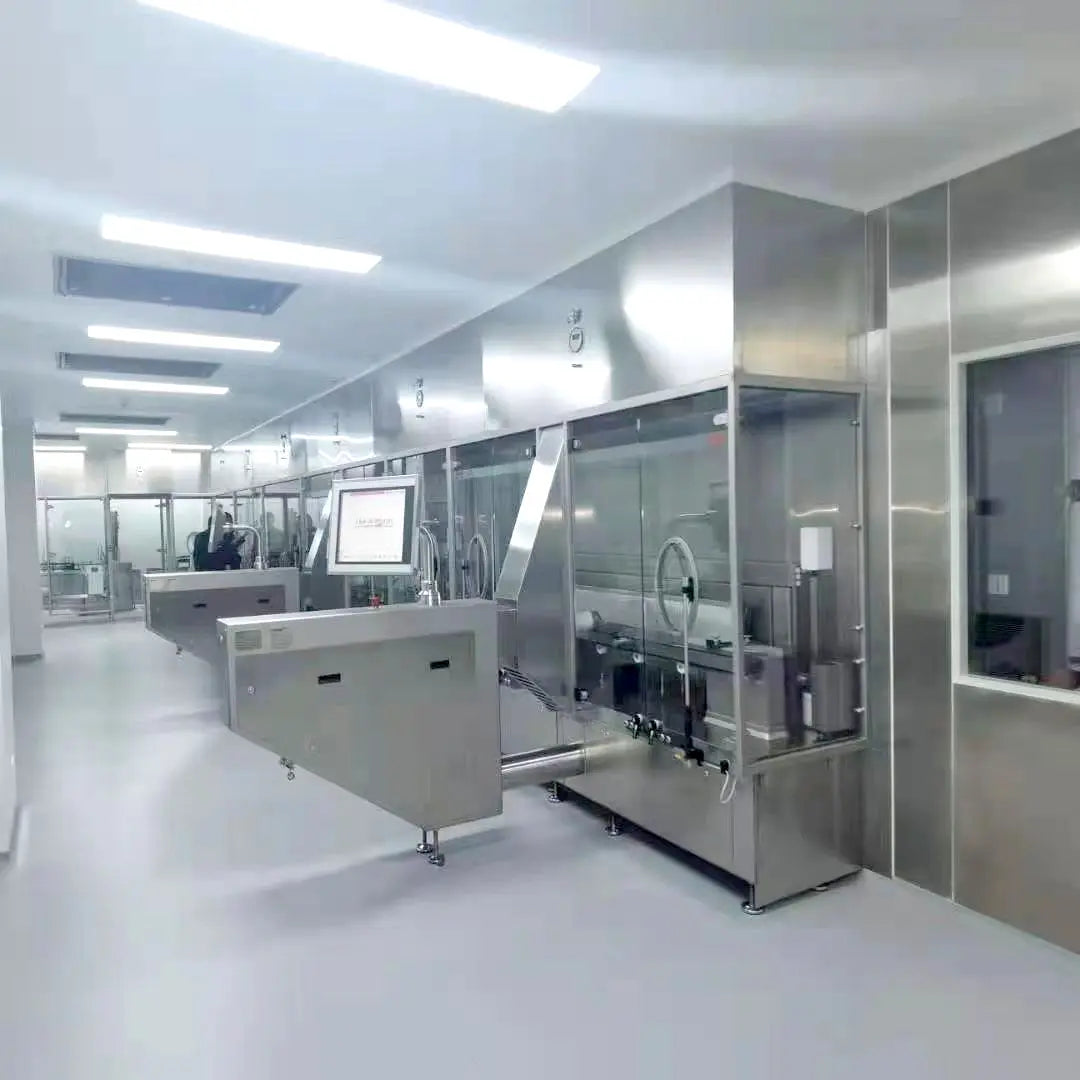

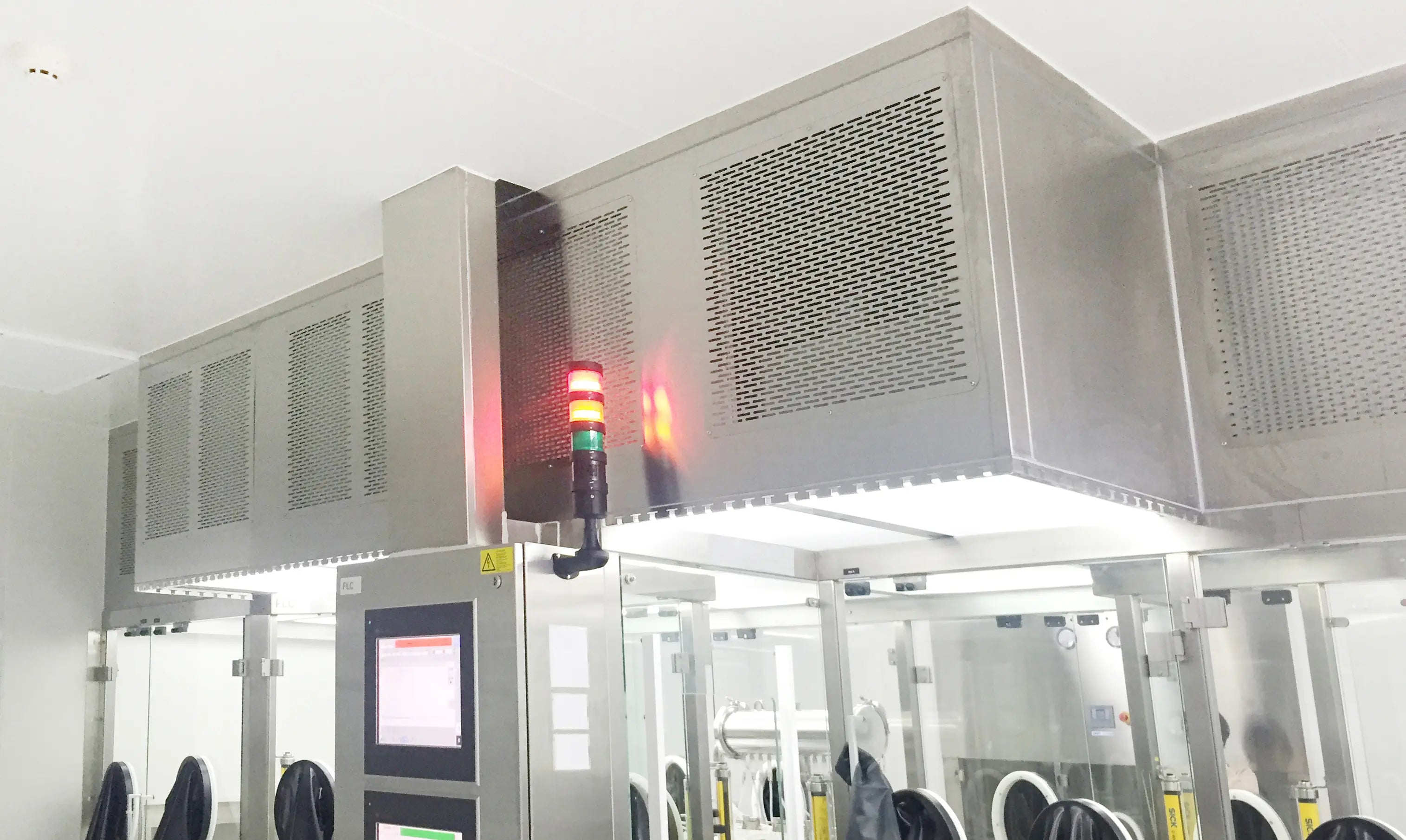

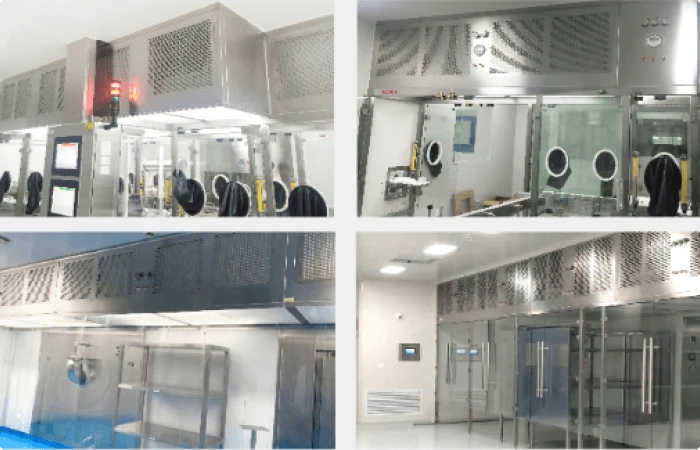

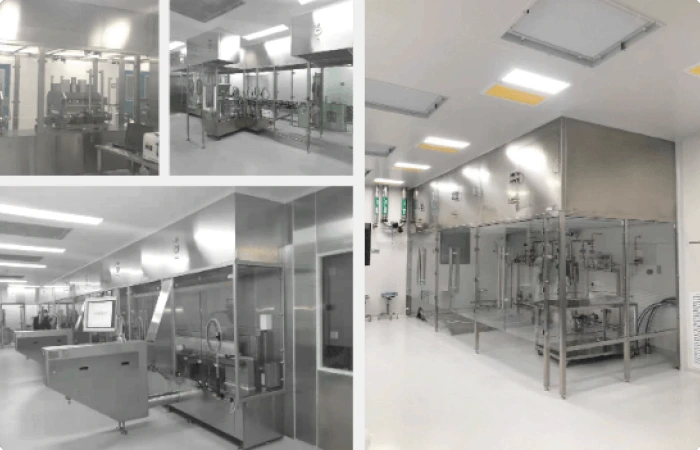

Real-World Success Stories in Pharmaceutical Manufacturing
001/002

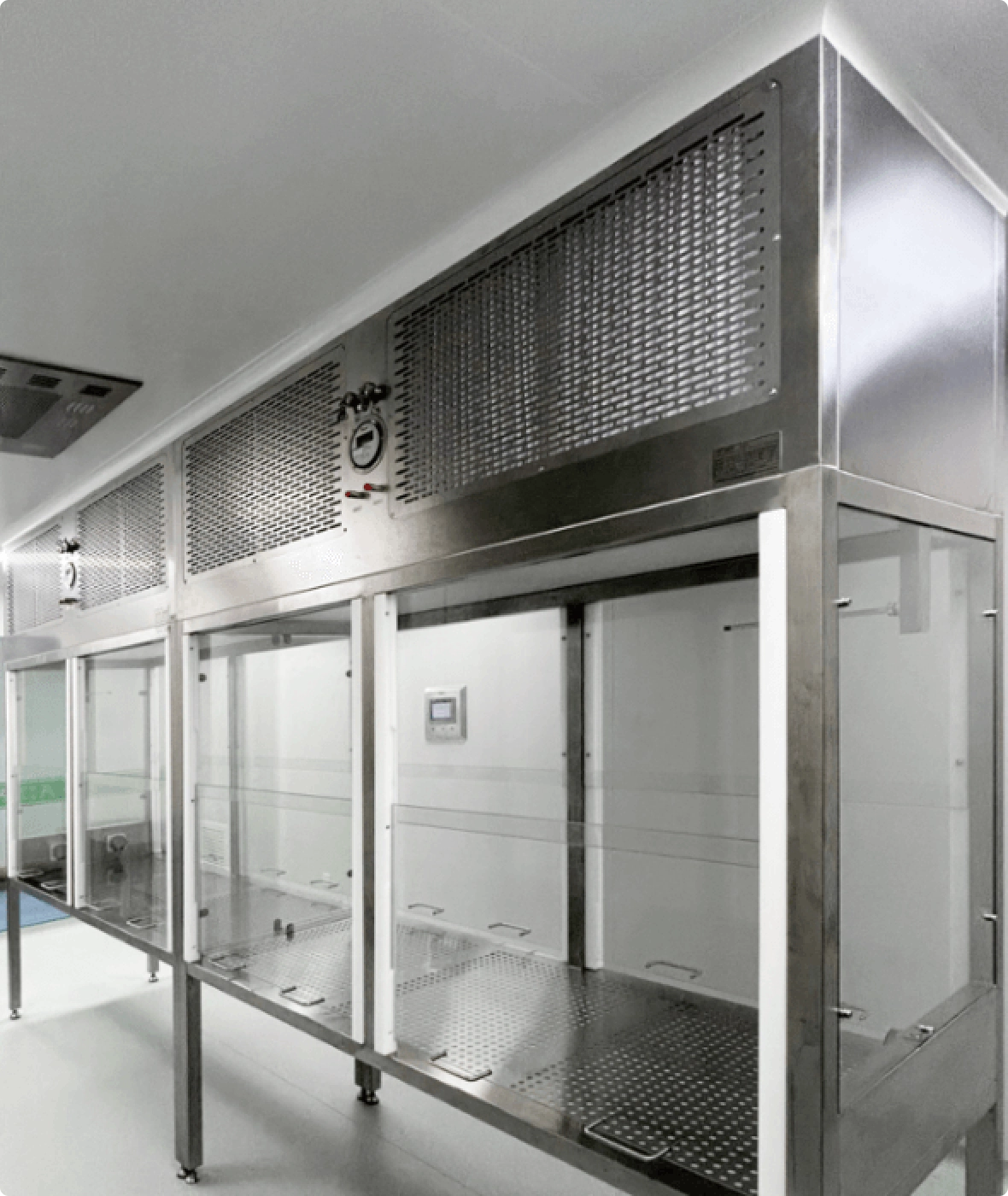

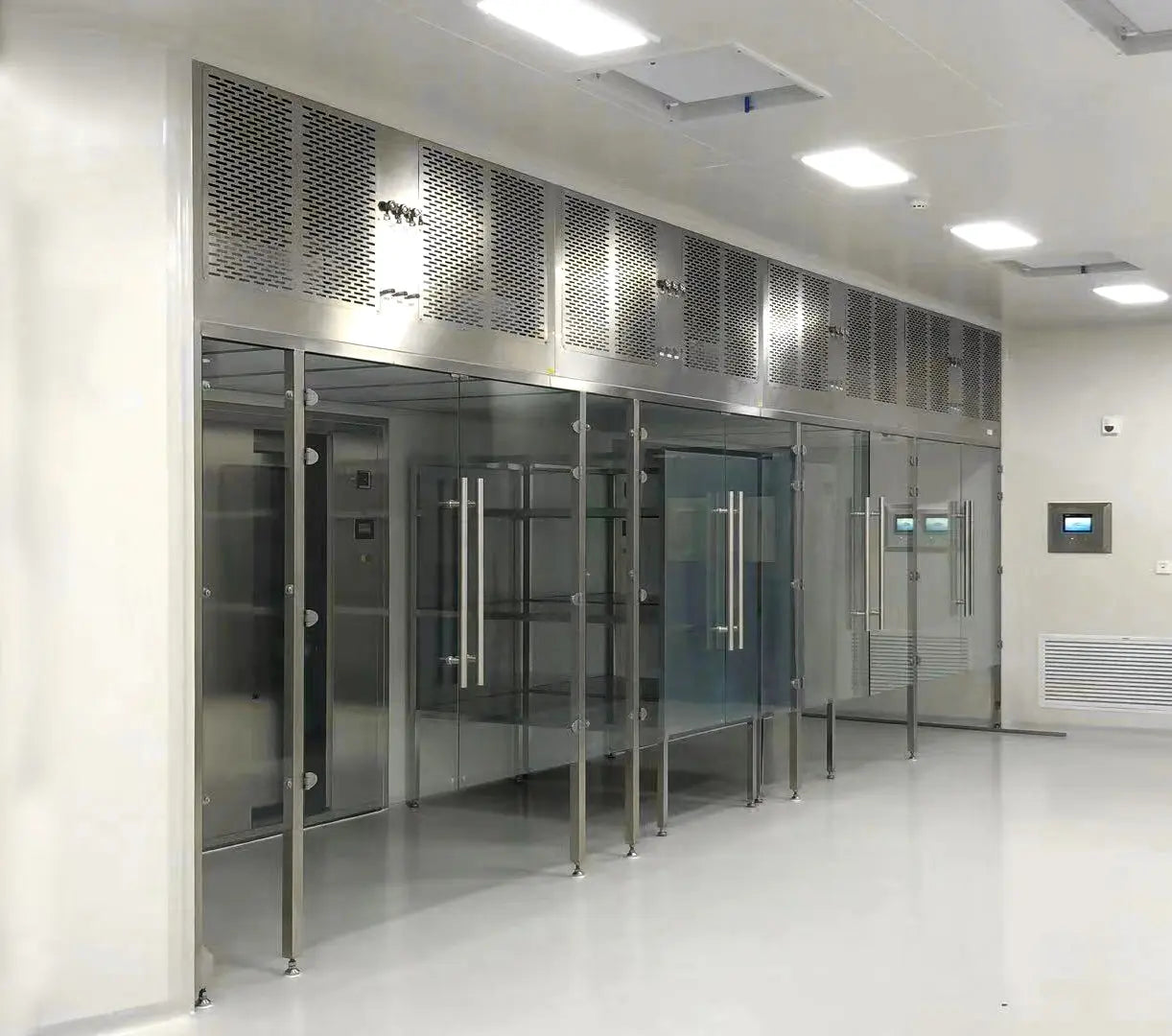

Top Return Air Laminar Airflow System Case Diagram
002/002

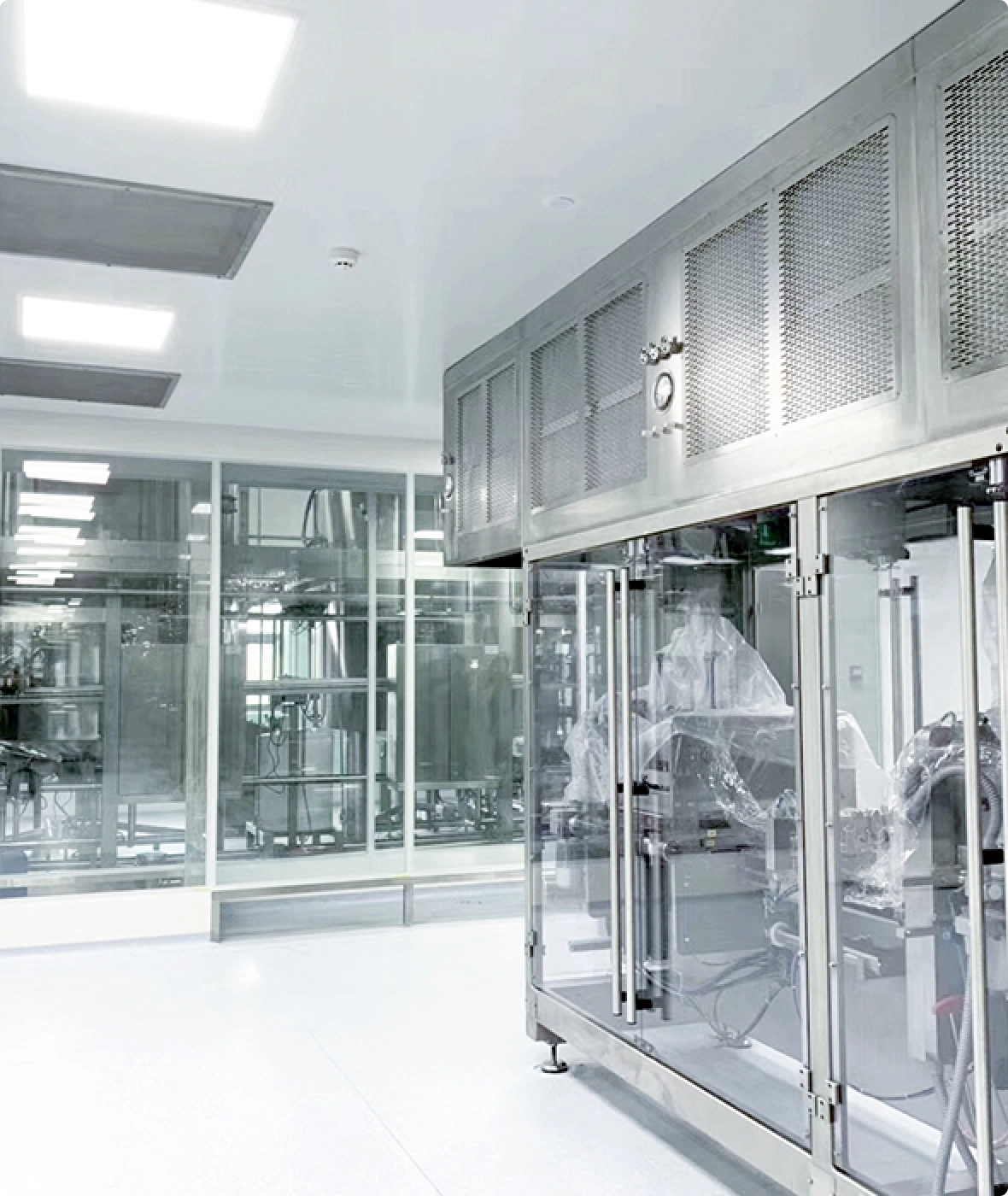

Side Return Air Laminar Airflow System Case Diagram
