Laminar Airflow Work Bench

¥0.00 Sold out
Material:
SUS 304/316 stainless steel
Cleanliness CLASS:
Class A
Noise:
65~75 dB
Filter Module:
Panel filter,Gel HEPA filter
Power Supply:
220V, 50Hz
Certification:
ISO 9001:2015, ISO 14001:2015, ISO 45001:2018

LENGE laminar flow clean bench is the premium selection for the discerning researcher, offering a combination of value, high quality construction, low operating noise levels, and a wide product range to suit all budgets, from the industry leader.

Get a Free Quote

Model Outer Size Inner Size Cleanliness Class Rated Wind Speed HEPA Size Types
/ W×D×H W×D×H / （m/s） L×W×D /
LVCW09-081070 970×770×1800 810×700×550 Class A 0.45±20% 720×610×93×1 Single Side Vertical Air Supply
LVCW15-130070 1460×770×1800 1300×700×550 590×610×93×2 Double Sides Vertical Air Supply
LVCW06-082048 900×700×1450 820×480×600 650×540×93×1 Single Side Horizontal Air Supply
LVCW13-168048 1760×700×1450 1680×480×600 740×540×93×2 Double Sides Horizontal Air Supply
Note: The above dimensions are our standard, any changes will be based on the actual customer's requirements.
01

Product Schematic Diagram：

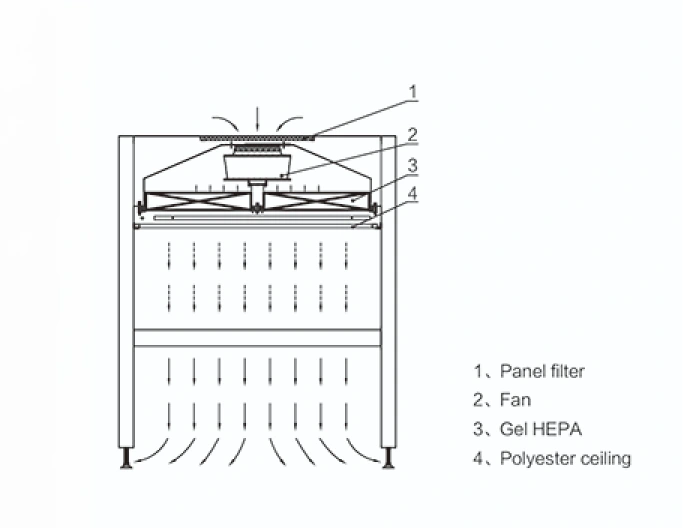

Airflow Direction

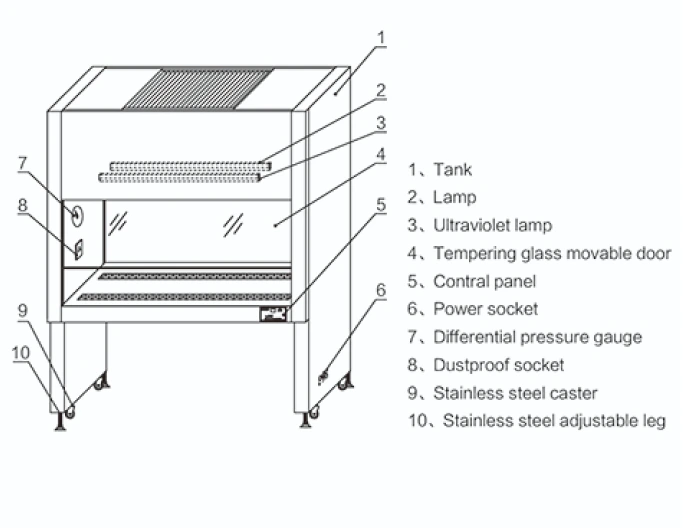

Drawing of Structure

Advantages:

A01

Quiet Airflow Design Offers Noticeably Reduced Noise Level.

A02

SUS304 Interior For Enhanced Resistance To Corrosion.

A03

Solid Plenums For Long Life And Lasting Containment Negative-Pressure, Dual Side Walls Protect From Leaks To The Exterior Environment.

Characteristics & Features:

A01

When Programmed On, An Airflow Alarm Warns Of Deviations From Normal Velocities.

A02

Automated Reduced Flow Mode For Enhanced Energy Efficiency.

A03

Negative Pressure Side Wall Plenums.

A04

Reduced Noise Level Is Designed To Enhance User Focus.

A05

Prefilter Extends The HEPA Filter Life And Is Easily Changed By Hand Without The Need Of Tools.

A06

UV Disinfection (Optional) --A UV Disinfection Light Can Be Fitted Into The Top Of The Work Space To Disinfect The Worktop.

A07

Provides a Laminar Flow Of Hepa-Filtered Air To Meet The Most Critical Contamination Requirements.

A08

Incorporates Industry-Leading Quiet, Low-Vibration Fan/ Filter Modules.

A09

Laminar Airflow Work Bench

Laminar Airflow Work Bench

Safeguarding Pharmaceutical Processes and Products

Pharmaceutical manufacturing hinges on sterility. Laminar Airflow Systems (LAF) are game-changers, providing controlled airflow to eliminate airborne contaminants and ensure drug safety and efficacy.

Protecting Sterile Products

For aseptic processing, LAF are vital. Their unidirectional airflow acts as a shield, repelling airborne contaminants and safeguarding the sterility of pharmaceuticals and medical devices.

Compounding Pharmacies

LAF are a pharmacist's secret weapon in compounding. The clean airflow prevents mix-ups and contamination, guaranteeing safe, personalized medications.

Research and Development

LAF are research partners in pharma, ensuring pristine conditions for experiments. Their controlled airflow safeguards results by eliminating microscopic contaminants, especially crucial in biotechnology and nanotechnology.

Pharmaceutical Manufacturing

From raw materials to final packaging, LAF are guardians in pharma manufacturing. Their controlled airflow ensures purity and consistency by preventing contamination between batches.
