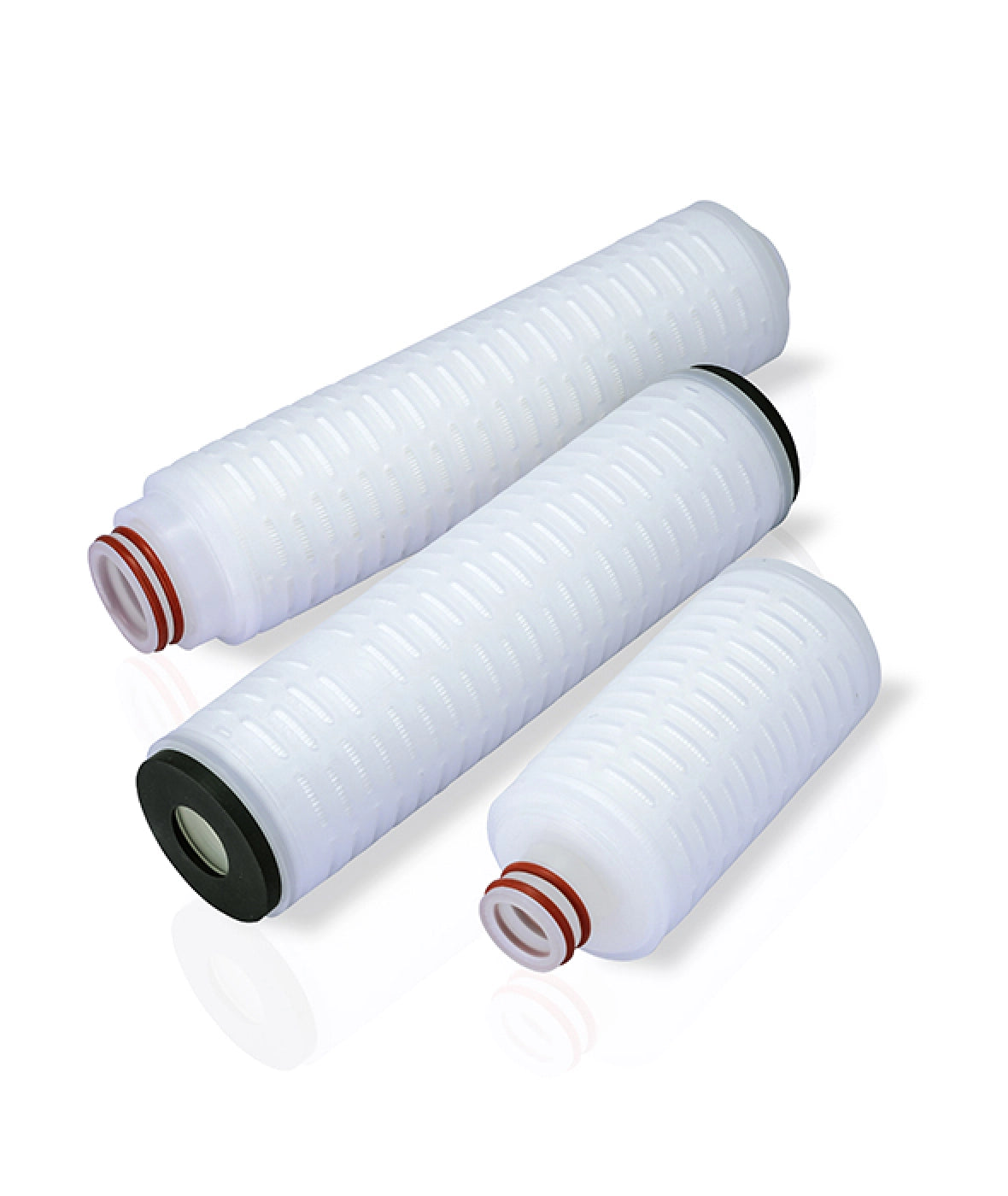

Nylon Pleated Filter Cartridge

¥0.00 Sold out

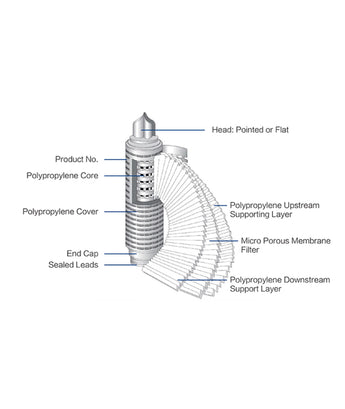

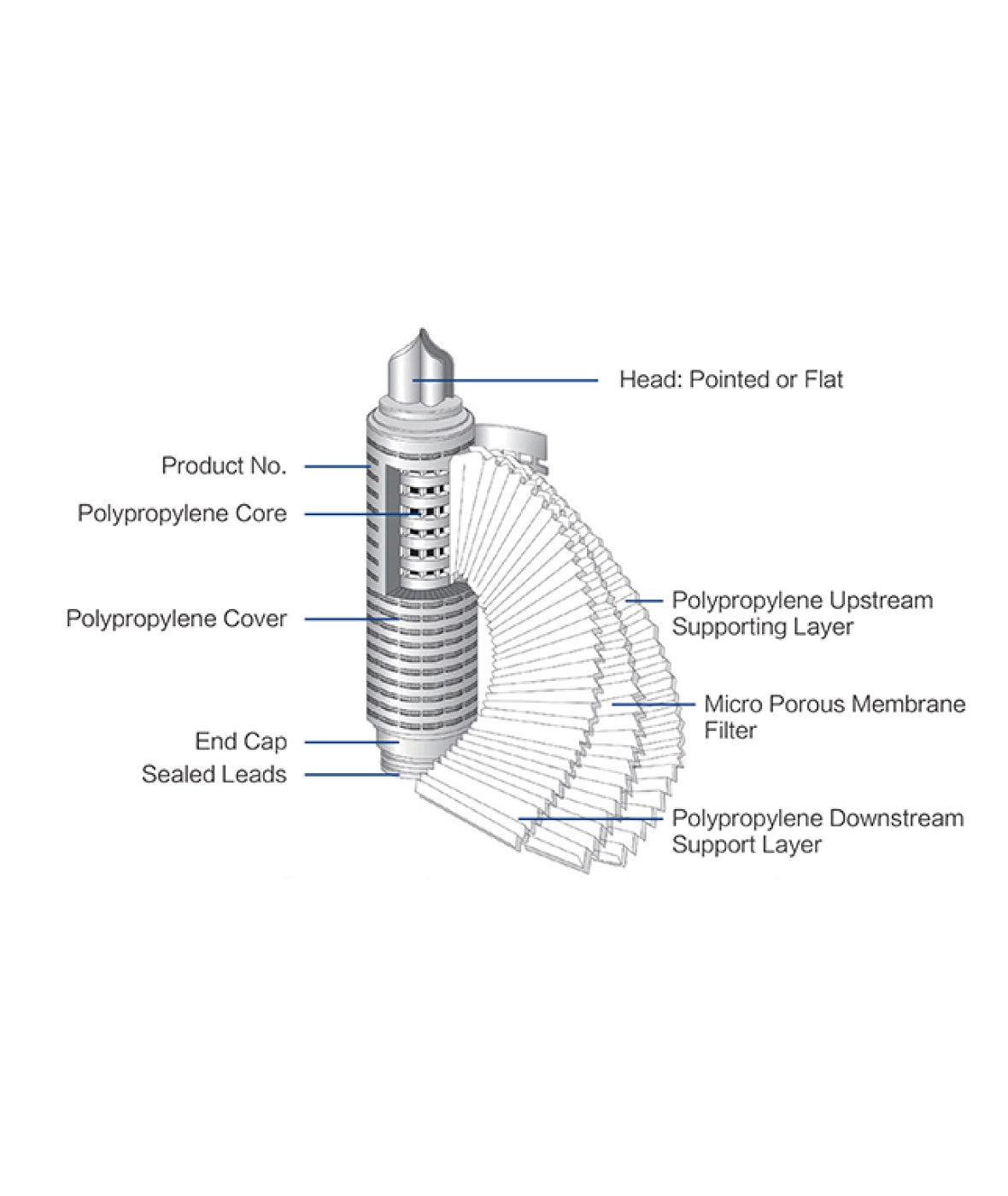

FILTER MATERIAL:
Nylon Membrane
SUPPORTS/DIVERSION:
PP
CORE/COVER/END COVER/END CAPS:
PP
SEALED LEADS/FINS:
PP,Built in stainless steel
O-RING:
222,226 silicon rubber etc.
SEALING TECHNOLOGY:
Hot melt without adhesives

Nylon Pleated Filter Cartridge is made by natural hydrophilic nylon membrane and PP components through advanced hot melt sealing technology under Class-100 environment . The filter element meets the technical requirements of GB/T34244-2017 of the People's Republic of China and without any adhesives or surfactants.

Request A Quote

Technical Specifications & Parameters:

Size Filtration area Dissolution（20℃） Minimum Bubble Point of Integrity Test Data Conditions of steam sterilization and hot water sterilization Maximum pressure difference and temperature Typical flow rate (Water 20℃)
Diameter: 2.75"(69 mm)
Length: 5"/10"/20"/30"/40" etc. 		Single 10" filter element is about 0.65m² Testing The filters without pre-washing . After 24 hours immersion in water, the dissolution was less than 30 mg/10" filters. 0.22μm: > 0.25MPa in Water
0.45μm : > 0.18MPa in Water
Other options:0.1μm，0.65μm 		Sterilization temperature: hot water 85℃

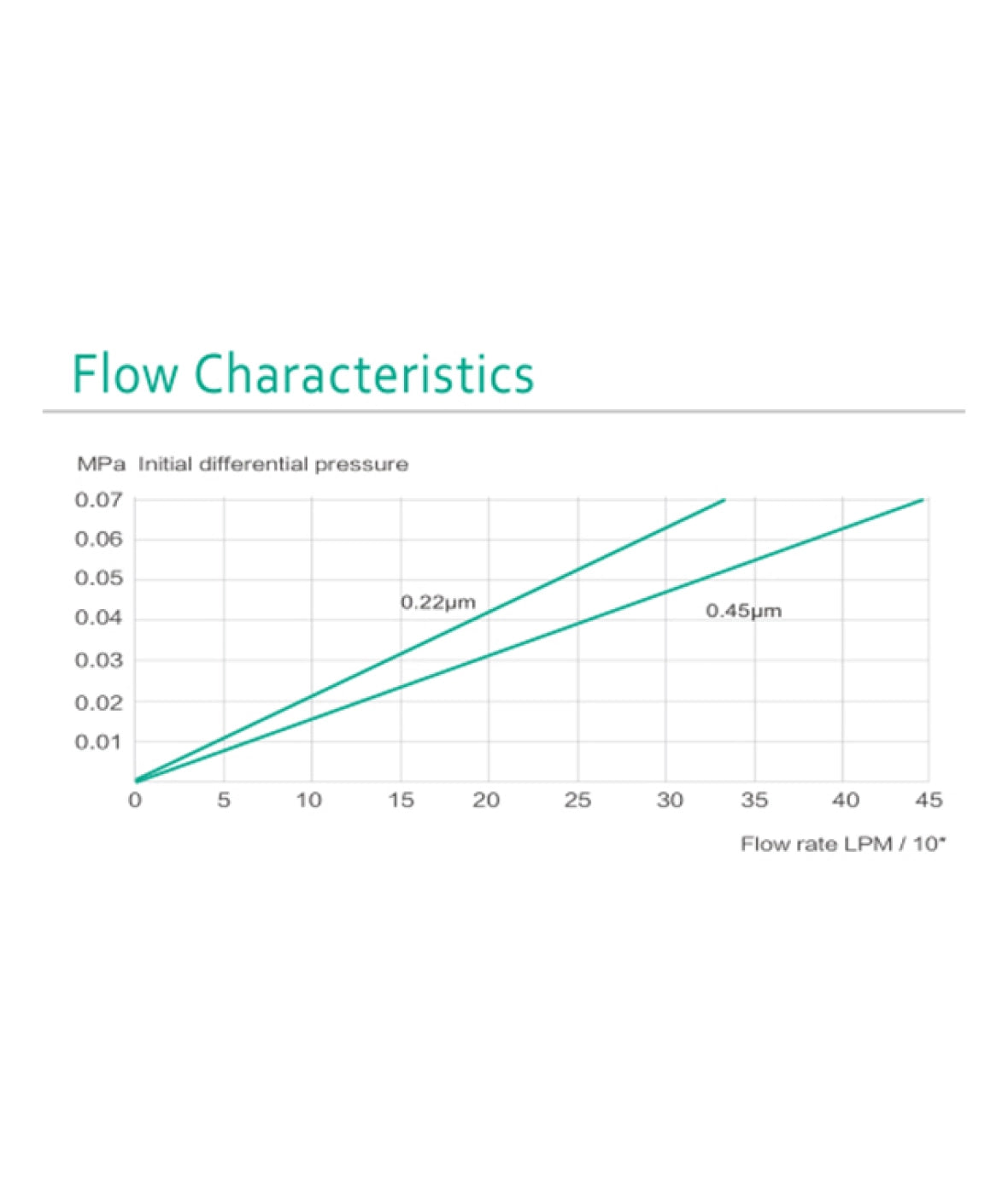

Steam in place 121 ℃/30 min,more than 15 times 		Maximum operating temperature: 85 ℃/0.2 MPa, 25 ℃ (≥ 0.4 MPa) 0.1um:5lpm/0.02MPa/10"
0.22um:8.3lpm/0.02MPa/10"
0.45um:10lpm/0.02MPa/10"
0.65um:33lpm/0.02MPa/10"

Adapter Style

Ordering Information:

1 2 3 4 5 6 7
NL 0.22 --- 10 A S P --X

1 2 3 4 5 6 7
Membrane Pore size Length Connector/End Cover
A/AA/B/BB/C/CC/D/E/EE/F		 Gasket Material
S/E/F/FF		 Application Special Specification Remarks
Hydrophilic NL membrane 1 / 0.1 / 0.22 / 0.45μm 5” / 10” / 20” / 30” / 40” Spear+222 S:Silicon rubber
E:EPDM rubber
F:Fluorine rubber
FF:Encapsulated fluoroelastomer 		Pharmaceutical grade for bio-pharmaceutical&food and beverage industry Standard Specification Default
Spear+222adapter with encapsulated reinforcing stainless steel ring
Flat+222
Flat+222adapter with encapsulated reinforcing stainless steel ring
Spear+226
Spear+226adapter with encapsulated reinforcing stainless steel ring
Flat+Flat
Flat+226
Flat+226adapter with encapsulated reinforcing stainless steel ring
Flat+215
Spear+3 Flange Bayonet adapter

Characteristics & Features:

A01

Excellent High Temperature Resistance And Extensive Chemical Compatibility.

A02

The Sampling Of Filter Element Successfully Passed The Bacterial Challenge Test Required By Regulations, LRV≥7.Integrity Can Be Maintained After Repeated High-Pressure Disinfection.


A03

Each Filter Element Should Pass The Integrity Test Before Leaving The Factory. The Limitations Of Integrity Testing Were Correlated With The Results Of Bacterial Challenge Experiments.

A04

It Is Manufactured Under ISO 9001 And ISO 14001 Systems.

A05

Production And Usage Are Traceable.

A06

All The Compositions Reach Up To The Requirement Of The Biological Testing Characteristics Of Usp Class 6 Plastic Products At 121℃ And The Food Contact Materials Listed In The Relevant Regulations Of Chapter 21 Of The Federal Regulations Of The United States (CFR). They Also Conform To The Requirements Of China's "Standard For Hygienic Safety Evalution Of Equipment And Protective Materials In Drinking Water" (2001) For Drinking Water Transport And Distribution Equipment.​

A07

Natural Hydrophilicity, Easy To Wet And Fast To Test Integrity.

A08

High Tensile Strength, Suitable For Applications With High Impurity Content And High Viscosity.

High-Performance Filter Cartridge with Advanced Filtration Technology

This filter cartridge boasts a sophisticated design that incorporates premium materials and innovative sealing technology to deliver exceptional filtration performance and long-lasting durability.

Hydrophilic PES Membrane for Enhanced Filtration

At the heart of this filter cartridge lies a cutting-edge hydrophilic PES (polyethersulfone) membrane. This advanced membrane boasts superior hydrophilicity, enabling it to effectively capture and retain even the most microscopic airborne contaminants, including dust, pollen, bacteria, and viruses.

Polypropylene Support and Drainage Structure

Providing robust support and drainage capabilities is a robust polypropylene (PP) support and drainage structure. This structure ensures optimal airflow distribution and efficient drainage of captured contaminants, preventing premature clogging and maintaining peak filtration performance.

Polypropylene Core, Cover, End Caps, and End Caps

Enhancing the overall strength and durability of the air filter element is a construction featuring a polypropylene (PP) core, cover, end caps, and end caps. These PP components provide exceptional resistance to wear and tear, ensuring the filter element can withstand the rigors of even the most demanding environments.

Sealed Leads and Fins with Stainless Steel Reinforcement

For enhanced structural integrity and electrical conductivity, the sealed leads and fins are constructed from polypropylene (PP) reinforced with stainless steel. This combination of materials provides superior strength, corrosion resistance, and heat dissipation, ensuring reliable performance even in harsh conditions.

Typical Application:

A01

Sterilization Filtration Of Lvp, Fine Needle, Freeze-Dried And Spray Dried Drug.

A02

Sterilization Filtration And Mycoplasma Removal Filtration Of Animal Serum, Liquid Medium, Buffer Solution, Supplement Water, Etc..


A03

Sterilization Filtration Of Various Solvents In Pharmaceutical Industry.

A04

Sterilization Filtration Of Various Process Water And Pharmaceutical Water.

A05

Terminal Filtration Of Bottled Water, Draft Beer, Wine, Yellow Wine, Soft Drinks, Syrups, Etc. In The Food And Beverage Industry.
