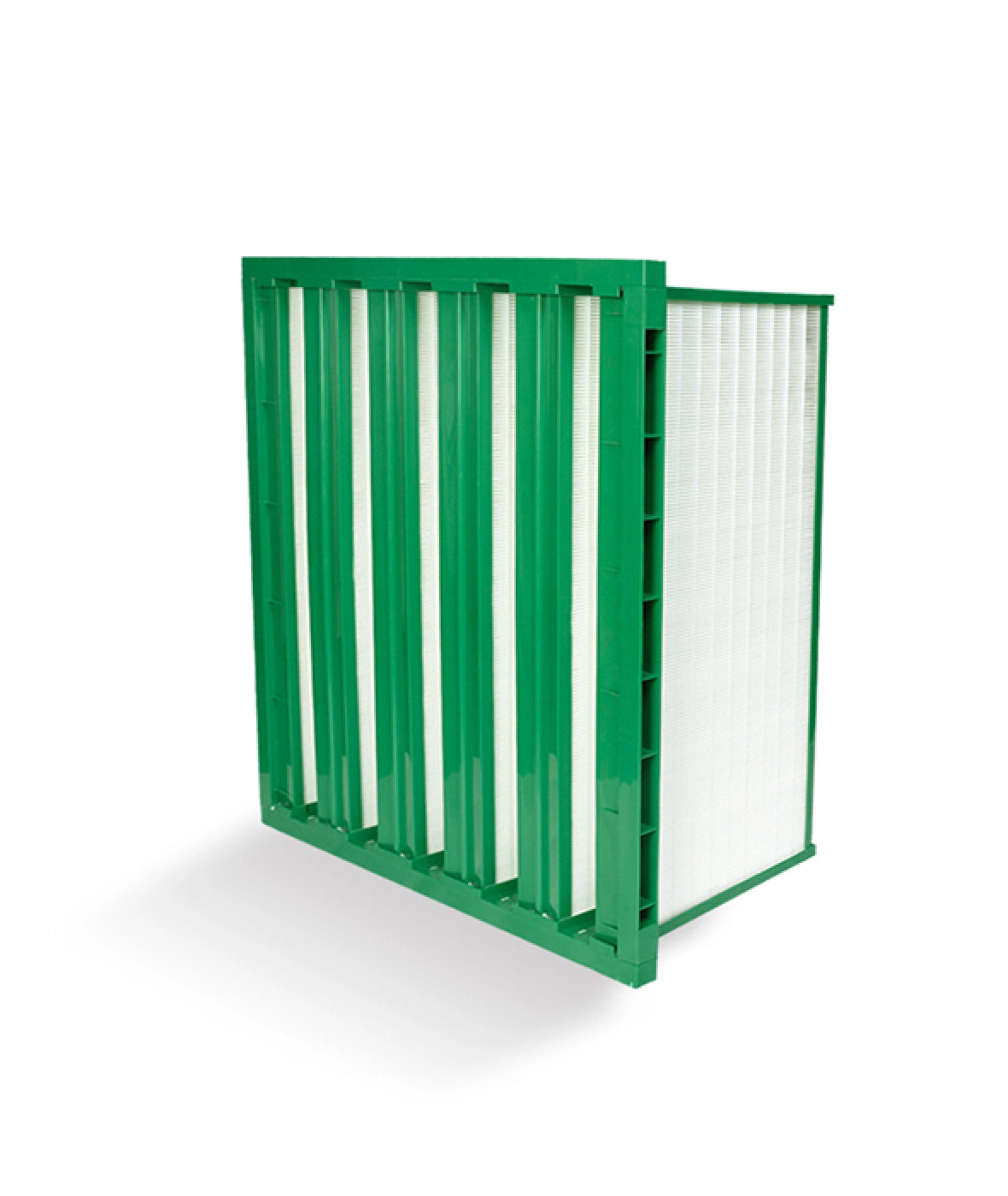

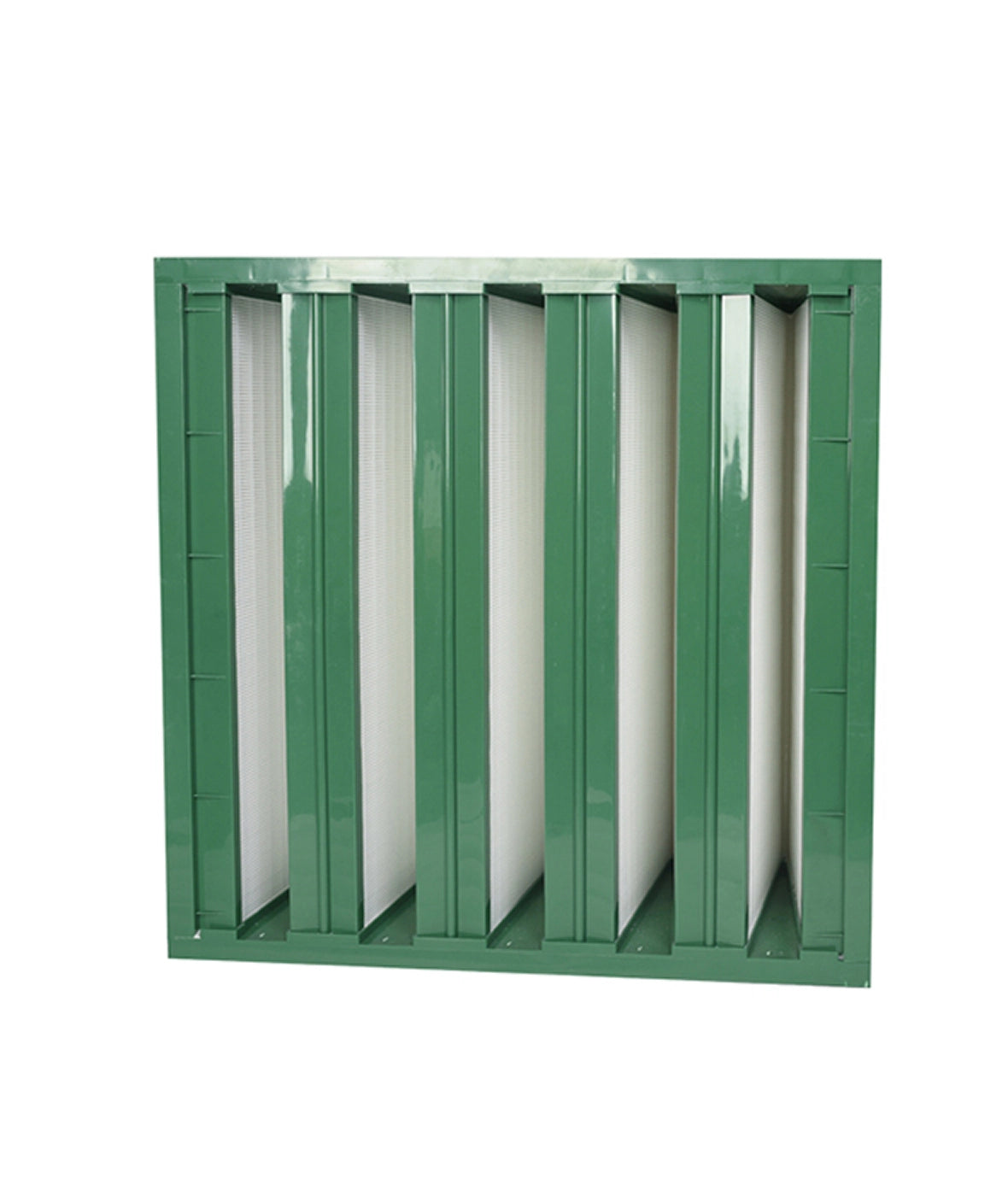

V-Bank Filter

¥0.00 Sold out
Frame:
ABS/Galvanized Iron
/Aluminum/Stainless steel
Spacers:
EV
Filter Media:
Glass Fiber
Gasket:
PU seal strip

Operation Conditions:
Max 80%, 80 ℃
Filter Class:
M5/M6/F7/F8/F9/E10
/E11/E12/H13/H14
EN779/EN1822

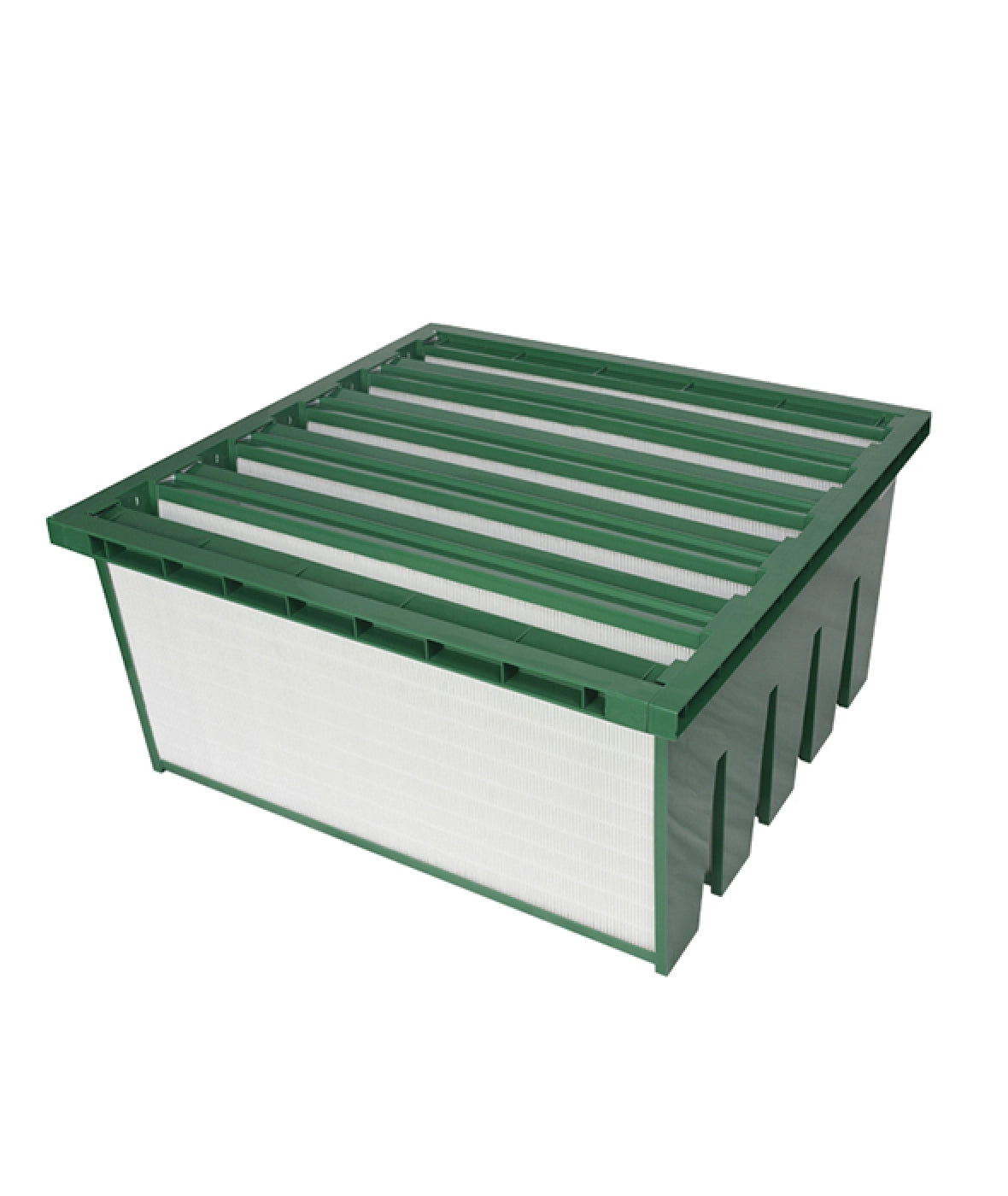

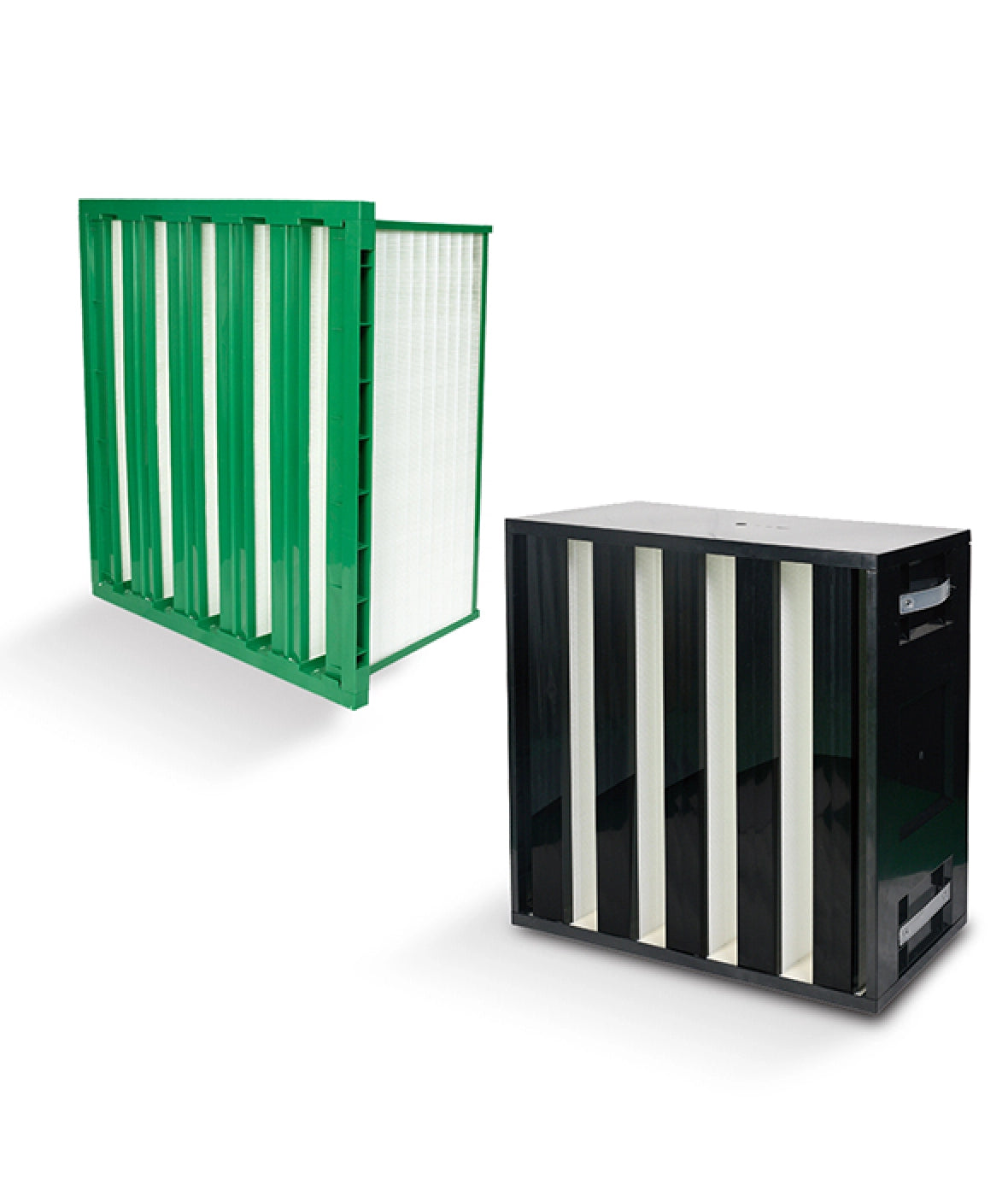

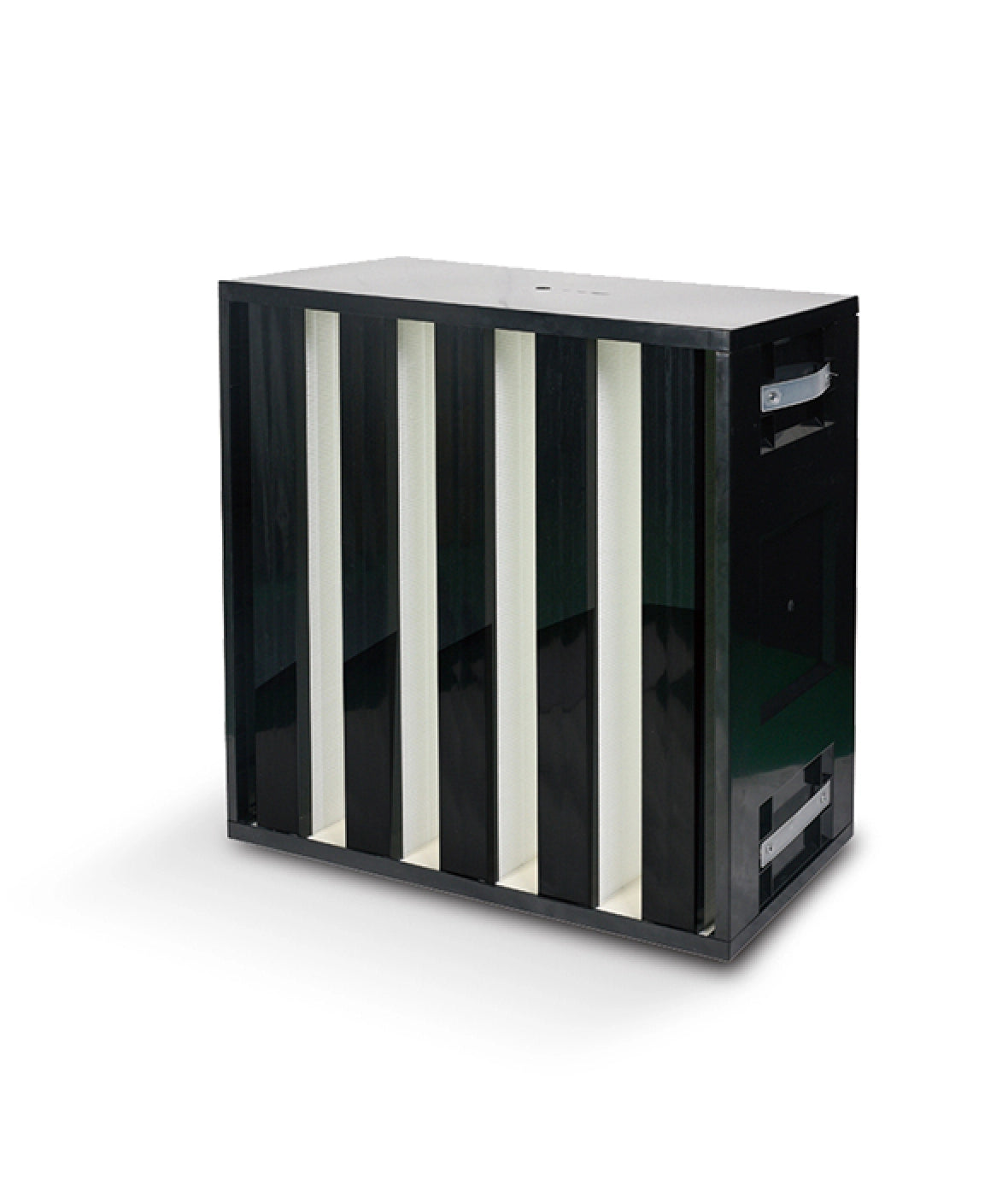

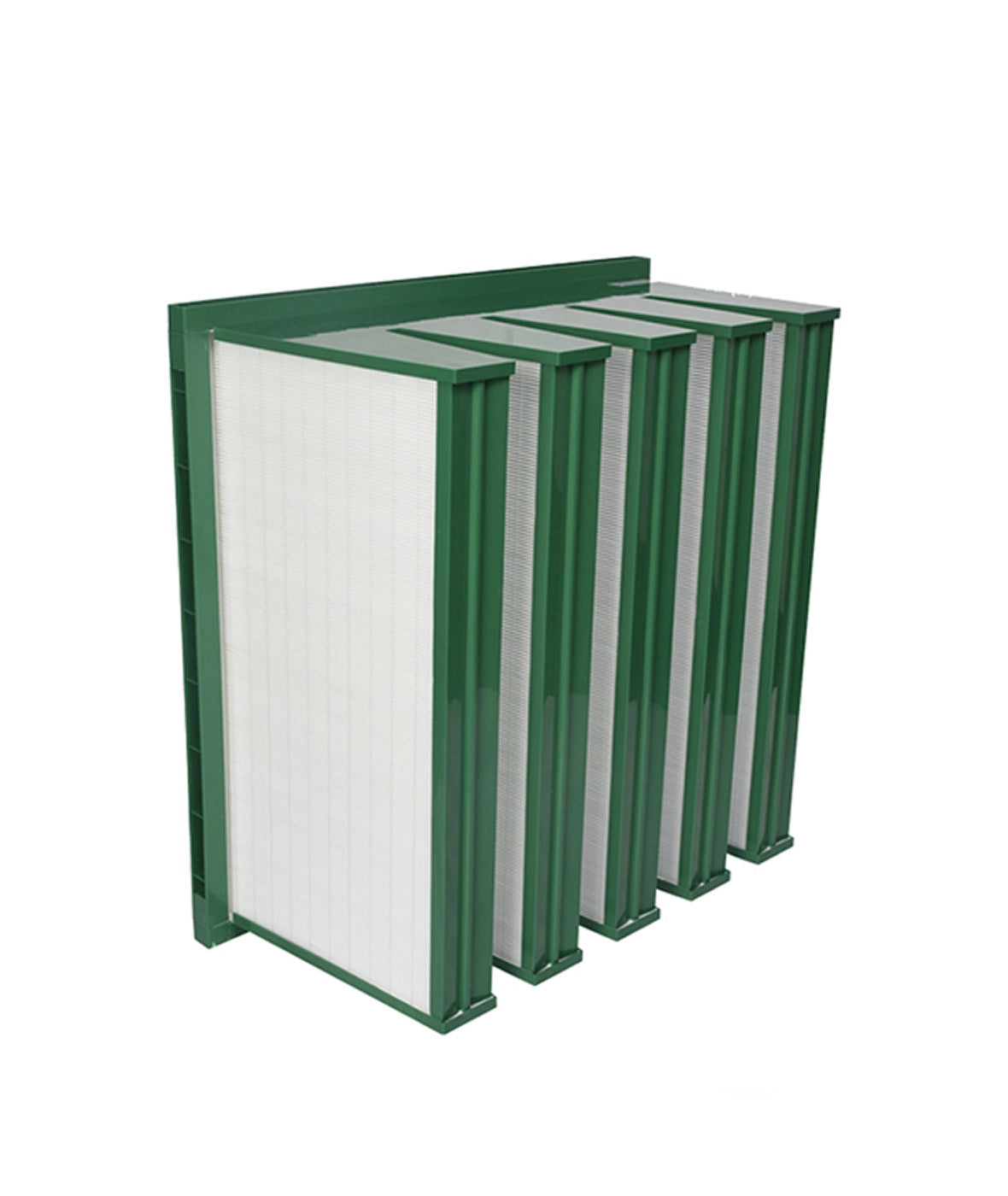

· Box type or V-bank type.
· Large filter area, suitable for large volume of air.
· F7-H14 are available.

Get a Free Quote

Standard Size And Parameter：

Model L×W×D Rated Airflow（m3/h） Initial pressure drop（Pa）
/ / / Arrestance F7@0.4um 80%≤E<90% Efficiency F8@0.4um 90%≤E<95% Efficiency E10@MPPS 85%≤E<95% Efficiency E12@MPPS 99.5%≤E<99.95% Efficiency H13@MPPS 99.95%≤E<99.995%
5VWGB592.592-292 592×592×292 3000 60 70 110 160 220
4VWGB592.592-292 592×592×292 2400
4VWGB287.592-292 287×592×292 1200
6VXWGB610.610-292 610×610×292 3400
5VXWGB610.610-292 610×610×292 3000
4VXWGB610.610-292 610×610×292 2400
4VXWGB305.610-292 305×592×292 1200
